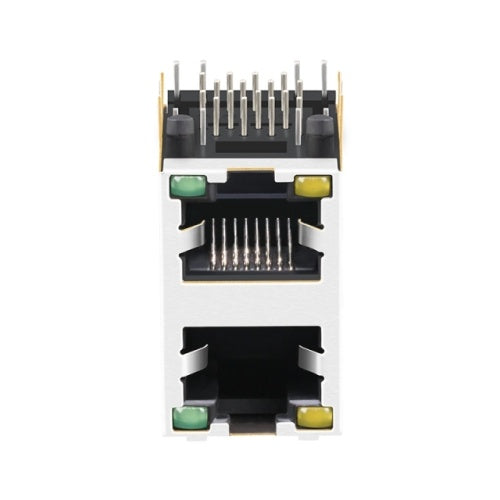

• 2x1 RJ45 Modular Jack Connector without Transformer Tab Both - TWE217XBHNL - Main View

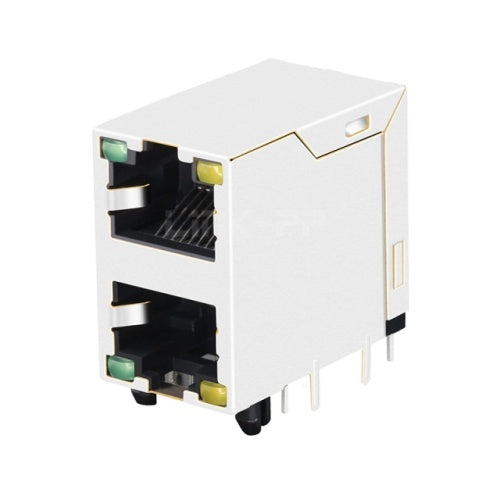

  • 2x1 RJ45 Modular Jack Connector without Transformer Tab Both - TWE217XBHNL - Second View

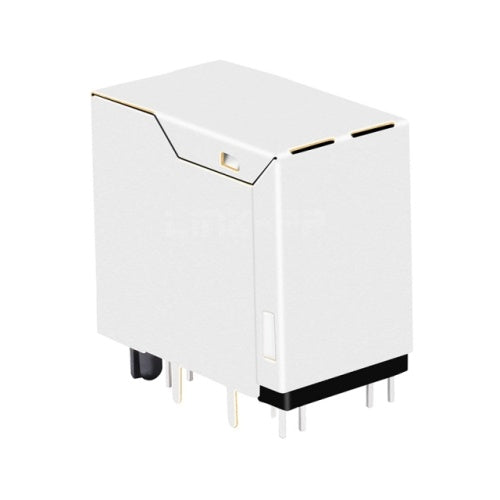

  • 2x1 RJ45 Modular Jack Connector without Transformer Tab Both - TWE217XBHNL - Third View
1 3

TWE217XBHNL、2x1ポートイーサネットRJ45、トランスフォーマータブなし、両方にグリーン/イエローLED

  • X Multiple: XMD-9763-1A1A10A-241との互換性
  • 複数の業界標準に準拠し、信頼性の高い効率的な使用を確保
  • エントランスガードシステム、SMPS、ルーター、スイッチに最適
  • 注文数量と仕様によって0.10ドルから3.00ドルUSDの価格設定で、大量注文の場合はバルク割引あり

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
詳細を表示する

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x1
Latch Type Both
LED Green/ Yellow
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.108/ 28.15
Product Width (Inches/mm) 0.650/ 16.50
Product Height (Inches/mm) 1.00/ 25.40
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

主要ブランドRJ45ジャックのコスト効率の高い代替品

主要コネクタブランドの長いリードタイムや高コストにお困りですか？当社は、TE、Molex、Amphenol、Wurthの標準モジュラージャックの高品質なドロップイン交換品を提供しています。当社のコネクタは、業界標準のフットプリントとパフォーマンス仕様に適合し、より競争力のある価格で提供されます。

フラッシュ、3µ"、6µ"、15µ"、30µ"、50µ"までの金メッキ
図面を共有して同等品を見つける
台湾での短納期と安定した製造
接触抵抗と絶縁完全性を100%テスト済み
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the X Multiple XMD-9763-1A1A10A-241?
The TWE217XBHNL from TeleWire Technology cross-references to the X Multiple XMD-9763-1A1A10A-241 and to LINK-PP LPJE106XBHNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TWE217XBHNL be built to a different configuration?
Yes. The standard TWE217XBHNL ships with Green/ Yellow LEDs and latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches X Multiple XMD-9763-1A1A10A-241.
How do I qualify the TWE217XBHNL as a second source?
Request a sample of the TWE217XBHNL and the mechanical drawing from TeleWire Technology, then check the footprint against the X Multiple XMD-9763-1A1A10A-241 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
