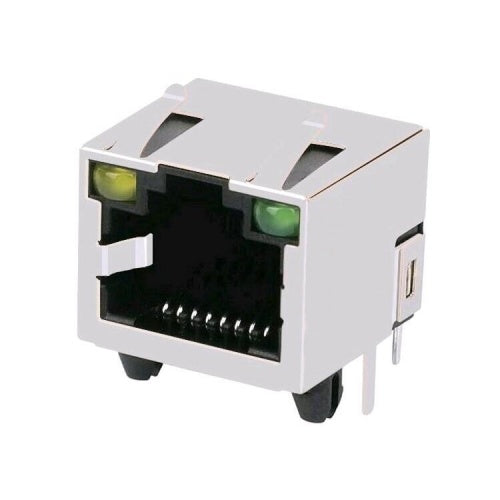

• RJ45 Modular Jack Connector without Transformer Tab Up - TWE212AGNL2 - Main View

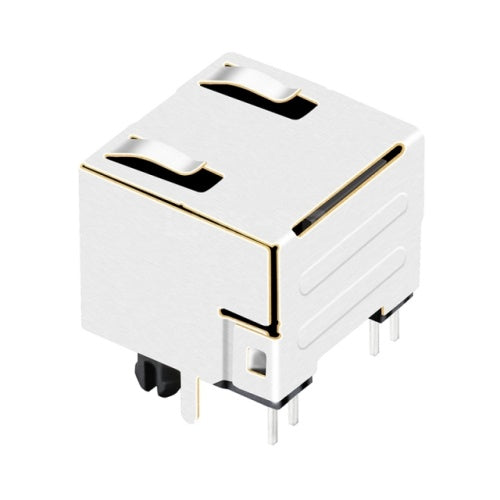

  • RJ45 Modular Jack Connector without Transformer Tab Up - TWE212AGNL2 - Second View
  • RJ45 Modular Jack Connector without Transformer Tab Up - TWE212AGNL2 - Third View
1 3

TWE212AGNL、トランスフォーマータブなしのイーサネットRJ45、イエロー/グリーンLED付き

  • アンフェノール: RJHSE5481
    TE/ Tyco: 6116173-1
    UDE: RT-TGLED
    WE: 615008137421に対応
  • 信頼性の高い効率的な使用を保証する複数の業界標準に準拠
  • インターコム、産業用PC、ルーター、スイッチに最適
  • 注文数量と仕様によって0.10ドルから3.00ドルの価格範囲で、大量注文の場合はバルクディスカウントあり

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
詳細を表示する

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Up
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.620/ 15.75
Product Width (Inches/mm) 0.640/ 16.25
Product Height (Inches/mm) 0.516/ 13.10
Temperature -40℃ ~ 85℃
Compatible Brands Amphenol, TE/ Tyco, UDE, WE

Related jacks

Same family, different latch, LED or plating option.

主要ブランドRJ45ジャックのコスト効率の高い代替品

主要コネクタブランドの長いリードタイムや高コストにお困りですか？当社は、TE、Molex、Amphenol、Wurthの標準モジュラージャックの高品質なドロップイン交換品を提供しています。当社のコネクタは、業界標準のフットプリントとパフォーマンス仕様に適合し、より競争力のある価格で提供されます。

フラッシュ、3µ"、6µ"、15µ"、30µ"、50µ"までの金メッキ
図面を共有して同等品を見つける
台湾での短納期と安定した製造
接触抵抗と絶縁完全性を100%テスト済み
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Amphenol RJHSE5481?
The TWE212AGNL from TeleWire Technology cross-references to the Amphenol RJHSE5481 and to LINK-PP LPJE101AGNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWE212AGNL replace?
The TWE212AGNL cross-references to Amphenol RJHSE5481; Amphenol RJS-A06-12-YG-35; TE Connectivity 6116173-1; UDE RT-TGLED; Würth Elektronik 615008137421, and to LINK-PP LPJE101AGNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWE212AGNL as a second source?
Request a sample of the TWE212AGNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Amphenol RJHSE5481 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
