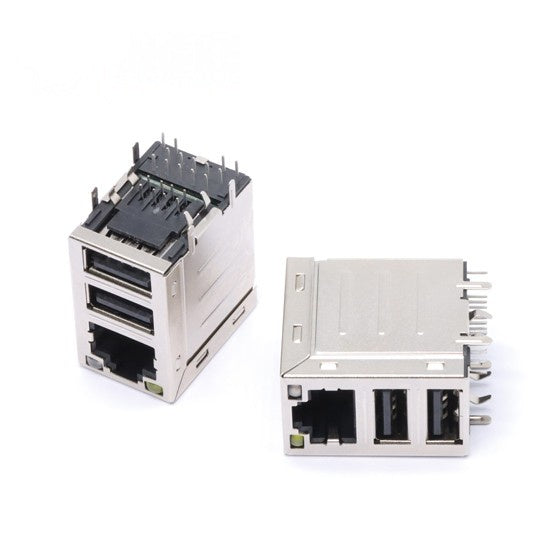

• TWU6313BSNL, 1000 Base RJ45 Modular Jack with Dual USB with Transformer Tab Up with Yellow/ Orange&Green Led - side view
  • TWU6313BSNL, 1000 Base RJ45 Modular Jack with Dual USB with Transformer Tab Up with Yellow/ Orange&Green Led - front view
  • TWU6313BSNL, 1000 Base RJ45 Modular Jack with Dual USB with Transformer Tab Up with Yellow/ Orange&Green Led - back view
1 3

TWU6313BSNL 10/100/1000 Base-T USB Combo RJ45 MagJack, Tab Up, Yellow/ Orange&Green LED

The TeleWire Technology TWU6313BSNL is a 10/100/1000 Base-T with USB shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • UDE RU1-171A9WGA — the TWU6313BSNL cross-references to this part.
  • UDE RU1-171A9WGF — a further published equivalent on the same footprint.
  • LINK-PP LPJU5202BSNL — same footprint, sourced outside mainland China.

Selection Notes

  • RJ45 with dual USB — one cut-out carries network and dual USB ports.
  • 10/100/1000 Base-T — the rate the internal transformer is wound for.
  • Yellow/ Orange&Green LEDs — indicated condition set by the host PHY design.
  • Shielded shell without EMI fingers — shield returns via board ground, not the bezel.

Typical application: bench and rack equipment that needs a service USB port beside the Ethernet jack.

Pricing for the TWU6313BSNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWU6313BSNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports Single Port with Dual USB
Speed 10/100/1000 Base-T
Latch Type Up
LED Yellow/ Orange&Green
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.079/ 27.40
Product Width (Inches/mm) 0.745/ 18.92
Product Height (Inches/mm) 1.217/ 30.90
Temperature 0℃ ~ 70℃
Compatible Brands UDE

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the UDE RU1-171A9WGA?
The TWU6313BSNL from TeleWire Technology cross-references to the UDE RU1-171A9WGA and to LINK-PP LPJU5202BSNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWU6313BSNL replace?
The TWU6313BSNL cross-references to UDE RU1-171A9WGA; UDE RU1-171A9WGF, and to LINK-PP LPJU5202BSNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWU6313BSNL as a second source?
Request a sample of the TWU6313BSNL and the mechanical drawing from TeleWire Technology, then check the footprint against the UDE RU1-171A9WGA on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
