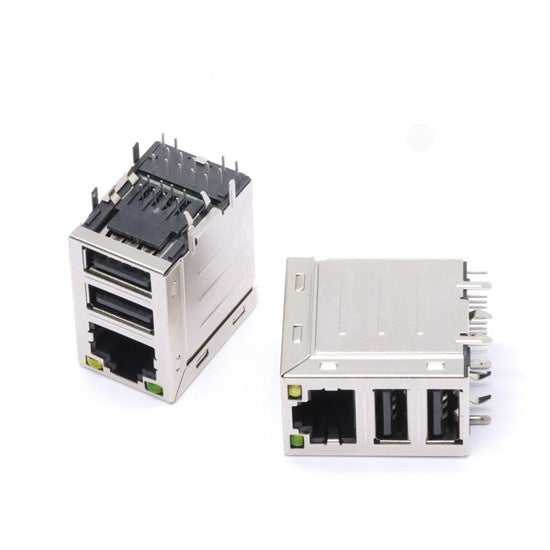

• TWU6110B39NL, 100 Base RJ45 Modular Jack with Dual USB with Transformer Tab Up with Green/ Yellow Led - side view
  • TWU6110B39NL, 100 Base RJ45 Modular Jack with Dual USB with Transformer Tab Up with Green/ Yellow Led - front view
  • RJ45 jack connector with Dual USB No transformer Tab up - Yellow/ Green Led - back view
1 3

TWU6110B39NL 10/100 Base-T USB Combo RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TWU6110B39NL is a 10/100 Base-T with USB shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse C893-1AX1-E1 — the TWU6110B39NL cross-references to this part.
  • Pulse JW0-0009NL — a further published equivalent on the same footprint.
  • LINK-PP LPJU5009B28NL — same footprint, sourced outside mainland China.

Selection Notes

  • RJ45 with dual USB — one cut-out carries network and dual USB ports.
  • 10/100 Base-T — the transformer inside is specified for this rate.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.

Typical application: bench and rack equipment that needs a service USB port beside the Ethernet jack.

Pricing for the TWU6110B39NL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWU6110B39NL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports Single Port with Dual USB
Speed 10/ 100 Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.079/ 27.40
Product Width (Inches/mm) 0.736/ 18.70
Product Height (Inches/mm) 1.240/ 31.50
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse, Pulse

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse C893-1AX1-E1?
The TWU6110B39NL from TeleWire Technology cross-references to the Bel Fuse C893-1AX1-E1 and to LINK-PP LPJU5009B28NL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWU6110B39NL replace?
The TWU6110B39NL cross-references to Bel Fuse C893-1AX1-E1; Pulse JW0-0009NL, and to LINK-PP LPJU5009B28NL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWU6110B39NL as a second source?
Request a sample of the TWU6110B39NL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse C893-1AX1-E1 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
