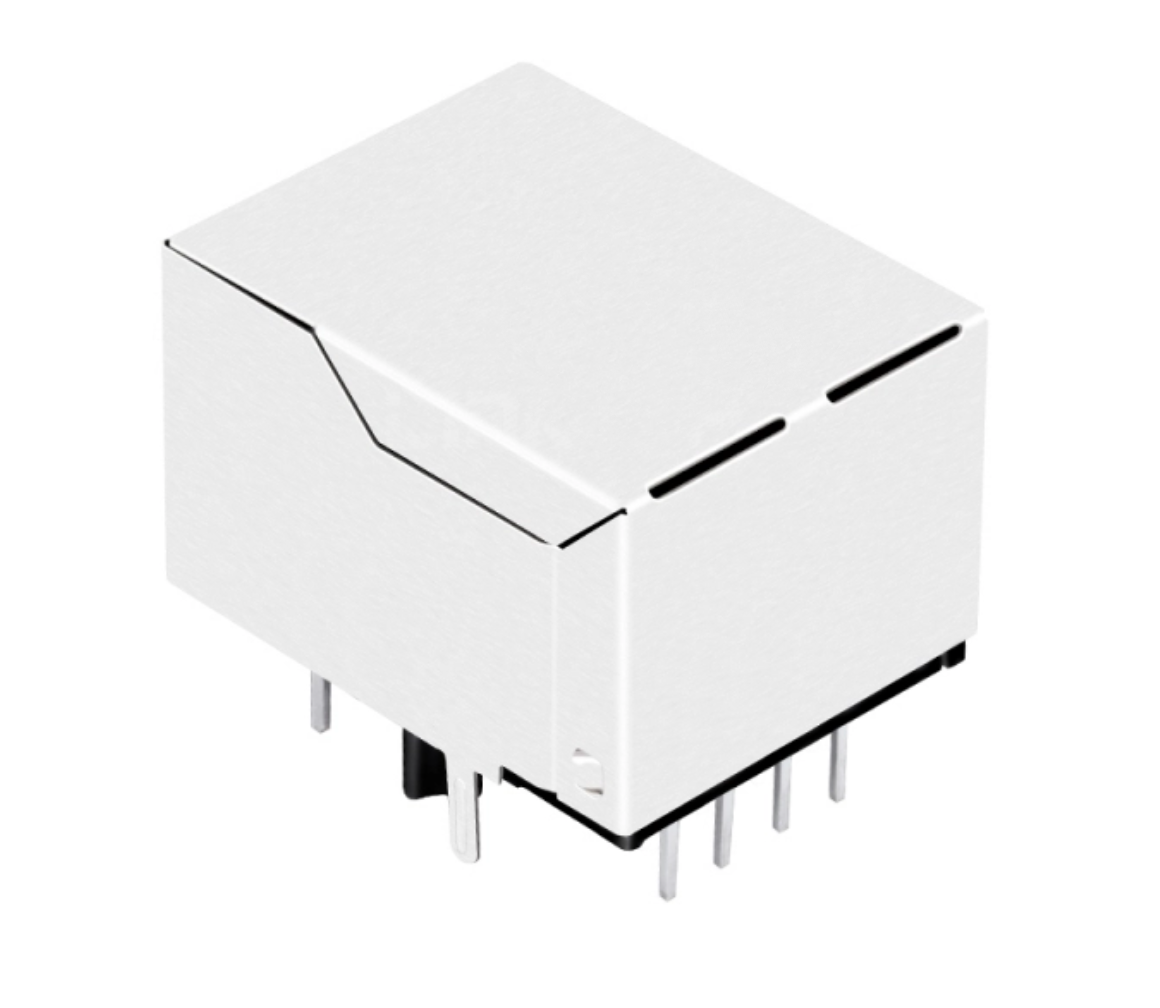

• RJ45 jack connector without transformer Tab Down - with Yellow/ Green LEDs - Main View
  • RJ45 jack connector without transformer Tab Down - with Yellow/ Green LEDs - Second View
  • RJ45 jack connector without transformer Tab Down - with Yellow/ Green LEDs - Third View
1 3

TWE08539935211DL3 RJ45 Jack, Tab Down, Yellow/ Green LED

The TeleWire Technology TWE08539935211DL3 is a shielded RJ45 jack. It is a TeleWire Technology original design, manufactured in Taiwan.

Design Origin

  • TeleWire Technology original design — tooled and manufactured in Taiwan.
  • Send your footprint — the engineering team will confirm mechanical compatibility.

Selection Notes

  • Yellow/ Green LEDs — driven from the host; link and activity mapping is yours.
  • −40 °C to +85 °C — beyond what a commercial-grade jack is rated for.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.
  • No integrated magnetics — pair it with the discrete transformer your PHY vendor specifies.

Typical application: industrial gateways and factory-floor equipment rated beyond the commercial range.

Pricing for the TWE08539935211DL3 ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE08539935211DL3 on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Down
LED Yellow/ Green
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.835/ 21.20
Product Width (Inches/mm) 0.626/ 15.90
Product Height (Inches/mm) 0.539/ 13.70
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWE08539935211DL3?
The TWE08539935211DL3 is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWE08539935211DL3 be built to a different configuration?
Yes. The standard TWE08539935211DL3 ships with Yellow/ Green LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE08539935211DL3 as a second source?
Request a sample of the TWE08539935211DL3 and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
