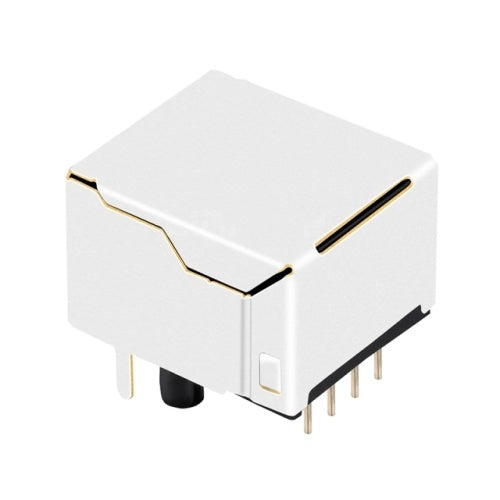

• RJ45 Modular Jack Connector without Transformer Tab Down - TWE291XDNL - Main View
  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE291XDNL - Second View
  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE291XDNL - Third View
1 3

TWE2913DNL RJ45 Jack, Tab Down, No LEDs

The TeleWire Technology TWE2913DNL is a shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • TE Connectivity 1-6609212-3 — the TWE2913DNL cross-references to this part.
  • LINK-PP LPJEF1802DNL — same footprint, sourced outside mainland China.

Selection Notes

  • −40 °C to +85 °C — industrial range, not the commercial 0-to-70 grade.
  • No LEDs — no light pipes to align against the panel cut-out.
  • Shielded shell without EMI fingers — grounding becomes a layout decision, not a mechanical one.
  • No integrated magnetics — pair it with the discrete transformer your PHY vendor specifies.

Typical application: process and utility equipment installed in unconditioned plant rooms.

Pricing for the TWE2913DNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE2913DNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Down
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.724/ 18.40
Product Width (Inches/mm) 0.630/ 16.00
Product Height (Inches/mm) 0.481/ 12.23
Temperature -40℃ ~ 85℃
Compatible Brands TE/ Tyco

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the TE Connectivity 1-6609212-3?
The TWE2913DNL from TeleWire Technology cross-references to the TE Connectivity 1-6609212-3 and to LINK-PP LPJEF1802DNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TWE2913DNL be built to a different configuration?
Yes. The standard TWE2913DNL ships with a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches TE Connectivity 1-6609212-3.
How do I qualify the TWE2913DNL as a second source?
Request a sample of the TWE2913DNL and the mechanical drawing from TeleWire Technology, then check the footprint against the TE Connectivity 1-6609212-3 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
