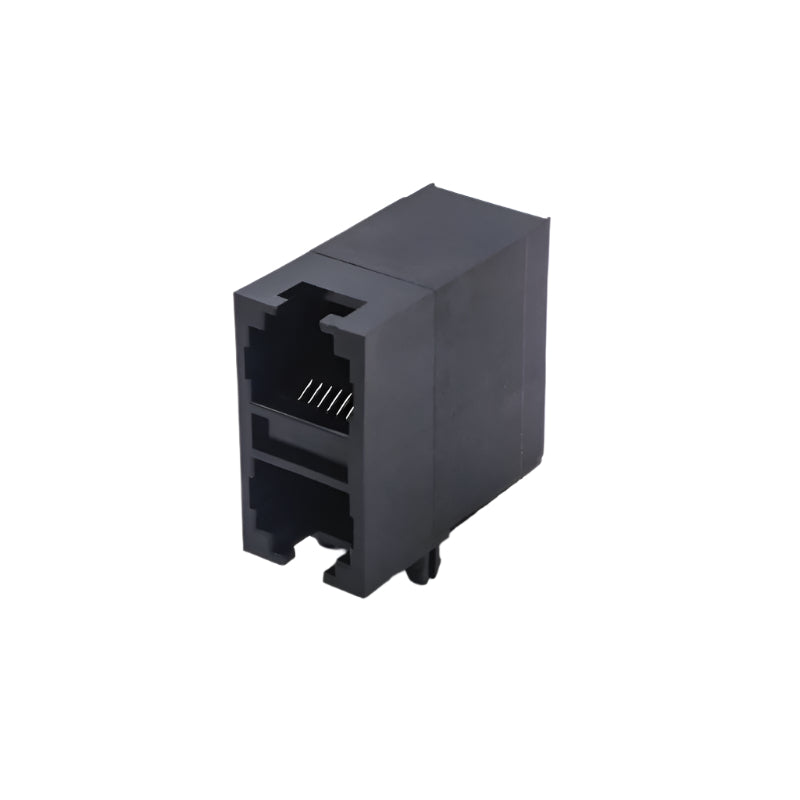

• 2x1 Dual-port RJ11 6P6C modular jack without LED, Model TWE084415, front view

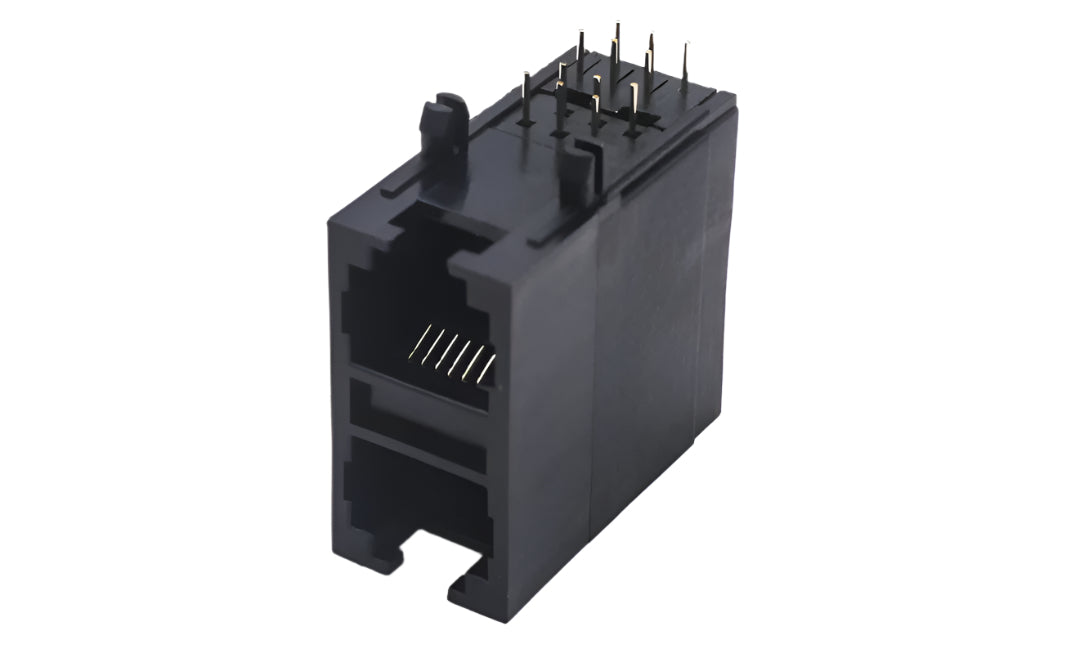

  • 2x1 Dual-port RJ11 6P6C modular jack without LED, Model TWE084415, sdie view

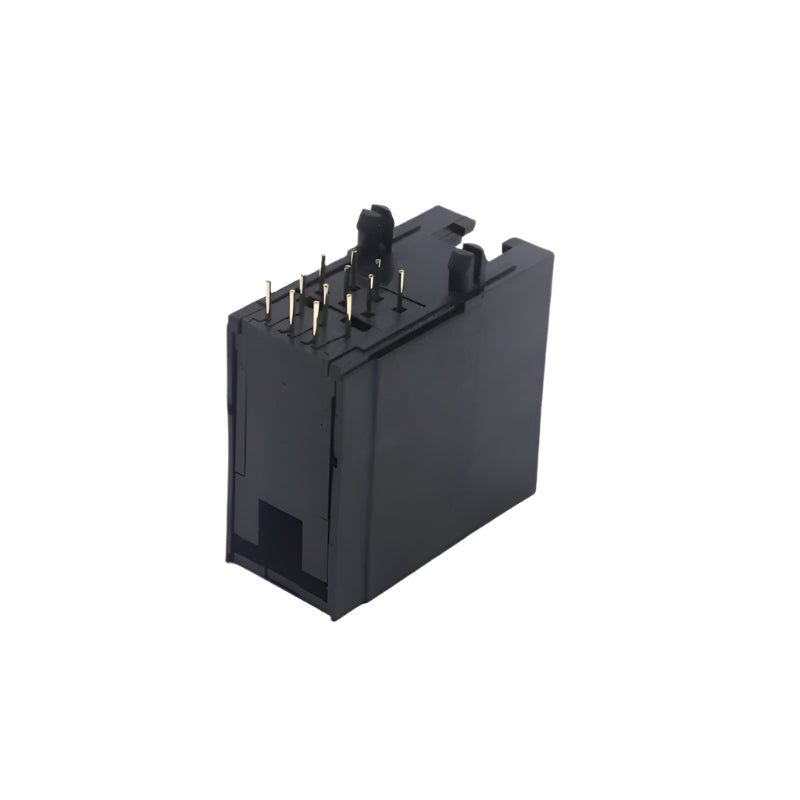

  • 2x1 Dual-port RJ11 6P6C modular jack without LED, Model TWE084415, back view
1 3

TWE084415 2x1 Port RJ11 Jack, Tab Both

The TeleWire Technology TWE084415 is a 2x1 unshielded RJ11 jack. It is a TeleWire Technology original design, manufactured in Taiwan.

Design Origin

  • TeleWire Technology original design — tooled and manufactured in Taiwan.
  • Send your footprint — the engineering team will confirm mechanical compatibility.

Selection Notes

  • 2x1 port array — 2 ports on one shell, saving panel width.
  • −40 °C to +80 °C — rated for unheated cabinets across the seasonal swing.
  • Unshielded (UTP) — for designs where the chassis carries the shield path.
  • Tabs in both orientations — the two rows latch in opposite directions.

Typical application: multi-port industrial switches where several drops leave through one bezel.

Pricing for the TWE084415 ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE084415 on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 6P6C(RJ11)
Ports 2x1
Latch Type Both
Shielding Unshielded
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.090/ 27.70
Product Width (Inches/mm) 0.648/ 16.45
Product Height (Inches/mm) 0.969/ 24.60
Temperature -40℃ ~ 80℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWE084415?
The TWE084415 is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWE084415 be built to a different configuration?
Yes. The standard TWE084415 ships with latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE084415 as a second source?
Request a sample of the TWE084415 and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
