• 2x1 RJ45 jack connector without transformer - No LEDs - Main View

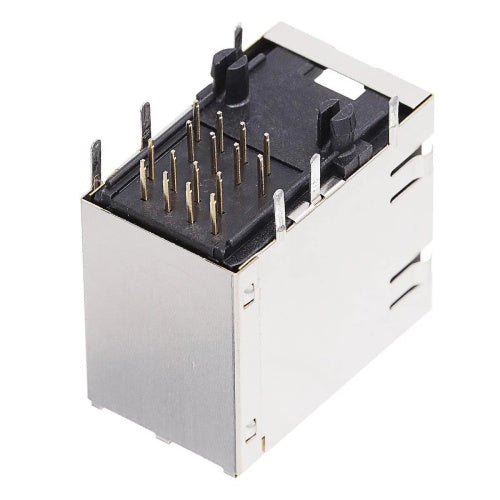

  • 2x1 RJ45 jack connector without transformer - No LEDs - Second View

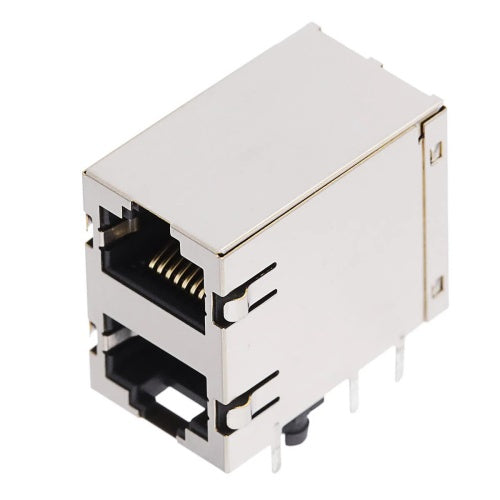

  • 2x1 RJ45 jack connector without transformer - No LEDs - Third View
1 3

TWE084299253AAD 2x1 Port RJ45 Jack, Tab Both, No LEDs

The TeleWire Technology TWE084299253AAD is a 2x1 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • Amphenol RJE111881410H — the TWE084299253AAD cross-references to this part.
  • Würth Elektronik 615016240521 — a further published equivalent on the same footprint.
  • LINK-PP LPJE17208CNL — same footprint, sourced outside mainland China.

Selection Notes

  • 2x1 port array — 2 ports on one shell, saving panel width.
  • −40 °C to +85 °C — rated for unheated cabinets across the seasonal swing.
  • No LEDs — the full front aperture stays clear for the mating plug.
  • No integrated magnetics — pair it with the discrete transformer your PHY vendor specifies.

Typical application: multi-port industrial switches where several drops leave through one bezel.

Pricing for the TWE084299253AAD ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE084299253AAD on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg

Product Drawing

TWE084299253AAD mechanical drawingDimensions, footprint and pin-out
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x1
Latch Type Both
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.113/ 28.60
Product Width (Inches/mm) 0.679/ 17.25
Product Height (Inches/mm) 0.996/ 25.30
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, Wurth, Halo, Bel Fuse, and Pulse. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Amphenol RJE111881410H?
The TWE084299253AAD from TeleWire Technology cross-references to the Amphenol RJE111881410H and to LINK-PP LPJE17208CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWE084299253AAD replace?
The TWE084299253AAD cross-references to Amphenol RJE111881410H; Würth Elektronik 615016240521, and to LINK-PP LPJE17208CNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWE084299253AAD as a second source?
Request a sample of the TWE084299253AAD and the mechanical drawing from TeleWire Technology, then check the footprint against the Amphenol RJE111881410H on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
