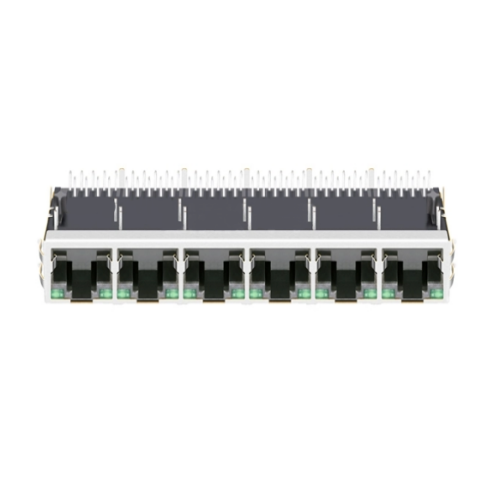

• TW6J79962AWNL, 1000 Base Gigabit Magjack 1x6 Port RJ45 Tab Up with Green/ Green Led - side view

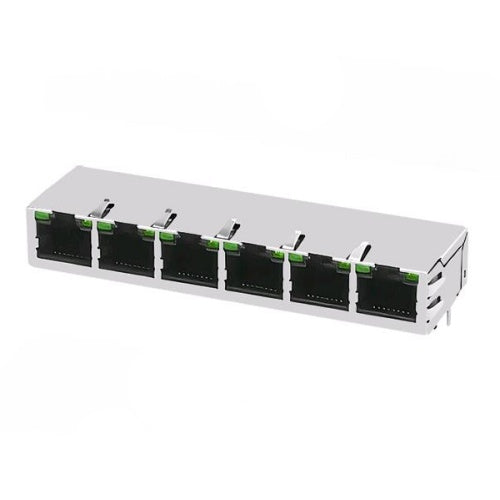

  • TW6J79962AWNL, 1000 Base Gigabit Magjack 1x6 Port RJ45 Tab Up with Green/ Green Led - front view

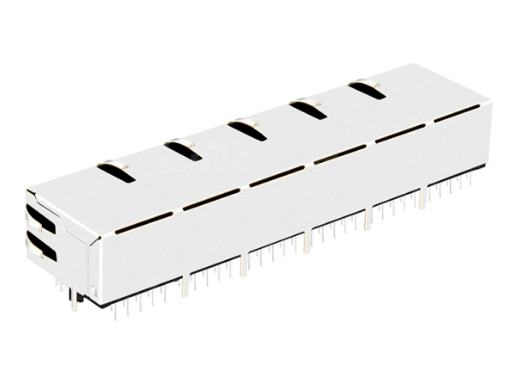

  • TW6J79962AWNL, 1000 Base Gigabit Magjack 1x6 Port RJ45 Tab Up with Green/ Green Led - back view
1 3

TW6J79962AWNL 1000 Base-T 1x6 Port RJ45 Jack, Tab Up, Green/ Green LED

The TeleWire Technology TW6J79962AWNL is a 1000 Base-T 1x6 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • Pulse JG0-0027NL — the TW6J79962AWNL cross-references to this part.
  • LINK-PP LPJG68851AWNL — same footprint, sourced outside mainland China.

Selection Notes

  • 1x6 port array — 6 ports on one shell, saving panel width.
  • 1000 Base-T — the rate the contact geometry is specified to.
  • Green/ Green LEDs — indicated condition set by the host PHY design.
  • EMI grounding fingers — chassis bond made at the bezel, not through the PCB.

Typical application: switch and router line cards, where port density per panel inch drives the design.

Pricing for the TW6J79962AWNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW6J79962AWNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x6
Speed 1000 Base-T
Latch Type Up
LED Green/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.996/ 25.30
Product Width (Inches/mm) 3.438/ 87.33
Product Height (Inches/mm) 0.535/ 13.60
Temperature 0℃ ~ 70℃
Compatible Brands Pulse

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Pulse JG0-0027NL?
The TW6J79962AWNL from TeleWire Technology cross-references to the Pulse JG0-0027NL and to LINK-PP LPJG68851AWNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW6J79962AWNL be built to a different configuration?
Yes. The standard TW6J79962AWNL ships with Green/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Pulse JG0-0027NL.
How do I qualify the TW6J79962AWNL as a second source?
Request a sample of the TW6J79962AWNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Pulse JG0-0027NL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
