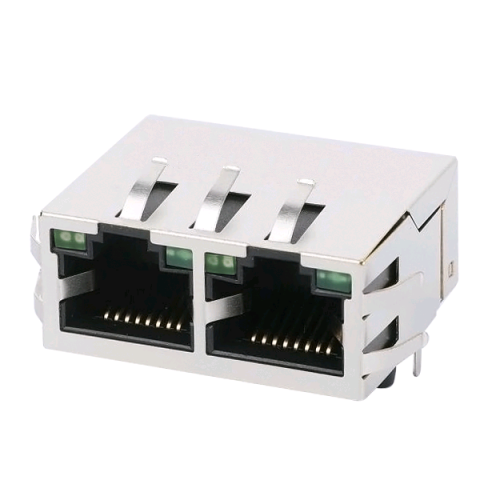

  • TW2J392554AWNLV, 100 Base Modular Jack 1x2 Port RJ45 Tab Up with Green/ Green Led - front view

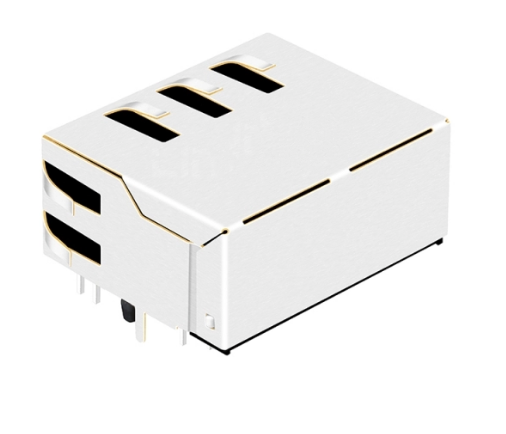

  • TW2J392554AWNLV, 100 Base Modular Jack 1x2 Port RJ45 Tab Up with Green/ Green Led - back view
1 3

TW2J392554AWNLV 10/100 Base-T 1x2 Port RJ45 Jack, Tab Up, Green/ Green LED

The TeleWire Technology TW2J392554AWNLV is a 10/100 Base-T 1x2 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse 0875-1G2T-AP — the TW2J392554AWNLV cross-references to this part.
  • LINK-PP LPJ281443AWNLV — same footprint, sourced outside mainland China.

Selection Notes

  • 1x2 port array — 2 ports on one shell, saving panel width.
  • 10/100 Base-T — the interface rate this housing is qualified for.
  • Green/ Green LEDs — wired to the host PHY, not to internal logic.
  • EMI grounding fingers — shield path closes against the chassis bezel.

Typical application: patching and distribution boards that group ports behind a single opening.

Pricing for the TW2J392554AWNLV ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW2J392554AWNLV on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x2
Speed 10/ 100 Base-T
Latch Type Up
LED Green/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.00/ 25.25
Product Width (Inches/mm) 1.238/ 30.5
Product Height (Inches/mm) 0.535/ 13.65
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse 0875-1G2T-AP?
The TW2J392554AWNLV from TeleWire Technology cross-references to the Bel Fuse 0875-1G2T-AP and to LINK-PP LPJ281443AWNLV. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW2J392554AWNLV be built to a different configuration?
Yes. The standard TW2J392554AWNLV ships with Green/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Bel Fuse 0875-1G2T-AP.
How do I qualify the TW2J392554AWNLV as a second source?
Request a sample of the TW2J392554AWNLV and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse 0875-1G2T-AP on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
