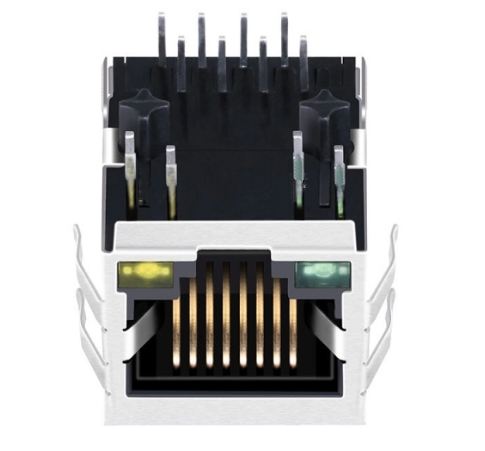

• RJ45 jack connector with Gigabit transformer tab down - with green/ yellow LEDs - Main View

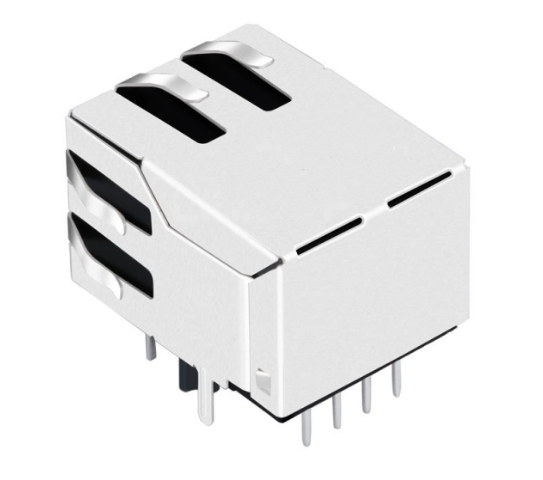

  • TW5395GENL, 10/100 Base Rectifier Bridge RJ45 with Transformer with PoE Tab Down with Green/Yellow Led - TeleWire Technology
  • TW5395GENL, 10/100 Base Rectifier Bridge RJ45 with Transformer with PoE Tab Down with Green/Yellow Led - TeleWire Technology
1 3

TW5395GENL, Puente Rectificador RJ45 de 10/100 Base con Transformador con Pestaña PoE Hacia Abajo con LED Verde/Amarillo

  • El dispositivo de alto rendimiento admite velocidades de 10/100 Base-T para una conectividad Ethernet rápida
  • Características del puente rectificador con transformador integrado optimizado para implementaciones PoE
  • Configuración de pestaña hacia abajo con indicadores LED verde/amarillo para un monitoreo de estado integral
  • Cumple con múltiples estándares de la industria, asegurando un uso confiable y eficiente
  • El diseño del puente rectificador asegura un suministro de energía estable para los dispositivos habilitados para PoE
  • Los precios oscilan entre $0.50 y $3.00 USD, dependiendo de la cantidad de pedido y las especificaciones, y hay descuentos por volumen disponibles para pedidos de gran volumen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver todos los detalles

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.25
Product Width (Inches/mm) 0.627/ 15.93
Product Height (Inches/mm) 0.524/ 13.30
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Alternativas Rentables a las Principales Marcas de Jacks RJ45

¿Se enfrenta a largos plazos de entrega o altos costos de las principales marcas de conectores? Ofrecemos reemplazos de alta calidad y directos para jacks modulares estándar de TE, Molex, Amphenol y Wurth. Nuestros conectores coinciden con las huellas estándar de la industria y las especificaciones de rendimiento a un precio más competitivo.

Desde Flash, 3µ", 6µ", 15µ", 30µ", hasta 50µ" de baño de oro
Comparta el dibujo para obtener una coincidencia equivalente
Cortos plazos de entrega y fabricación constante en Taiwán
100% probado para resistencia de contacto e integridad de aislamiento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJ4284GENL?
Yes. The TW5395GENL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJ4284GENL. LINK-PP manufactures in mainland China; the TW5395GENL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW5395GENL be built to a different configuration?
Yes. The standard TW5395GENL ships with Green/ Yellow LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW5395GENL as a second source?
Request a sample of the TW5395GENL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJ4284GENL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
