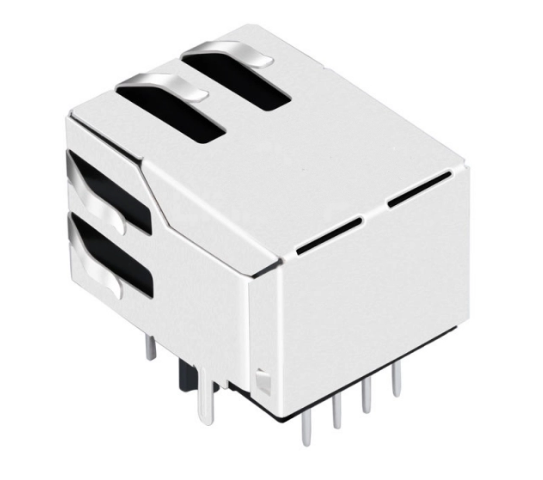

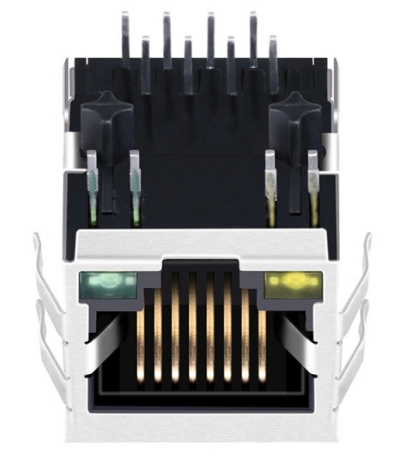

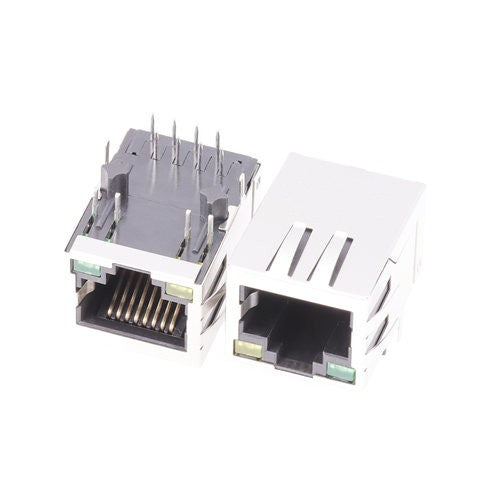

TW5625DNL, 10/100 Base RJ45 con Transformador con Pestaña PoE Abajo LED Amarillo/Verde

  • Compatible con
    XFMRS: XFAVERS-CLXU1-2MS
  • El dispositivo de alto rendimiento admite velocidades de 10/100 Base-T
  • Cumple con múltiples estándares de la industria, lo que garantiza un uso confiable y eficiente
  • Perfecto para Sistema de monitoreo, PC industrial, concentrador y medidores inteligentes
  • Los precios oscilan entre $0.50 y $3.00 USD, dependiendo de la cantidad del pedido y las especificaciones, y hay descuentos por volumen disponibles para pedidos de gran volumen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver todos los detalles

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.838/ 21.30
Product Width (Inches/mm) 0.626/ 15.90
Product Height (Inches/mm) 0.528/ 13.40
Temperature -40℃ ~ 85℃
Compatible Brands XFMRS

Related jacks

Same family, different latch, LED or plating option.

Alternativas Rentables a las Principales Marcas de Jacks RJ45

¿Se enfrenta a largos plazos de entrega o altos costos de las principales marcas de conectores? Ofrecemos reemplazos de alta calidad y directos para jacks modulares estándar de TE, Molex, Amphenol y Wurth. Nuestros conectores coinciden con las huellas estándar de la industria y las especificaciones de rendimiento a un precio más competitivo.

Desde Flash, 3µ", 6µ", 15µ", 30µ", hasta 50µ" de baño de oro
Comparta el dibujo para obtener una coincidencia equivalente
Cortos plazos de entrega y fabricación constante en Taiwán
100% probado para resistencia de contacto e integridad de aislamiento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the XFMRS XFAVERS-CLxu1-2MS?
The TW5625DNL from TeleWire Technology cross-references to the XFMRS XFAVERS-CLxu1-2MS and to LINK-PP LPJ4514GDNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW5625DNL be built to a different configuration?
Yes. The standard TW5625DNL ships with Yellow/ Green LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches XFMRS XFAVERS-CLxu1-2MS.
How do I qualify the TW5625DNL as a second source?
Request a sample of the TW5625DNL and the mechanical drawing from TeleWire Technology, then check the footprint against the XFMRS XFAVERS-CLxu1-2MS on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
