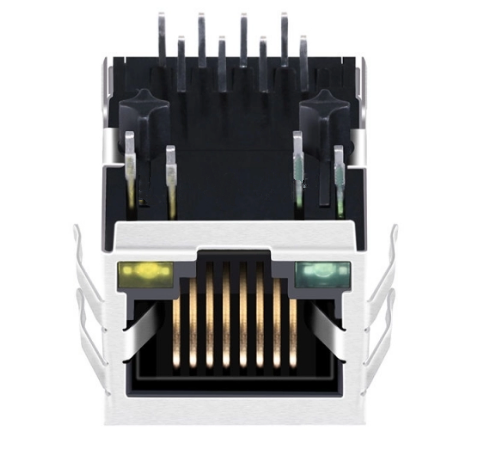

• RJ45 jack connector with Gigabit transformer tab down - with green/ yellow LEDs - Main View

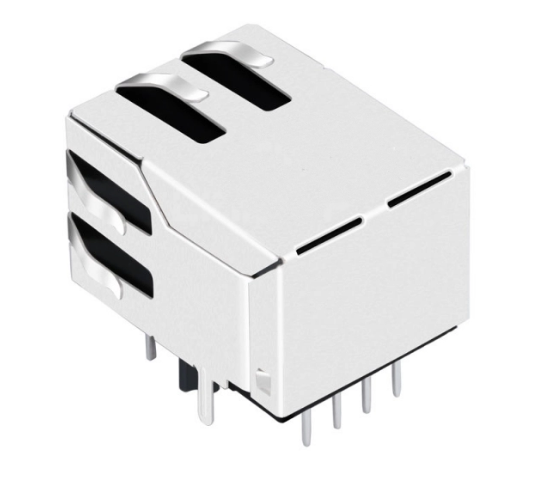

  • TW5625ENL, 10/100 Base RJ45 with Transformer with PoE+ Tab Down Green/Yellow Led - TeleWire Technology
  • TW5625ENL, 10/100 Base RJ45 with Transformer with PoE+ Tab Down Green/Yellow Led - TeleWire Technology
1 3

TW5625ENL, 10/100 Base RJ45 con Transformador con Pestaña PoE+ Abajo LED Verde/Amarillo

  • Compatible con XFMRS: XFVOIP5E-CLGY1-4MS, XFVOIP5E-CLXU1-4MS para una compatibilidad probada
  • El dispositivo de alto rendimiento admite velocidades de 10/100 Base-T para una conectividad Ethernet rápida
  • RJ45 con transformador integrado y soporte PoE+ para aplicaciones de dispositivos alimentados
  • Configuración de pestaña hacia abajo con indicadores LED verde/amarillo para el monitoreo de estado en tiempo real
  • Combina el rendimiento Ethernet rápido con la capacidad de entrega de energía PoE+
  • Los precios oscilan entre $0.50 y $3.00 USD, dependiendo de la cantidad de pedido y las especificaciones, y hay descuentos por volumen disponibles para pedidos de gran volumen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver todos los detalles

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE+
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.838/ 21.30
Product Width (Inches/mm) 0.626/ 15.90
Product Height (Inches/mm) 0.528/ 13.40
Temperature -40℃ ~ 85℃
Compatible Brands XFMRS

Related jacks

Same family, different latch, LED or plating option.

Alternativas Rentables a las Principales Marcas de Jacks RJ45

¿Se enfrenta a largos plazos de entrega o altos costos de las principales marcas de conectores? Ofrecemos reemplazos de alta calidad y directos para jacks modulares estándar de TE, Molex, Amphenol y Wurth. Nuestros conectores coinciden con las huellas estándar de la industria y las especificaciones de rendimiento a un precio más competitivo.

Desde Flash, 3µ", 6µ", 15µ", 30µ", hasta 50µ" de baño de oro
Comparta el dibujo para obtener una coincidencia equivalente
Cortos plazos de entrega y fabricación constante en Taiwán
100% probado para resistencia de contacto e integridad de aislamiento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the XFMRS XFVOIP5E-CLGY1-4MS?
The TW5625ENL from TeleWire Technology cross-references to the XFMRS XFVOIP5E-CLGY1-4MS and to LINK-PP LPJ4514GENL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW5625ENL replace?
The TW5625ENL cross-references to XFMRS XFVOIP5E-CLGY1-4MS; XFMRS XFVOIP5E-CLxu1-4MS, and to LINK-PP LPJ4514GENL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW5625ENL as a second source?
Request a sample of the TW5625ENL and the mechanical drawing from TeleWire Technology, then check the footprint against the XFMRS XFVOIP5E-CLGY1-4MS on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
