Custom LVDS Wire Harnesses
High-Bandwidth Internal Video Transmission
Transporting high-resolution video data across an internal chassis requires absolute precision. TeleWire Technology manufactures specialized Low-Voltage Differential Signaling (LVDS) and embedded DisplayPort (eDP) harnesses, delivering gigabit-speed data to LCD/OLED panels in medical imaging devices, gaming terminals, and industrial HMIs (Human-Machine Interfaces).
LVDS & eDP Integration Capabilities:
- Controlled Impedance: We precisely manage the twist rate of internal pairs (typically 100Ω differential impedance) to prevent signal reflection and ghosting on the display.
- Multi-Layer Shielding: High-speed data generates internal EMI. We utilize aluminum foil wrapping, conductive acetate tape, and grounded drain wires to isolate the video signal.
- Connector Versatility: Seamless integration with standard display headers including IPEX, JAE, and Hirose low-profile interconnects.
Looking for Custom Wire Harnesses & Cable Assembly ?
Submit your technical requirements and project details, and our engineering team will review your request and respond within 24 hours.
Supported Series & Part Numbers
We maintain extensive tooling and automated processing capabilities for the following industry-standard interconnects. If your specific part number is not listed, contact engineering for 1:1 cross-referencing.
| Connector Series | Pitch (mm / inch) | Key Part Numbers | Ideal Application |
|---|---|---|---|
| I-PEX CABLINE®-VS | 0.50mm (.020") |
20453-030T20453-040T20453-050T20455-030E20455-040E20455-050E
|
VESA standard eDP routing for high-resolution laptop displays, maintaining strict 100-ohm impedance. |
| I-PEX CABLINE®-CA | 0.40mm (.016") Micro-Coaxial |
20525-030E20525-040E20525-050E20525-060E20524-030T20524-040T
|
High-data-rate transmission (20 Gbps+) for narrow-bezel displays and high-end server backplanes. |
| I-PEX CABLINE®-UM | 0.40mm (.016") Ultra-Thin |
20877-030T20877-040T20879-030E20879-040E
|
Ultra-thin 4K/8K internal routing designed specifically to fit behind highly compact medical HMIs and tablets. |
| JAE FI-RE Series | 0.50mm (.020") |
FI-RE41HLFI-RE51HLFI-RE31HLFI-RE41CLFI-RE51CL
|
The global industry standard for high-speed LVDS transmission directly into LCD/OLED television controllers. |
| JAE FI-X Series | 1.00mm (.039") |
FI-X30HFI-X30HLFI-X20HFI-X30CFI-X20C
|
Highly robust LCD interface routing for industrial control panels, medical monitors, and POS systems. |
| JAE FI-E Series | 0.50mm (.020") |
FI-E30HFI-E30HLFI-E30C
|
Extremely compact LVDS transmission tailored for high-vibration laptop and portable consumer electronic displays. |
| KEL USL Series | 0.40mm (.016") |
USL00-20LUSL00-30LUSL00-40LUSLS20-30USLS20-40
|
Ultra-fine pitch micro-coaxial interconnects specifically engineered for high-resolution medical ultrasound and endoscopy imaging. |
| KEL SSL Series | 0.50mm (.020") |
SSL00-10L3SSL00-20L3SSL00-30L3SSL00-40L3SSL20-30SSL20-40
|
High-speed, highly reliable internal connections supporting V-by-One® HS and LVDS protocols in surveillance and broadcasting. |
| Hirose DF19 Series | 1.00mm (.039") Low Profile |
DF19G-14S-1CDF19G-20S-1CDF19G-30S-1CDF19-14P-1VDF19-20P-1V
|
Space-saving discrete wire and FPC routing for flat-panel displays, digital cameras, and navigation systems. |
| Hirose DF36 Series | 0.30mm (.012") |
DF36-15S-0.4VDF36-20S-0.4VDF36-25S-0.4VDF36-30S-0.4VDF36A-15S-0.4V
|
Microscopic, extreme-flex life routing passing through hinges in compact cameras and foldable mobile devices. |
| Hirose FX15 Series | 0.50mm (.020") LVDS |
FX15-31S-0.5SVFX15-41S-0.5SVFX15M-31P-CFX15M-41P-C
|
Zero-latency, high-bandwidth Low-Voltage Differential Signaling (LVDS) with enhanced ground planes for EMI reduction. |
-
Hirose DF14 1.25mm Pitch 20-Pin Double-Ended - LVDS Wire Harness
Regular price $0.50 USDRegular priceUnit price per -

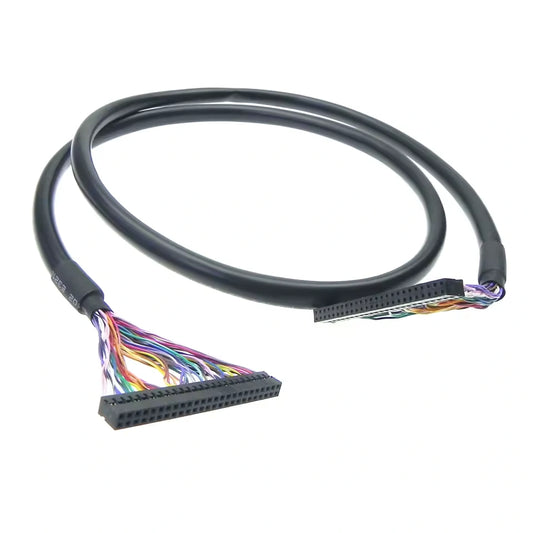

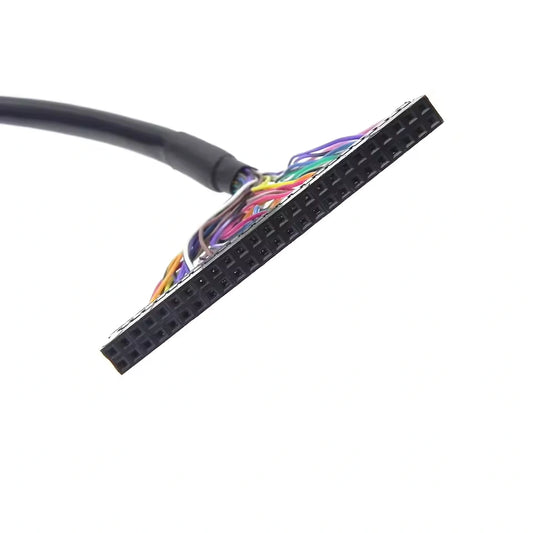

Dupont 2.54mm Pitch 50-Pin - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per -
Hirose DF13 to JAE FI-X 30-Pin - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per -
JAE FI-X to Hirose DF19 1.0mm Pitch 30-Pin - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per -
JAE FI-RE 0.5mm Pitch 51-Pin Male to Male - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per -
JAE FI-RE51S-HL 0.5mm Pitch 51-Pin - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per -
JAE FI-X Series 30-Pin - LVDS Wire Harness
Regular price $1.00 USDRegular priceUnit price per
Can't find the exact cable you need?
Our website lists only a fraction of our capabilities. We manufacture thousands of custom cable assemblies and wire harnesses not shown online. Upload your drawing or specs here, and we will build it for you.
Technical FAQs
Common questions from procurement and engineering teams.
What is the difference between an LVDS and an eDP internal display harness?
A: While both are used for high-speed video routing, eDP (embedded DisplayPort) supports much higher bandwidth and resolution (4K+) with fewer physical pins. LVDS is a legacy, highly robust standard typically used for 1080p and lower resolution industrial/medical HMIs.
How do you prevent screen flickering or ghosting in LVDS routing?
A: Flickering is caused by EMI (noise) or impedance mismatch. We eliminate this by engineering precise twisted-pair wires (to cancel out magnetic fields), applying conductive EMI shielding tape, and strictly controlling the 100-ohm differential impedance.
What connectors are typically used on your custom eDP wire harnesses?
A: High-speed eDP harnesses typically utilize ultra-fine micro-coaxial or discrete wire connectors from industry leaders like IPEX (e.g., CABLINE series), JAE, and Hirose to achieve low-profile routing on the back of the LCD panel.
What type of shielding do you use for custom eDP display cables?
A: To guarantee signal integrity at 4K+ resolutions, we utilize a combination of double-wrapped conductive aluminum mylar tape, tinned copper drain wires, and localized EMI absorber pads placed strategically near the connector headers.
Manufacturing Standards & Capabilities
ISO 9001 Certified Factory
TeleWire Technology operates under strict ISO 9001 Quality Management Systems. Every production run undergoes rigorous IQC (Incoming Quality Control) and IPQC (In-Process Quality Control) to ensure consistent, OEM-grade reliability for global supply chains.
IPC/WHMA-A-620 Compliance
Our assembly technicians adhere to IPC/WHMA-A-620 standards for cable and wire harness fabrication. We guarantee precision crimp height, pull-force retention, and strain relief integrity for high-vibration automotive and industrial environments.
100% Electrical Testing
Zero defect policy. 100% of finished assemblies undergo automated testing for continuity, shorts, and mis-wiring. For critical safety applications, we provide advanced VSWR testing, high-pot testing, and insertion force validation.
Custom Component Sourcing
We source genuine connectors from Amphenol, TE Connectivity, Molex, and JST, or provide cost-effective, high-quality equivalents to meet your BOM targets. Our engineering team supports rapid prototyping with low MOQs and fast turnaround times.
Have 2D or 3D drawings ready?
Talk to our engineering team for immediate design validation and DFM (Design for Manufacturing) support.
