• Hirose DF14 series 1.25mm pitch 20-pin double-ended LVDS Wire Harness
  • wire harness featuring dual 20-circuit Hirose DF14 interconnects
1 2

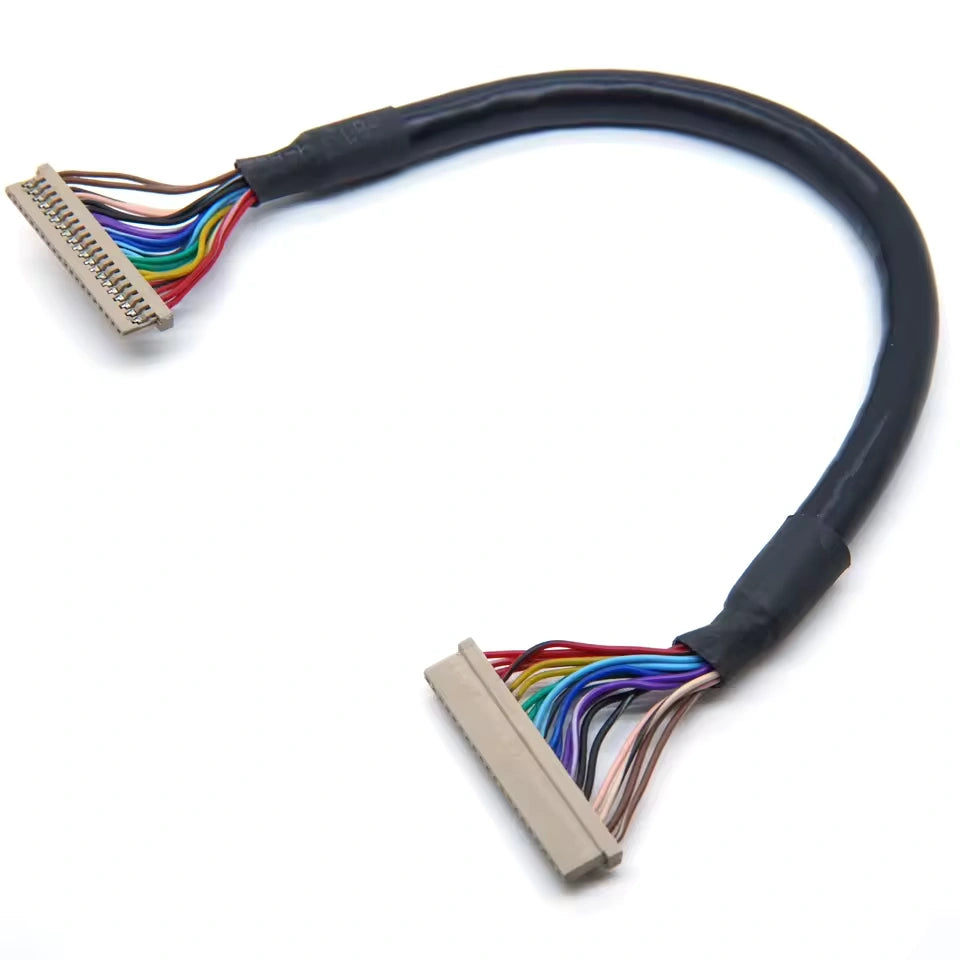

Hirose DF14 1.25mm Pitch 20-Pin Double-Ended - LVDS Wire Harness

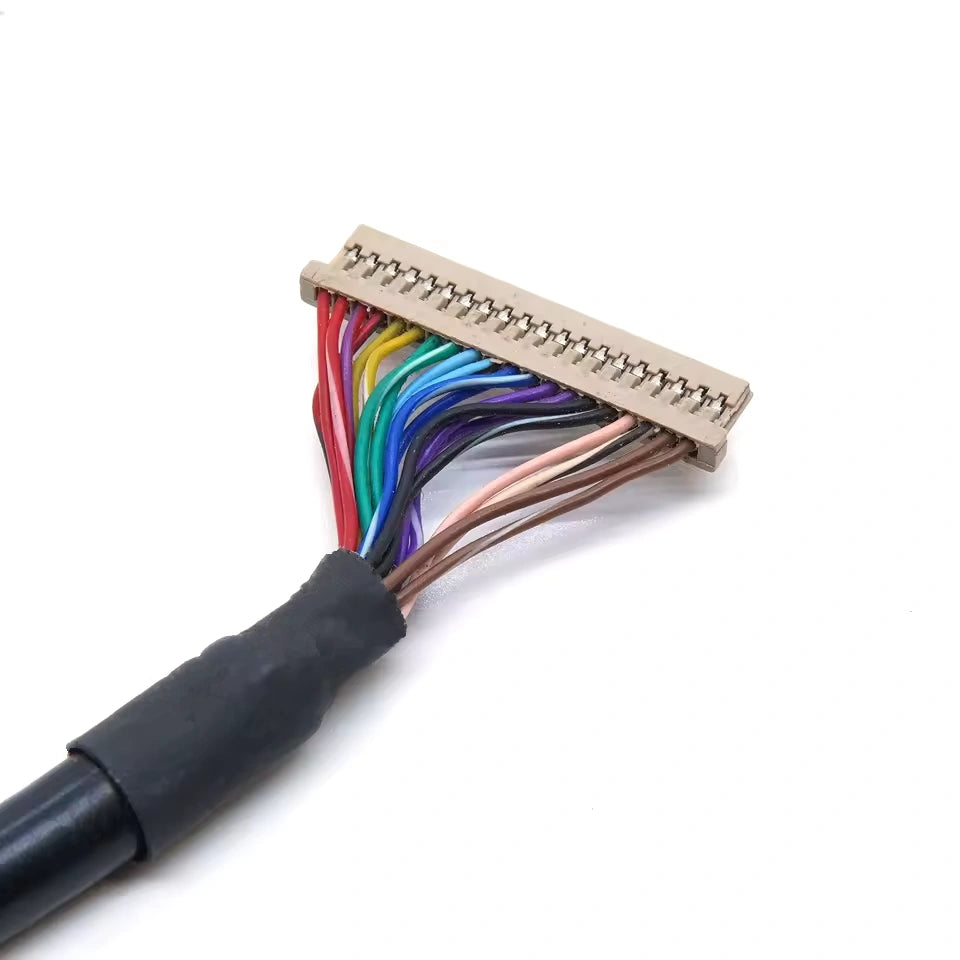

  • Integrates dual Hirose DF14 series 1.25mm pitch receptacles, engineered for high-speed Low-Voltage Differential Signaling (LVDS) and stable video data transmission between control boards and low-profile LCD panels.
  • Features a precise 20-pin double-ended (receptacle to receptacle) configuration equipped with a low-profile friction lock, while the broader Hirose DF14 series supports scalable options ranging from 2 to 30 pin positions.
  • Accommodates micro-coaxial and discrete wire gauges strictly specified for 26 AWG to 32 AWG, ensuring rigorous impedance control and superior EMI shielding for high-frequency internal routing.
  • Length: Customization available
  • Color: Customization available
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
