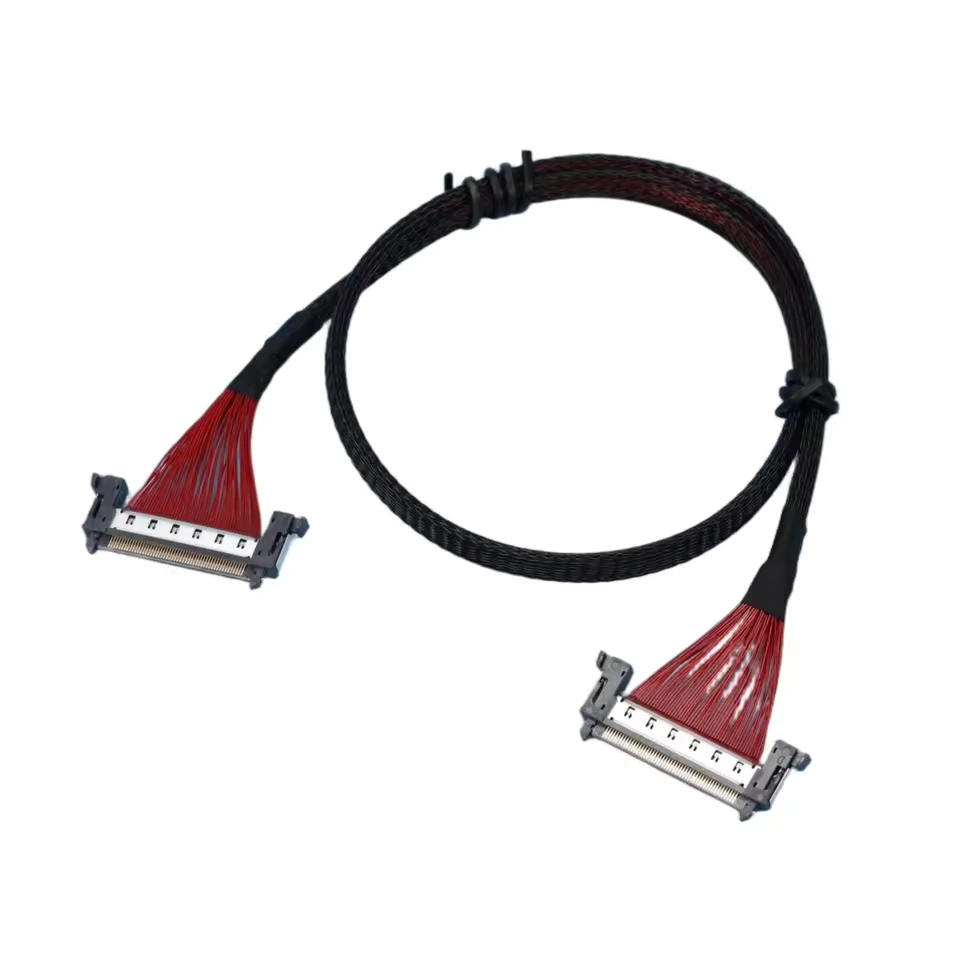

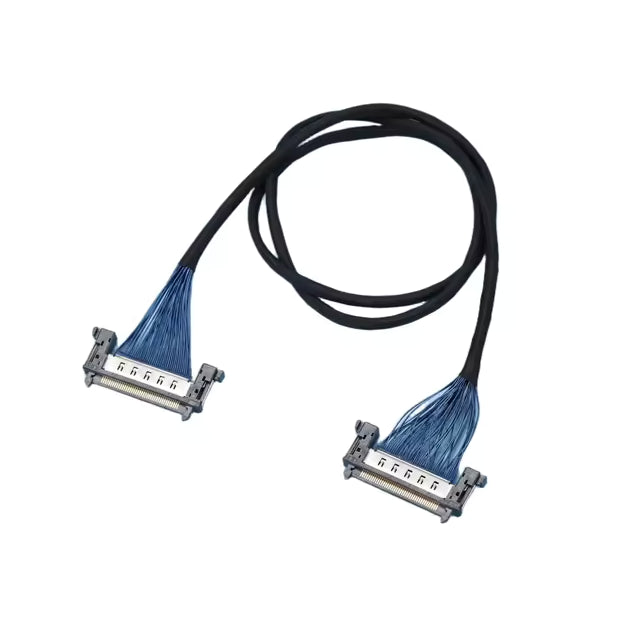

JAE FI-RE 0.5mm Pitch 51-Pin Male to Male - LVDS Wire Harness

  • Integrates dual JAE FI-RE series 0.5mm pitch interconnects (FI-RE51S), engineered for high-speed Low-Voltage Differential Signaling (LVDS) and stable video data transmission between control boards and high-resolution LCD panels.
  • Features a high-density 51-pin double-ended (male to male) configuration equipped with a secure mechanical lock, while the broader JAE FI-RE connector series supports scalable configurations including 21, 31, 41, and 51 pin position options.
  • Accommodates micro-coaxial and ultra-fine discrete wire gauges strictly specified for 30 AWG to 36 AWG, ensuring precise impedance control and superior EMI shielding for high-frequency internal routing.
  • Length: Customization available
  • Color: Customization available
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
