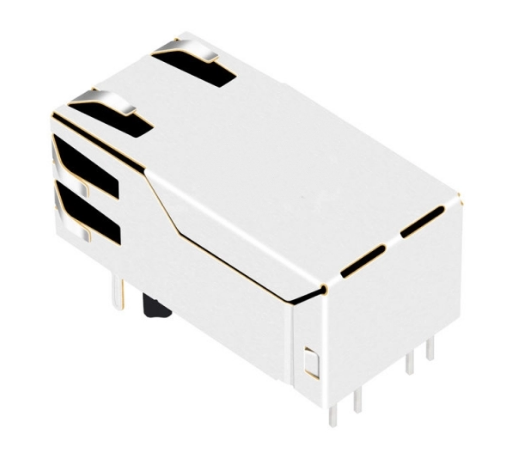

• TW1KM06393AHNL, 10G Base RJ45 Modular Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - side view

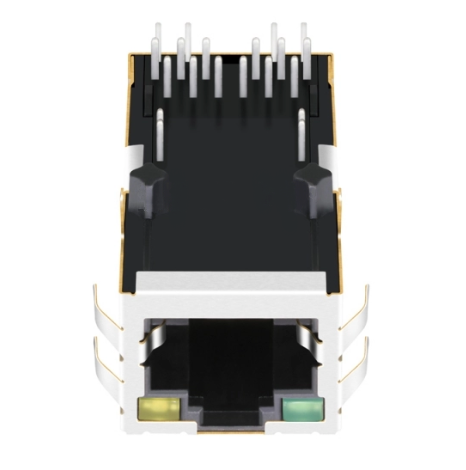

  • TWQ063939AHNL, 5G Base RJ45 Modular Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - front view
  • TWQ063939AHNL, 5G Base RJ45 Modular Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - back view
1 3

TWQ063939AHNL 5G Base-T RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TWQ063939AHNL is a 5G Base-T EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse 0826-1G1T-GH-F — the TWQ063939AHNL cross-references to this part.
  • Halo HFJT1-5GHP-L12RL — a further published equivalent on the same footprint.
  • LINK-PP LPJQ95282-8AHNL — same footprint, sourced outside mainland China.

Selection Notes

  • PoE+, IEEE 802.3at — up to 30 W at the PSE over the data pairs.
  • 5G Base-T, IEEE 802.3bz — reaches this rate on existing Cat5e without pulling new cable.
  • Green/ Yellow LEDs — wired to the host PHY, not to internal logic.
  • Integrated magnetics — isolation and common-mode choke inside the connector, not on the PCB.

Typical application: powered endpoints where the drop carries both the link and the device supply.

Pricing for the TWQ063939AHNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWQ063939AHNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 16P8C(RJ45)
Ports 1x1
Speed 5G Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE+
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.280/32.50
Product Width (Inches/mm) 0.650/ 16.50
Product Height (Inches/mm) 0.531/ 13.50
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse, Halo

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse 0826-1G1T-GH-F?
The TWQ063939AHNL from TeleWire Technology cross-references to the Bel Fuse 0826-1G1T-GH-F and to LINK-PP LPJQ95282-8AHNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWQ063939AHNL replace?
The TWQ063939AHNL cross-references to Bel Fuse 0826-1G1T-GH-F; Halo HFJT1-5GHP-L12RL, and to LINK-PP LPJQ95282-8AHNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWQ063939AHNL as a second source?
Request a sample of the TWQ063939AHNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse 0826-1G1T-GH-F on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
