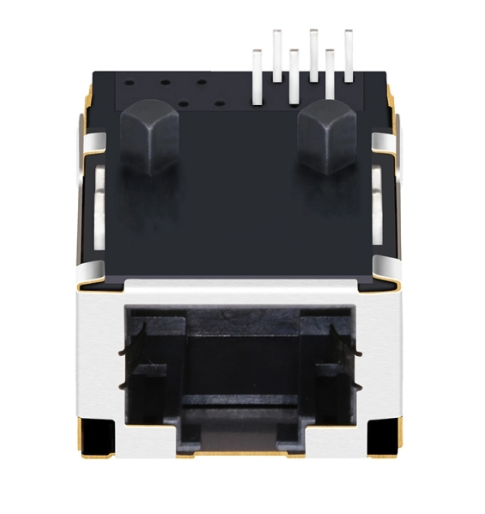

  • TWL8140B09NL, 1000 Base Gigabit Low-Profile RJ45 Jack with Transformer Tab Up with Orange&Green/ Yellow Led - front view

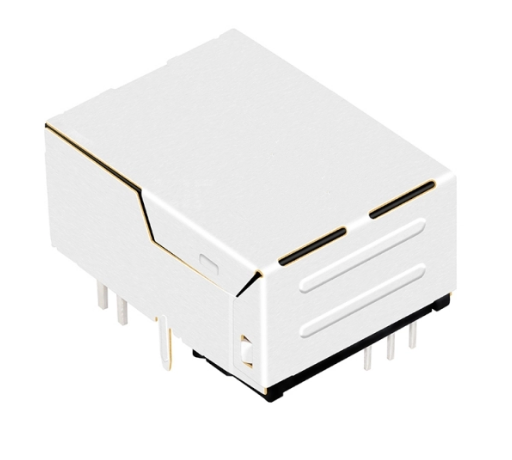

  • TWL8140B09NL, 1000 Base Gigabit Low-Profile RJ45 Jack with Transformer Tab Up with Orange&Green/ Yellow Led - back view
1 3

TWL8140B09NL 10/100/1000 Base-T Low-Profile RJ45 MagJack, Tab Up, Orange&Green/ Yellow LED

The TeleWire Technology TWL8140B09NL is a 10/100/1000 Base-T shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse L830-1JX1-43 — the TWL8140B09NL cross-references to this part.
  • LINK-PP LPJK7039B98NL — same footprint, sourced outside mainland China.

Selection Notes

  • Low-profile body — reduced height where board-to-lid clearance is the constraint.
  • 10/100/1000 Base-T — matched magnetics for this line rate, no external transformer.
  • Orange&Green/ Yellow LEDs — indicated condition set by the host PHY design.
  • Shielded shell without EMI fingers — grounding becomes a layout decision, not a mechanical one.

Typical application: slim gateways and rack sleds where enclosure height is the binding constraint.

Pricing for the TWL8140B09NL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWL8140B09NL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 12P8C(RJ45)
Ports 1x1
Speed 10/100/1000 Base-T
Latch Type Up
LED Orange&Green/ Yellow
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.946/ 24.30
Product Width (Inches/mm) 0.700/ 17.80
Product Height (Inches/mm) 0.445/ 11.30
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse
