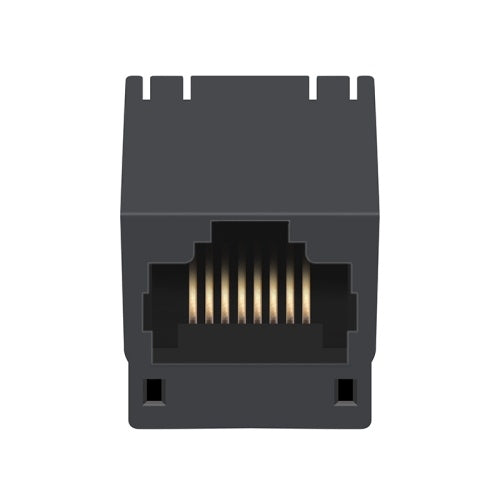

• RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Main View

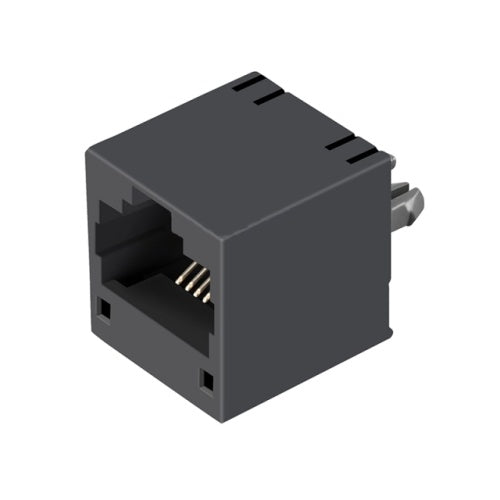

  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Second View

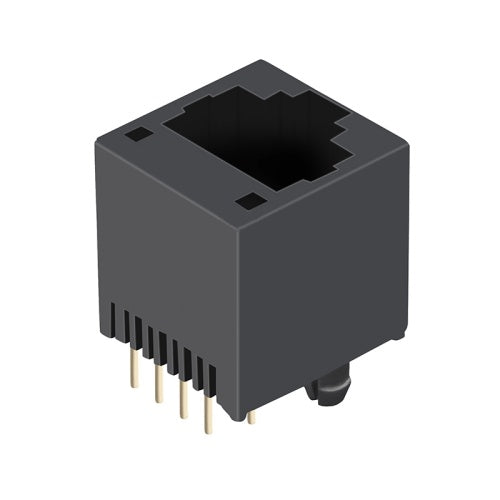

  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Third View
1 3

TWE792NNL Vertical RJ45 Jack, Tab Down, No LEDs

The TeleWire Technology TWE792NNL is a unshielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • LINK-PP LPJE681NNL — same footprint, sourced outside mainland China.

Selection Notes

  • Vertical (180°) body — cable exits perpendicular to the PCB, not over its edge.
  • −40 °C to +85 °C — rated for unheated cabinets across the seasonal swing.
  • Unshielded (UTP) — for designs where the chassis carries the shield path.
  • No LEDs — no light pipes to align against the panel cut-out.

Typical application: outdoor and unheated cabinets where the port exits through a top cover.

Pricing for the TWE792NNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE792NNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Down
Shielding Unshielded
PCB Mount Type Through Hole
Orientation Vertical (180°)
AutoMDIX YES
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.638/ 16.20
Product Width (Inches/mm) 0.616/ 15.65
Product Height (Inches/mm) 0.632/ 16.05
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJE681NNL?
Yes. The TWE792NNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJE681NNL. LINK-PP manufactures in mainland China; the TWE792NNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TWE792NNL be built to a different configuration?
Yes. The standard TWE792NNL ships with a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE792NNL as a second source?
Request a sample of the TWE792NNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJE681NNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
