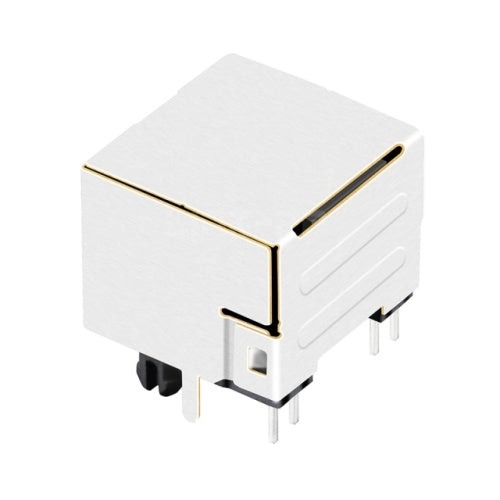

  • RJ45 Modular Jack Connector without Transformer Tab Up - Yellow/ Green LEDs - Third View
1 2

TWE07329925S1L3A RJ45 Jack, Tab Up, Yellow/ Green LED

The TeleWire Technology TWE07329925S1L3A is a shielded RJ45 jack. It is a TeleWire Technology original design, manufactured in Taiwan.

Design Origin

  • TeleWire Technology original design — tooled and manufactured in Taiwan.
  • Send your footprint — the engineering team will confirm mechanical compatibility.

Selection Notes

  • Yellow/ Green LEDs — driven from the host; link and activity mapping is yours.
  • −40 °C to +85 °C — beyond what a commercial-grade jack is rated for.
  • Shielded shell without EMI fingers — shield returns via board ground, not the bezel.
  • No integrated magnetics — pair it with the discrete transformer your PHY vendor specifies.

Typical application: process and utility equipment installed in unconditioned plant rooms.

Pricing for the TWE07329925S1L3A ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE07329925S1L3A on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Up
LED Yellow/ Green
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.590/ 15.00
Product Width (Inches/mm) 0.637/ 16.18
Product Height (Inches/mm) 0.444 11.3
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWE07329925S1L3A?
The TWE07329925S1L3A is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWE07329925S1L3A be built to a different configuration?
Yes. The standard TWE07329925S1L3A ships with Yellow/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE07329925S1L3A as a second source?
Request a sample of the TWE07329925S1L3A and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
