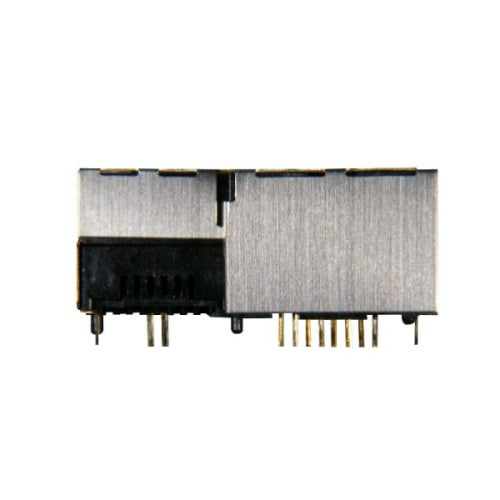

  • 1x2 RJ45 & RJ11 jack connector without transformer tab up - No LEDs - Second View
1 2

TWE073295233S1LF 1x2 Port RJ45/RJ11 Combo Jack, Tab Up

The TeleWire Technology TWE073295233S1LF is a 1x2 shielded RJ45/RJ11 combo jack. It is a TeleWire Technology original design, manufactured in Taiwan.

Design Origin

  • TeleWire Technology original design — tooled and manufactured in Taiwan.
  • Send your footprint — the engineering team will confirm mechanical compatibility.

Selection Notes

  • 1x2 port array — 2 ports on one shell, saving panel width.
  • −40 °C to +85 °C — the range asked for in outdoor and factory-floor housings.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.
  • No integrated magnetics — the housing is the connector only; isolation is a board decision.

Typical application: patching and distribution boards that group ports behind a single opening.

Pricing for the TWE073295233S1LF ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWE073295233S1LF on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type RJ45 & RJ11 Combo
Ports 1x2
Latch Type Up
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.598/ 15.2
Product Width (Inches/mm) 1.068/ 27.13
Product Height (Inches/mm) 0.445/ 11.3
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWE073295233S1LF?
The TWE073295233S1LF is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWE073295233S1LF be built to a different configuration?
Yes. The standard TWE073295233S1LF ships with a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE073295233S1LF as a second source?
Request a sample of the TWE073295233S1LF and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
