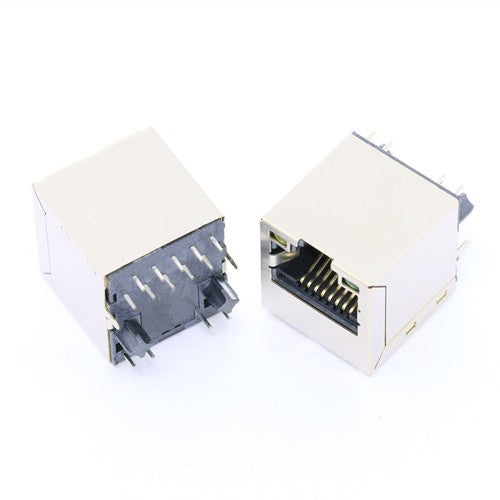

• TWDT1719BANL, 2.5G Base Vertical RJ45 Modular Jack with Transformer Tab Up with Yellow/ Green Led - side view

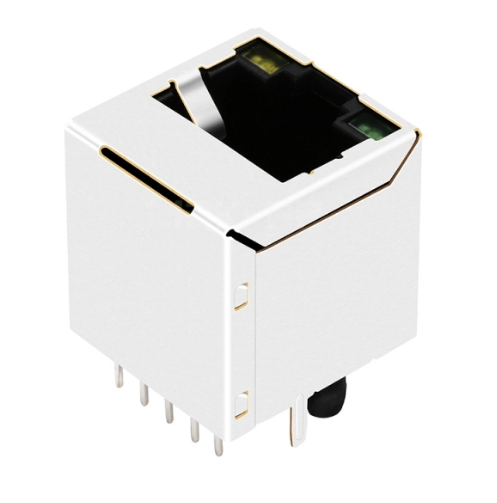

  • TWDT1719BANL, 2.5G Base Vertical RJ45 Modular Jack with Transformer Tab Up with Yellow/ Green Led - front view

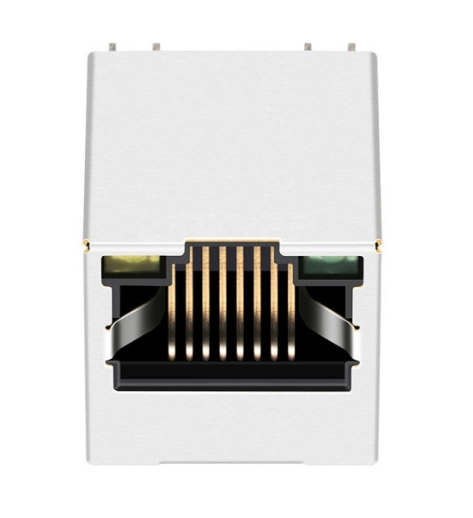

  • TWDT1719BANL, 2.5G Base Vertical RJ45 Modular Jack with Transformer Tab Up with Yellow/ Green Led - back view
1 3

TWDT1719BANL 2.5G Base-T Vertical RJ45 MagJack, Tab Up, Yellow/ Green LED

The TeleWire Technology TWDT1719BANL is a 2.5G Base-T shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • LINK-PP LPJM0608BANL — same footprint, sourced outside mainland China.

Selection Notes

  • Vertical (180°) body — the port faces up, away from the board plane.
  • 2.5G Base-T, IEEE 802.3bz — multi-gigabit over installed Cat5e, no recabling.
  • Yellow/ Green LEDs — indicated condition set by the host PHY design.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.

Typical application: compact industrial controllers where the Ethernet port exits through a top cover.

Pricing for the TWDT1719BANL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWDT1719BANL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg

Product Drawing

TWDT1719BANL mechanical drawingDimensions, footprint and pin-out
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 2.5G Base-T
Latch Type Up
LED Yellow/ Green
Shielding Shield
PCB Mount Type Through Hole
Orientation Vertical (180°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.665/ 16.90
Product Width (Inches/mm) 0.634/ 16.10
Product Height (Inches/mm) 0.661/ 16.80
Temperature 0℃ ~ 70℃
