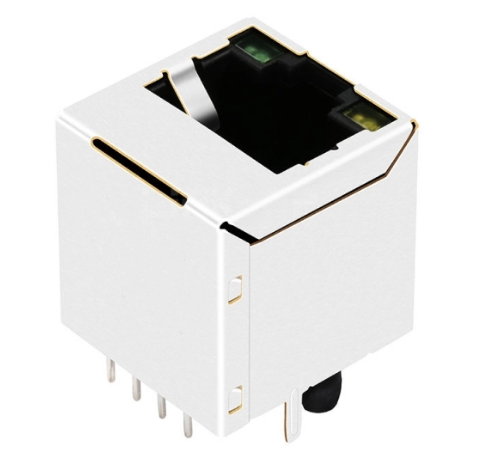

• TWD1212BENL, 10/100 Base Vertical RJ45 Modular Jack with Transformer with PoE Tab Up with Green/ Yellow Led - side view

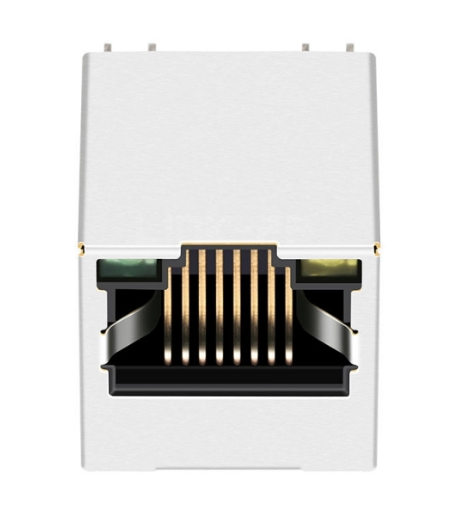

  • TWD1212BENL, 10/100 Base Vertical RJ45 Modular Jack with Transformer with PoE Tab Up with Green/ Yellow Led - front view

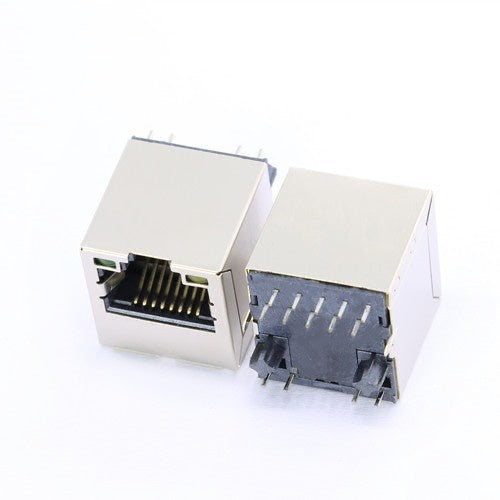

  • TWD1212BENL, 10/100 Base Vertical RJ45 Modular Jack with Transformer with PoE Tab Up with Green/ Yellow Led - back view
1 3

TWD1212BENL 10/100 Base-T Vertical RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TWD1212BENL is a 10/100 Base-T shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • LINK-PP LPJD0101BENL — same footprint, sourced outside mainland China.

Selection Notes

  • PoE, IEEE 802.3af — up to 15.4 W at the PSE over the data pairs.
  • Vertical (180°) body — the plug seats vertically, keeping the board edge clear.
  • 10/100 Base-T — matched magnetics for this line rate, no external transformer.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.

Typical application: powered endpoints where the drop carries both the link and the device supply.

Pricing for the TWD1212BENL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TWD1212BENL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield
PCB Mount Type Through Hole
Orientation Vertical (180°)
PoE PoE
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.660/ 16.76
Product Width (Inches/mm) 0.630/ 16.00
Product Height (Inches/mm) 0.657/ 16.70
Temperature 0℃ ~ 70℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJD0101BENL?
Yes. The TWD1212BENL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJD0101BENL. LINK-PP manufactures in mainland China; the TWD1212BENL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TWD1212BENL be built to a different configuration?
Yes. The standard TWD1212BENL ships with Green/ Yellow LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWD1212BENL as a second source?
Request a sample of the TWD1212BENL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJD0101BENL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
