• TW6J77515AENL, 100 Base Magjack 1x6 Port RJ45 Tab Down with Green/ Yellow Led - side view

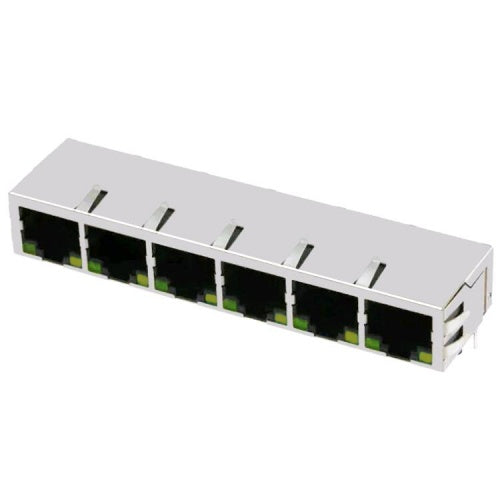

  • TW6J77515AENL, 100 Base Magjack 1x6 Port RJ45 Tab Down with Green/ Yellow Led - front view

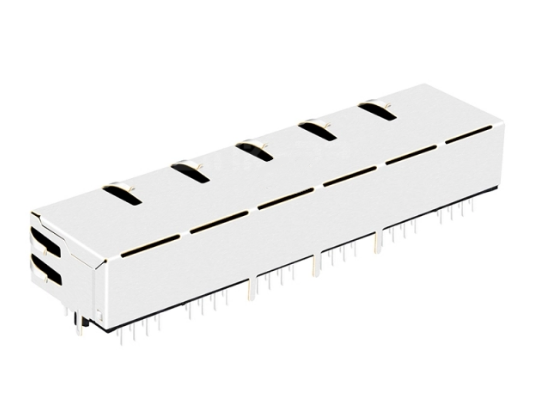

  • TW6J77515AENL, 100 Base Magjack 1x6 Port RJ45 Tab Down with Green/ Yellow Led - back view
1 3

TW6J77515AENL 10/100 Base-T 1x6 Port RJ45 Jack, Tab Down, Green/ Yellow LED

The TeleWire Technology TW6J77515AENL is a 10/100 Base-T 1x6 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse SI-60234-F — the TW6J77515AENL cross-references to this part.
  • Pulse JX8064D668ANL — a further published equivalent on the same footprint.
  • LINK-PP LPJ66404AENL — same footprint, sourced outside mainland China.

Selection Notes

  • 1x6 port array — 6 ports on one shell, saving panel width.
  • 10/100 Base-T — the rate the contact geometry is specified to.
  • Green/ Yellow LEDs — indicated condition set by the host PHY design.
  • −40 °C to +85 °C — industrial range, not the commercial 0-to-70 grade.

Typical application: patching and distribution boards that group ports behind a single opening.

Pricing for the TW6J77515AENL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW6J77515AENL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x6
Speed 10/ 100 Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 3.425/ 86.99
Product Height (Inches/mm) 0.531/ 13.50
Temperature -40℃ ~ 85℃
Compatible Brands Belfuse, Pulse

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse SI-60234-F?
The TW6J77515AENL from TeleWire Technology cross-references to the Bel Fuse SI-60234-F and to LINK-PP LPJ66404AENL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW6J77515AENL replace?
The TW6J77515AENL cross-references to Bel Fuse SI-60234-F; Pulse JX8064D668ANL, and to LINK-PP LPJ66404AENL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW6J77515AENL as a second source?
Request a sample of the TW6J77515AENL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse SI-60234-F on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
