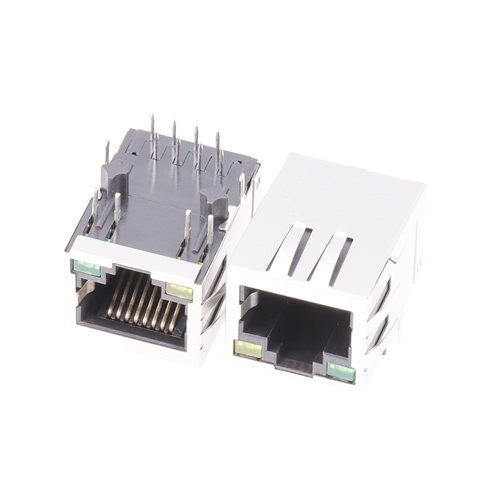

TW5124EDNL 10/100 Base-T RJ45 MagJack, Tab Down, Yellow/ Green LED

The TeleWire Technology TW5124EDNL is a 10/100 Base-T EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • YDS RJLB060TC1 — the TW5124EDNL cross-references to this part.
  • LINK-PP LPJ4013EDNL — same footprint, sourced outside mainland China.

Selection Notes

  • 10/100 Base-T — matched magnetics for this line rate, no external transformer.
  • Yellow/ Green LEDs — indicated condition set by the host PHY design.
  • −40 °C to +85 °C — the range asked for in outdoor and factory-floor housings.
  • Integrated magnetics — isolation and common-mode choke inside the connector, not on the PCB.

Typical application: industrial gateways and factory-floor equipment rated beyond the commercial range.

Pricing for the TW5124EDNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW5124EDNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.25
Product Width (Inches/mm) 0.627/ 15.93
Product Height (Inches/mm) 0.524/ 13.30
Temperature -40℃ ~ 85℃
Compatible Brands YDS

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the YDS RJLB060TC1?
The TW5124EDNL from TeleWire Technology cross-references to the YDS RJLB060TC1 and to LINK-PP LPJ4013EDNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW5124EDNL be built to a different configuration?
Yes. The standard TW5124EDNL ships with Yellow/ Green LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches YDS RJLB060TC1.
How do I qualify the TW5124EDNL as a second source?
Request a sample of the TW5124EDNL and the mechanical drawing from TeleWire Technology, then check the footprint against the YDS RJLB060TC1 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
