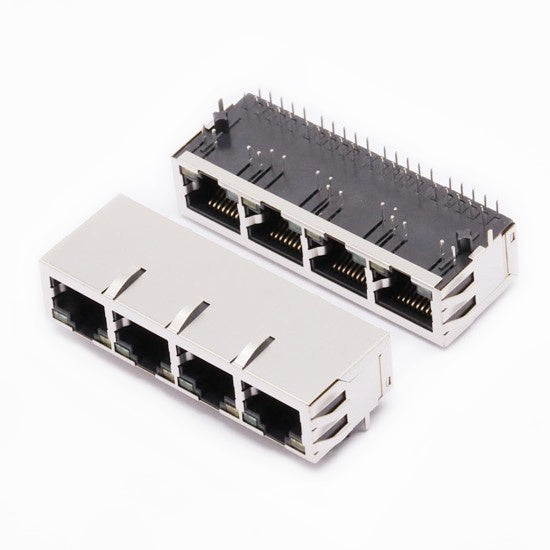

• TW4JT57049AENL, 2.5G Base 1x4 Port RJ45 Tab Down with Green/ Yellow Led - side view

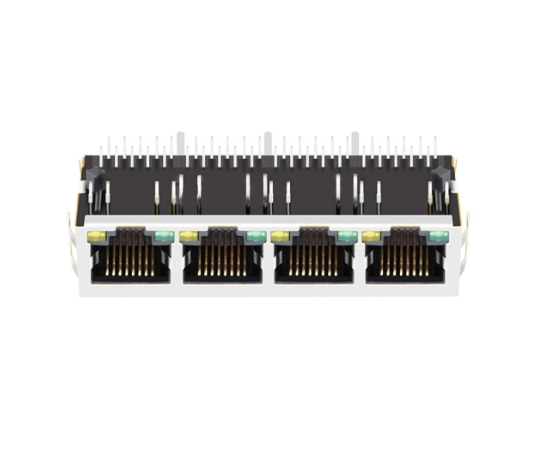

  • TW4JT57049AENL, 2.5G Base 1x4 Port RJ45 Tab Down with Green/ Yellow Led - front view

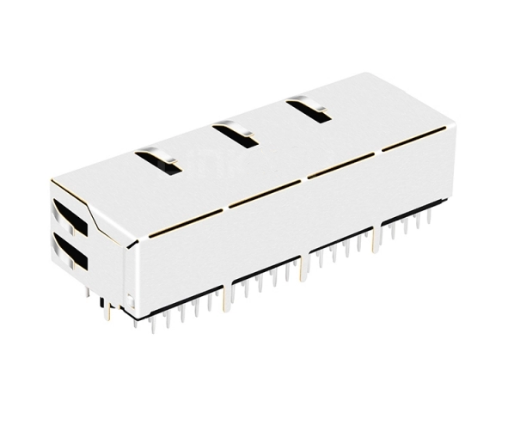

  • TW4JT57049AENL, 2.5G Base 1x4 Port RJ45 Tab Down with Green/ Yellow Led - back view
1 3

TW4JT57049AENL 2.5G Base-T 1x4 Port RJ45 Jack, Tab Down, Green/ Yellow LED

The TeleWire Technology TW4JT57049AENL is a 2.5G Base-T 1x4 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • LINK-PP LPJM46938AENL-2 — same footprint, sourced outside mainland China.

Selection Notes

  • 1x4 port array — 4 ports on one shell, saving panel width.
  • 2.5G Base-T, IEEE 802.3bz — reaches this rate on existing Cat5e without pulling new cable.
  • Green/ Yellow LEDs — indicated condition set by the host PHY design.
  • −40 °C to +85 °C — industrial range, not the commercial 0-to-70 grade.

Typical application: aggregation blades and multi-port gateways running several links off one PHY bank.

Pricing for the TW4JT57049AENL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW4JT57049AENL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x4
Speed 2.5G Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.831/ 21.10
Product Width (Inches/mm) 2.325/ 59.06
Product Height (Inches/mm) 0.527/ 13.39
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJM46938AENL-2?
Yes. The TW4JT57049AENL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJM46938AENL-2. LINK-PP manufactures in mainland China; the TW4JT57049AENL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW4JT57049AENL be built to a different configuration?
Yes. The standard TW4JT57049AENL ships with Green/ Yellow LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW4JT57049AENL as a second source?
Request a sample of the TW4JT57049AENL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJM46938AENL-2 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
