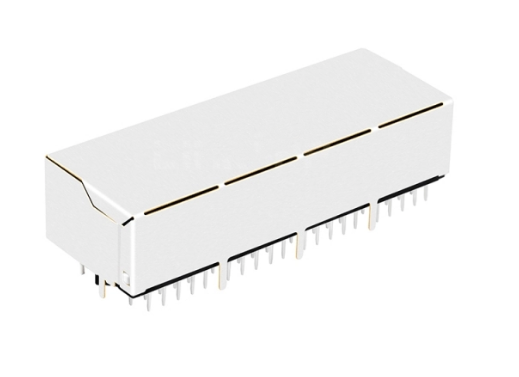

• TW4J57912BENL, 1000 Base 1x4 Port RJ45 Modular Jack Tab Down with Green/ Yellow Led - side view
  • TW4J57912BENL, 1000 Base 1x4 Port RJ45 Modular Jack Tab Down with Green/ Yellow Led - front view
  • TW4J57912BENL, 1000 Base 1x4 Port RJ45 Modular Jack Tab Down with Green/ Yellow Led - back view
1 3

TW4J57912BENL 10/100/1000 Base-T 1x4 Port RJ45 Jack, Tab Down, Green/ Yellow LED

The TeleWire Technology TW4J57912BENL is a 10/100/1000 Base-T 1x4 shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • Hanrun HY911431A — the TW4J57912BENL cross-references to this part.
  • LINK-PP LPJG46801BENL — same footprint, sourced outside mainland China.

Selection Notes

  • 1x4 port array — 4 ports on one shell, saving panel width.
  • 10/100/1000 Base-T — the interface rate this housing is qualified for.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.

Typical application: switch and router line cards, where port density per panel inch drives the design.

Pricing for the TW4J57912BENL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW4J57912BENL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x4
Speed 10/100/1000 Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 2.328/ 59.12
Product Height (Inches/mm) 0.533/ 13.55
Temperature 0℃ ~ 70℃
Compatible Brands Hanrun

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Hanrun HY911431A?
The TW4J57912BENL from TeleWire Technology cross-references to the Hanrun HY911431A and to LINK-PP LPJG46801BENL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW4J57912BENL be built to a different configuration?
Yes. The standard TW4J57912BENL ships with Green/ Yellow LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Hanrun HY911431A.
How do I qualify the TW4J57912BENL as a second source?
Request a sample of the TW4J57912BENL and the mechanical drawing from TeleWire Technology, then check the footprint against the Hanrun HY911431A on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
