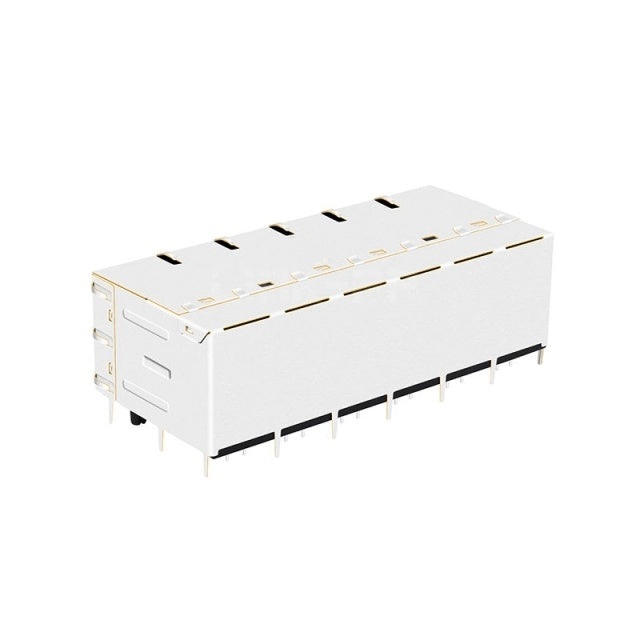

• TW28S98642AHNL, 1000 Base Gigabit 2x8 Port RJ45 Jack Tab Both with Green/ Yellow Led - side view
  • TW28S98642AHNL, 1000 Base Gigabit 2x8 Port RJ45 Jack Tab Both with Green/ Yellow Led - front view
  • TW28S98642AHNL, 1000 Base Gigabit 2x8 Port RJ45 Jack Tab Both with Green/ Yellow Led - back view
1 3

TW28S98642AHNL 10/100/1000 Base-T 2x8 Port RJ45 Jack, Tab Both, Green/ Yellow LED

The TeleWire Technology TW28S98642AHNL is a 10/100/1000 Base-T 2x8 EMI-finger shielded RJ45 jack. Manufactured in Taiwan.

Cross Reference

  • UDE RM9-11UVRV1Q — the TW28S98642AHNL cross-references to this part.
  • LINK-PP LPJG87531AHNL — same footprint, sourced outside mainland China.

Selection Notes

  • 2x8 port array — 16 ports on one shell, saving panel width.
  • 10/100/1000 Base-T — the interface rate this housing is qualified for.
  • Green/ Yellow LEDs — indicated condition set by the host PHY design.
  • EMI grounding fingers — spring contacts bond the shell to the panel on seating.

Typical application: aggregation blades and multi-port gateways running several links off one PHY bank.

Pricing for the TW28S98642AHNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW28S98642AHNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x8
Speed 10/100/1000 Base-T
Latch Type Both
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.116/ 28.35
Product Width (Inches/mm) 4.530/ 115.06
Product Height (Inches/mm) 1.015/ 25.79
Temperature 0℃ ~ 70℃
Compatible Brands UDE

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the UDE RM9-11UVRV1Q?
The TW28S98642AHNL from TeleWire Technology cross-references to the UDE RM9-11UVRV1Q and to LINK-PP LPJG87531AHNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW28S98642AHNL be built to a different configuration?
Yes. The standard TW28S98642AHNL ships with Green/ Yellow LEDs and latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches UDE RM9-11UVRV1Q.
How do I qualify the TW28S98642AHNL as a second source?
Request a sample of the TW28S98642AHNL and the mechanical drawing from TeleWire Technology, then check the footprint against the UDE RM9-11UVRV1Q on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
