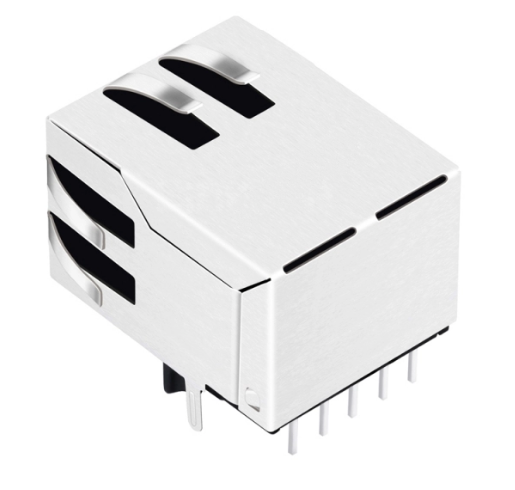

• TW275045AENL, 2.5G Base Ethernet RJ45 MagJack Tab Up with Green/Yellow Led - side view

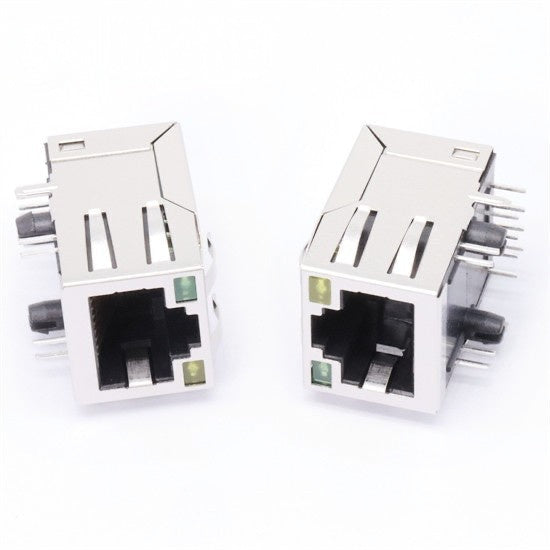

  • TW27510AENL, 1000 Base Gigabit Ethernet RJ45 MagJack Tab Up with Green/Yellow Led - TeleWire Technology

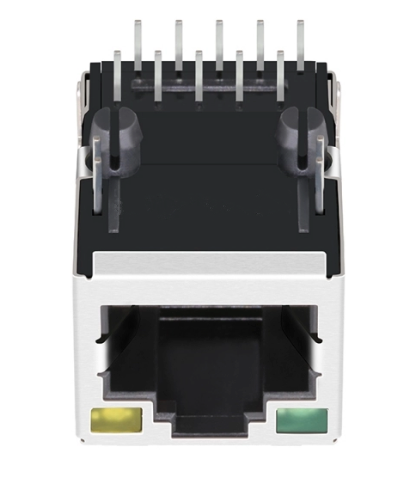

  • TW27510AENL, 1000 Base Gigabit Ethernet RJ45 MagJack Tab Up with Green/Yellow Led - TeleWire Technology
1 3

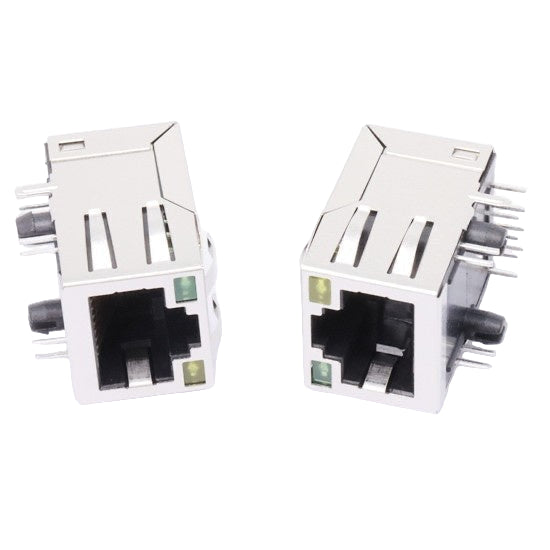

TW27510AENL 10/100/1000 Base-T RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TW27510AENL is a 10/100/1000 Base-T EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • YDS 46F-1305GYD2NL — the TW27510AENL cross-references to this part.
  • LINK-PP LPJG16409AENL — same footprint, sourced outside mainland China.

Selection Notes

  • 10/100/1000 Base-T — the rate the internal transformer is wound for.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.
  • −40 °C to +85 °C — beyond what a commercial-grade jack is rated for.
  • Integrated magnetics — the transformer sits in the shell, freeing board area beside the PHY.

Typical application: gigabit machine-vision and motion-control links running on the factory floor.

Pricing for the TW27510AENL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW27510AENL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/100/1000 Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.25
Product Width (Inches/mm) 0.628/ 15.95
Product Height (Inches/mm) 0.530/ 13.45
Temperature -40℃ ~ 85℃
Compatible Brands YDS

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the YDS 46F-1305GYD2NL?
The TW27510AENL from TeleWire Technology cross-references to the YDS 46F-1305GYD2NL and to LINK-PP LPJG16409AENL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW27510AENL be built to a different configuration?
Yes. The standard TW27510AENL ships with Green/ Yellow LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches YDS 46F-1305GYD2NL.
How do I qualify the TW27510AENL as a second source?
Request a sample of the TW27510AENL and the mechanical drawing from TeleWire Technology, then check the footprint against the YDS 46F-1305GYD2NL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
