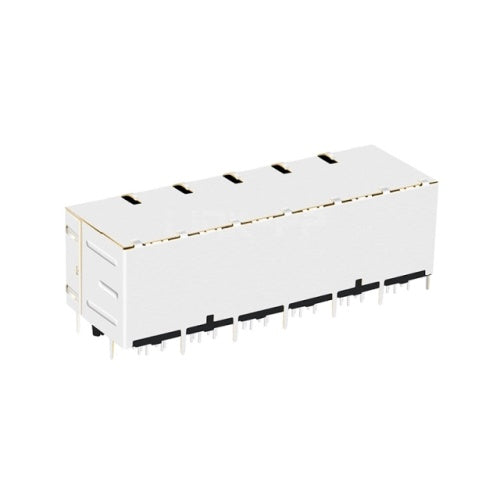

• 1000 Base Gigabit 2x6 Port Integrated Magnetics RJ45 Jack Tab Both without Led - side view

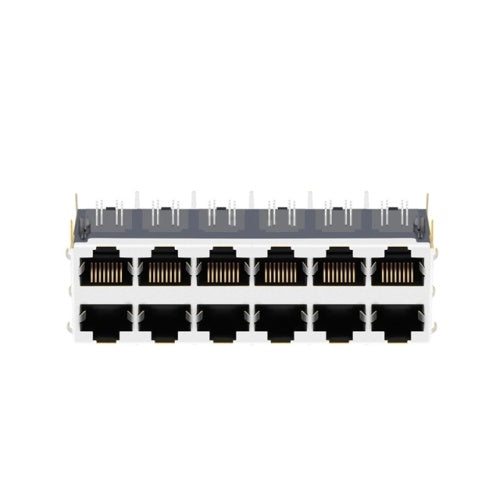

  • 1000 Base Gigabit 2x6 Port Integrated Magnetics RJ45 Jack Tab Both without Led - front view
  • 1000 Base gigabit 2x6 Port Integrated Magnetics RJ45 Jack Tab Both with Yellow&Green/ Yellow& Green Led - back view
1 3

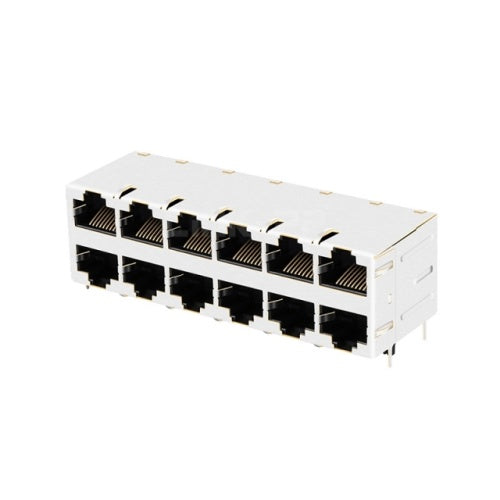

TW26S78500CNL 10/100 Base-T 2x6 Port RJ45 MagJack, Tab Both, No LEDs

The TeleWire Technology TW26S78500CNL is a 10/100 Base-T 2x6 EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Bel Fuse 0833-2X6R-55-F — the TW26S78500CNL cross-references to this part.
  • LINK-PP LPJ67499CNL — same footprint, sourced outside mainland China.

Selection Notes

  • 2x6 port array — 12 ports on one shell, saving panel width.
  • PoE+, IEEE 802.3at — up to 30 W at the PSE over the data pairs.
  • 10/100 Base-T — the interface rate the magnetics are matched to.
  • No LEDs — no light pipes to align against the panel cut-out.

Typical application: patching and distribution boards that group ports behind a single opening.

Pricing for the TW26S78500CNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW26S78500CNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x6
Speed 10/ 100 Base-T
Latch Type Both
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE+
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.116/ 28.35
Product Width (Inches/mm) 3.430/ 87.12
Product Height (Inches/mm) 1.118/ 28.40
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse 0833-2X6R-55-F?
The TW26S78500CNL from TeleWire Technology cross-references to the Bel Fuse 0833-2X6R-55-F and to LINK-PP LPJ67499CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW26S78500CNL be built to a different configuration?
Yes. The standard TW26S78500CNL ships with latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Bel Fuse 0833-2X6R-55-F.
How do I qualify the TW26S78500CNL as a second source?
Request a sample of the TW26S78500CNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse 0833-2X6R-55-F on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
