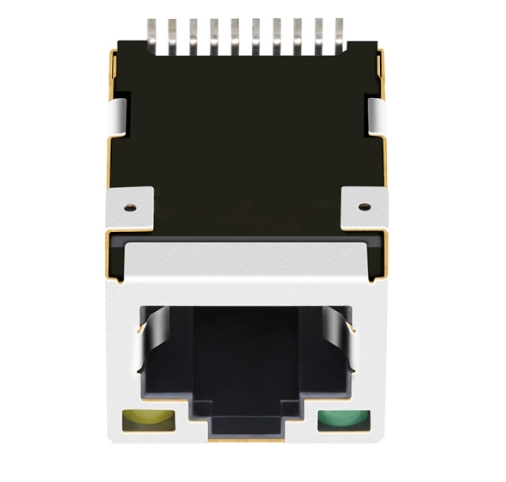

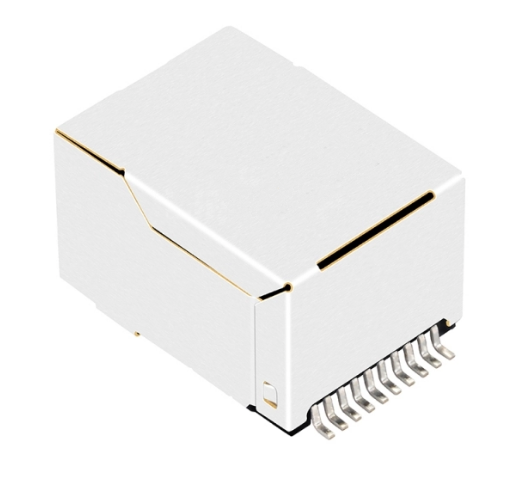

TW2051BBNL 10/100 Base-T RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TW2051BBNL is a 10/100 Base-T shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Hanrun HR963130AE — the TW2051BBNL cross-references to this part.
  • LINK-PP LPJ19401BBNL — same footprint, sourced outside mainland China.

Selection Notes

  • 10/100 Base-T — the interface rate the magnetics are matched to.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.
  • −40 °C to +85 °C — rated for unheated cabinets across the seasonal swing.
  • Shielded shell without EMI fingers — the shield terminates through the PCB.

Typical application: process and utility equipment installed in unconditioned plant rooms.

Pricing for the TW2051BBNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW2051BBNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield
PCB Mount Type Surface Mount
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.907/ 23.05
Product Width (Inches/mm) 0.661/ 16.80
Product Height (Inches/mm) 0.535/ 13.60
Temperature -40℃ ~ 85℃
Compatible Brands Hanrun

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Hanrun HR963130AE?
The TW2051BBNL from TeleWire Technology cross-references to the Hanrun HR963130AE and to LINK-PP LPJ19401BBNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW2051BBNL be built to a different configuration?
Yes. The standard TW2051BBNL ships with Green/ Yellow LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Hanrun HR963130AE.
How do I qualify the TW2051BBNL as a second source?
Request a sample of the TW2051BBNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Hanrun HR963130AE on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
