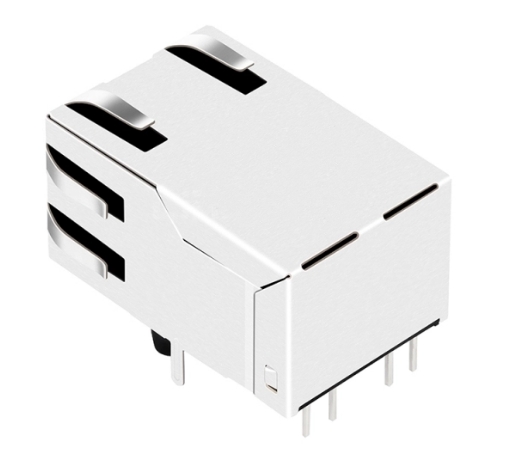

• TW1K0547AHNL, 10G Base RJ45 Modular Jack Tab Up with Green/Yellow Led - side view

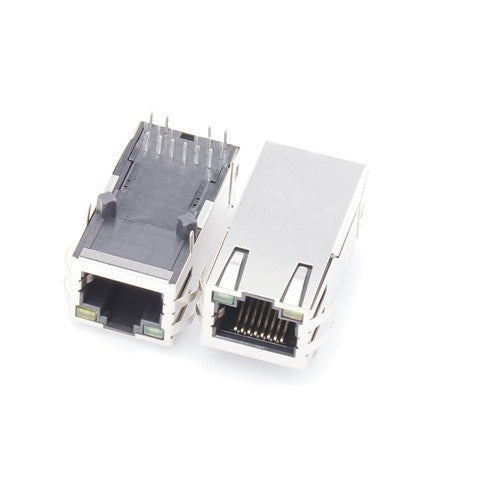

  • TW1K0547AHNL, 10G Base RJ45 Modular Jack Tab Up with Green/Yellow Led - front view

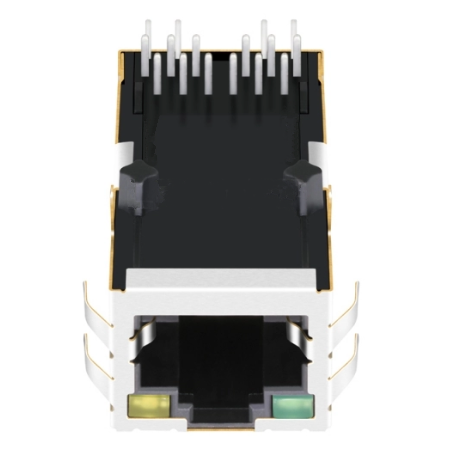

  • TW1K0547AHNL, 10G Base RJ45 Modular Jack Tab Up with Green/Yellow Led - back view
1 3

TW1K0547AHNL 10G Base-T RJ45 MagJack, Tab Up, Green/ Yellow LED

The TeleWire Technology TW1K0547AHNL is a 10G Base-T EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • LINK-PP LPJK9436AHNL — same footprint, sourced outside mainland China.

Selection Notes

  • 10G Base-T — the interface rate the magnetics are matched to.
  • Green/ Yellow LEDs — driven from the host; link and activity mapping is yours.
  • −40 °C to +85 °C — industrial range, not the commercial 0-to-70 grade.
  • Integrated magnetics — isolation on all four pairs, short routing to the PHY.

Typical application: gigabit machine-vision and motion-control links running on the factory floor.

Pricing for the TW1K0547AHNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW1K0547AHNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 12P8C(RJ45)
Ports 1x1
Speed 10G Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.280/ 32.50
Product Width (Inches/mm) 0.654/ 16.60
Product Height (Inches/mm) 0.531/ 13.50
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJK9436AHNL?
Yes. The TW1K0547AHNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJK9436AHNL. LINK-PP manufactures in mainland China; the TW1K0547AHNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW1K0547AHNL be built to a different configuration?
Yes. The standard TW1K0547AHNL ships with Green/ Yellow LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW1K0547AHNL as a second source?
Request a sample of the TW1K0547AHNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJK9436AHNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
