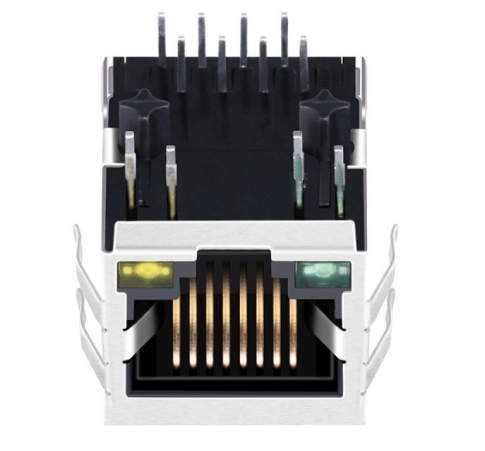

TW1123ABNL 10/100 Base-T RJ45 MagJack, Tab Down, Green/ Yellow LED

The TeleWire Technology TW1123ABNL is a 10/100 Base-T EMI-finger shielded RJ45 MagJack with integrated magnetics. Manufactured in Taiwan.

Cross Reference

  • Hanrun HY911108H — the TW1123ABNL cross-references to this part.
  • XFMRS XFATM9-CALGY1-4S — a further published equivalent on the same footprint.
  • XFMRS XFATM9-CALxu1-4S — a further published equivalent on the same footprint.

Selection Notes

  • 10/100 Base-T — the interface rate the magnetics are matched to.
  • Green/ Yellow LEDs — indicated condition set by the host PHY design.
  • Integrated magnetics — isolation on all four pairs, short routing to the PHY.
  • EMI grounding fingers — shield path closes against the chassis bezel.

Typical application: building-control panels and sensor gateways on 10/100 links.

Pricing for the TW1123ABNL ranges from $0.50 to $3.00 USD depending on order quantity and configuration, with volume tiers available on request.

Validate the TW1123ABNL on your board first. Samples are available for design validation, and the mechanical drawing gives the footprint before you commit a layout. Request a sample or quotation.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 0.626/ 15.90
Product Height (Inches/mm) 0.528/ 13.40
Temperature 0℃ ~ 70℃
Compatible Brands Hanrun, XFMRS

Related jacks

Same family, different latch, LED or plating option.

Cost-Effective Alternatives for Major Brand RJ45 Jack

Facing long lead times or high costs from major connector brands? We provide high-quality, drop-in replacements for standard modular jacks from TE, Molex, Amphenol, and Wurth. Our connectors match industry-standard footprints and performance specs at a more competitive price point.

From Flash, 3µ", 6µ", 15µ", 30µ", to 50µ" gold plating
Share the drawing to get equivalent match
Short lead times and consistent manufacturing in Taiwan
100% tested for contact resistance and insulation integrity
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Hanrun HY911108H?
The TW1123ABNL from TeleWire Technology cross-references to the Hanrun HY911108H and to LINK-PP LPJ0012ABNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW1123ABNL replace?
The TW1123ABNL cross-references to Hanrun HY911108H; XFMRS XFATM9-CALGY1-4S; XFMRS XFATM9-CALxu1-4S, and to LINK-PP LPJ0012ABNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW1123ABNL as a second source?
Request a sample of the TW1123ABNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Hanrun HY911108H on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
