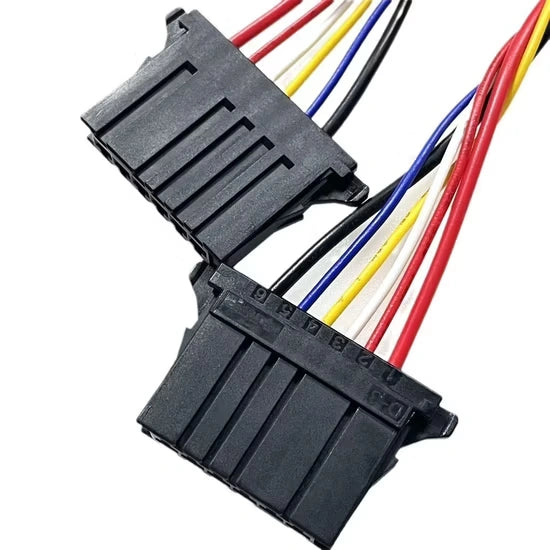

TE Connectivity AMP 1-178288-6 Dynamic D-3100 3.81mm Pitch 6-Pin - Custom Wire Harness

  • Engineered with the TE Connectivity / AMP 1-178288-6 6-position single-row receptacle housing featuring a robust 3.81mm (0.150") mating pitch, optimized for highly reliable wire-to-board and wire-to-wire internal routing.
  • Utilizes the highly proven AMP Dynamic D-3000 series crimp socket architecture, accommodating precision discrete wire contacts engineered for a broad operational wire gauge range spanning AWG #16 to AWG #28.
  • Supports exceptional high-current delivery capabilities (capable of up to 15.0A maximum per pin depending on wire gauge and layout) while securely managing logic signal transmission within industrial control and servo environments.
  • Features an integral anti-vibration locking mechanism with a tactile and audible 'click' alongside physical polarizing keys inherent to the Dynamic 3100 series design, strictly preventing misinsertion and accidental back-out under severe mechanical stress.
  • Constructed utilizing strictly controlled, high-flexibility discrete wiring topologies mapped to active routing constraints, ensuring long-term mechanical stability and preventing wire fatigue within tight application bending radii.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
