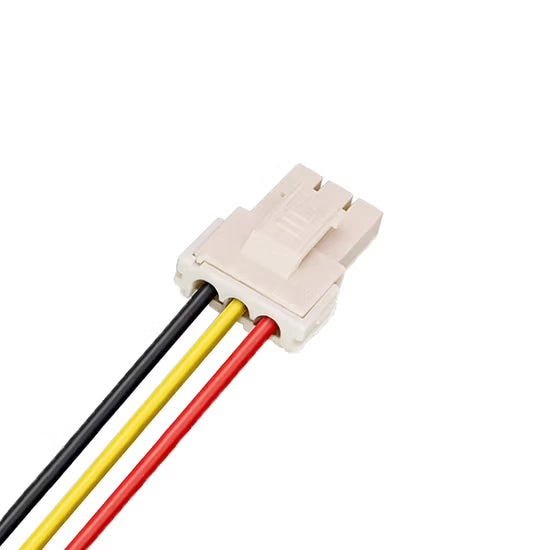

• -position 3.96mm pitch TE AMP Power Double Lock power interconnect

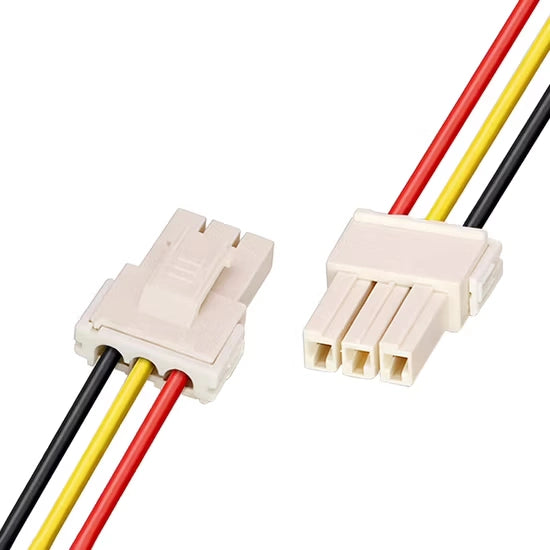

  • TE Connectivity 368571-1 3.96mm pitch 3-pin wire harness assembly
1 2

TE Connectivity 368571-1 Power Double Lock 3.96mm Pitch 3-Pin- Custom Wire Harness

  • Engineered with the TE Connectivity 368571-1 3-position plug housing featuring a robust 3.96mm (0.156") mating pitch, optimized for secure internal power and logic routing in consumer appliances, HVAC systems, and automotive equipment.
  • Utilizes the highly proven AMP Power Double Lock (PDL) series crimp architecture, accommodating precision discrete wire contacts capable of robust current delivery (up to 300 VAC operational voltage) alongside standard signal transmission.
  • Constructed from high-durability PA 66 nylon featuring a strict UL 94V-0 flammability rating and GWT 750°C (Glow Wire Test) compliance, ensuring maximum fire safety in unattended household and commercial industrial enclosures.
  • Incorporates an optional but highly recommended secondary locking mechanism (double lock) intrinsic to the PDL series design, explicitly engineered to prevent contact back-out and maintain structural connection integrity under continuous mechanical vibration.
  • Built utilizing strictly controlled, high-flexibility discrete wiring topologies mapped to withstand broad thermal cycling (-30°C to +105°C) and tight routing bends near compressors, small motors, and refrigeration units.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
