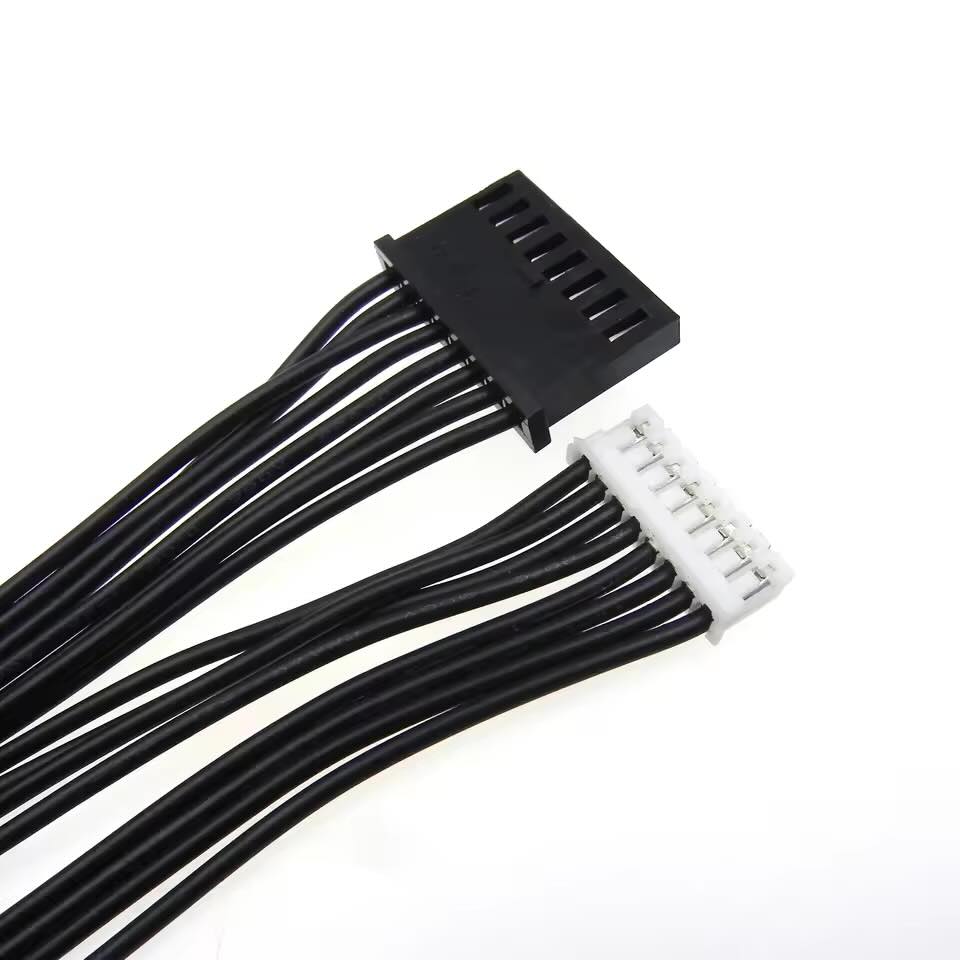

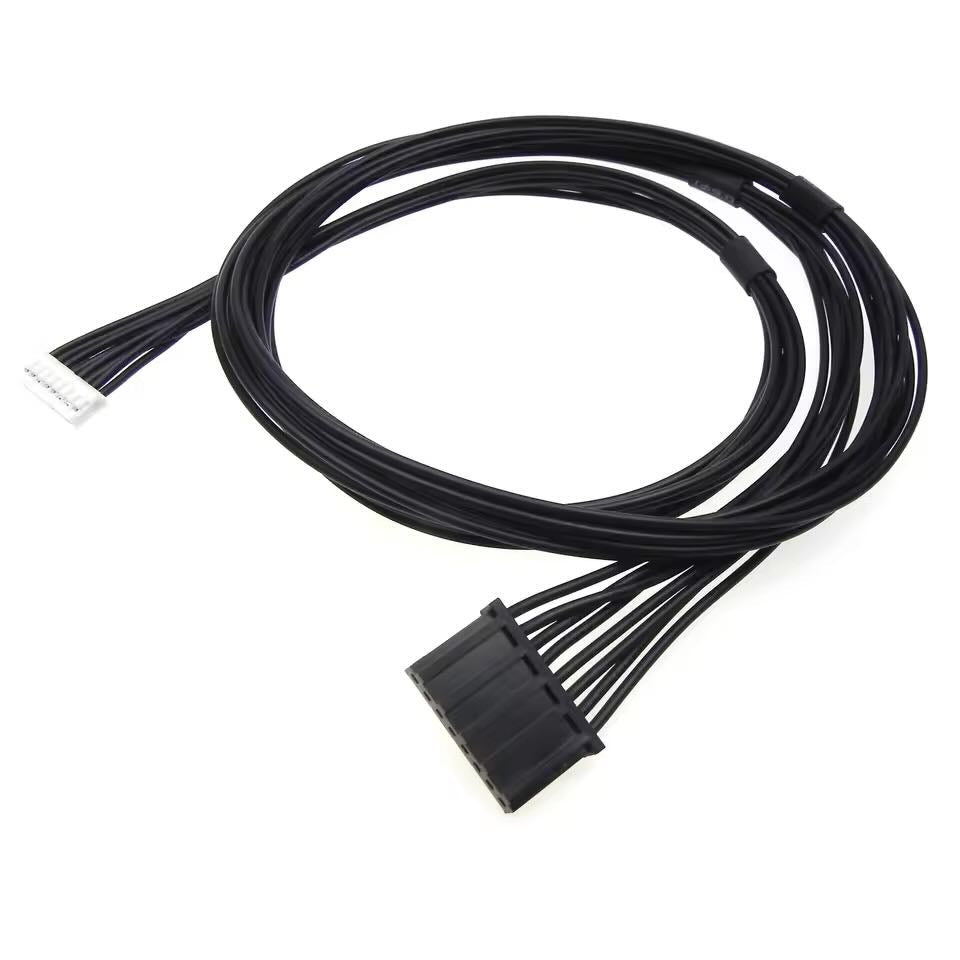

TE Connectivity 280361 to JST PHR-8 Hybrid Signal – Custom Wire Harness & Cable Assembly
- Cross-Pitch Integration: Bridges 2.54 mm pitch TE Connectivity 280361 series and 2.0 mm pitch JST PHR-8 (PH Series) connectors for reliable inter-board signaling.
- Versatile Signal Routing: Features an 8-position configuration designed for low-voltage signal transmission in industrial control systems and sensor arrays.
- Industrial Grade Materials: Constructed with UL-certified lead wires and high-quality tin-plated contacts to ensure long-term electrical conductivity and corrosion resistance.
- Precision Termination: Engineered with secure crimp-and-poke terminations to withstand moderate mechanical vibration in robotics and automated machinery.
Can't find what you need?
We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.
Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?
To provide an accurate quote and lead time, please provide:
- Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
- Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
- Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?
Yes. We offer variety of alternative components.
We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.
How do you ensure quality control for custom cable assemblies?
Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:
- 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
- Pull Force Testing: Verifying crimp strength.
- Visual Inspection: Checking for cosmetic defects and label accuracy.
- Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
