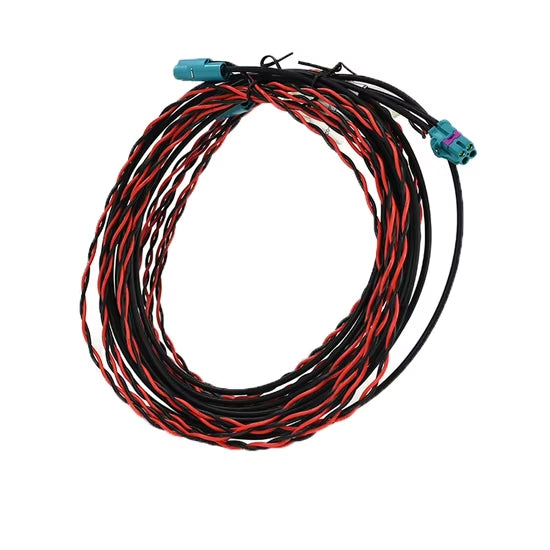

• TE Connectivity MATE-AX 2298721-9 wire harness assembly

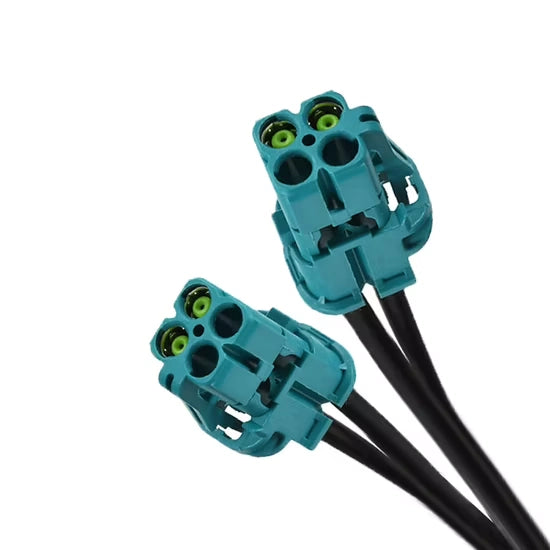

  • 4-position 4.0mm pitch MATE-AX Code Z automotive data interconnect
1 2

TE Connectivity 2298721-9 MATE-AX 4-Pin Dual End - Custom Wire Harness

  • Engineered as a high-frequency automotive data interconnect utilizing dual TE Connectivity MATE-AX 2298721-9 4-position socket housings (Code Z, Water Blue), optimized for up to 15 GHz / 24 Gbps analog and digital data transmission.
  • Constructed utilizing precision-terminated 50-ohm automotive-grade coaxial cables to strictly maintain signal integrity and provide aggressive electromagnetic interference (EMI) shielding across complex ADAS and sensor networks.
  • The MATE-AX architecture provides up to a 75% space reduction and 34% weight savings compared to traditional standard FAKRA systems, featuring a low-profile 4.0mm (0.157") centerline pitch for high-density telematics and camera ECU integration.
  • Accommodates highly reliable silver-plated center contacts and tin-plated outer coaxial contacts, specifically engineered to withstand severe thermal stress (-40°C to +105°C) and sustained vibration in ruggedized vehicular environments.
  • Features a robust snap-lock mechanical retention mechanism and primary terminal locking intrinsic to the TE MATE-AX housing design, inherently preventing misinsertion and guaranteeing secure mating cycles without accidental back-out.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
