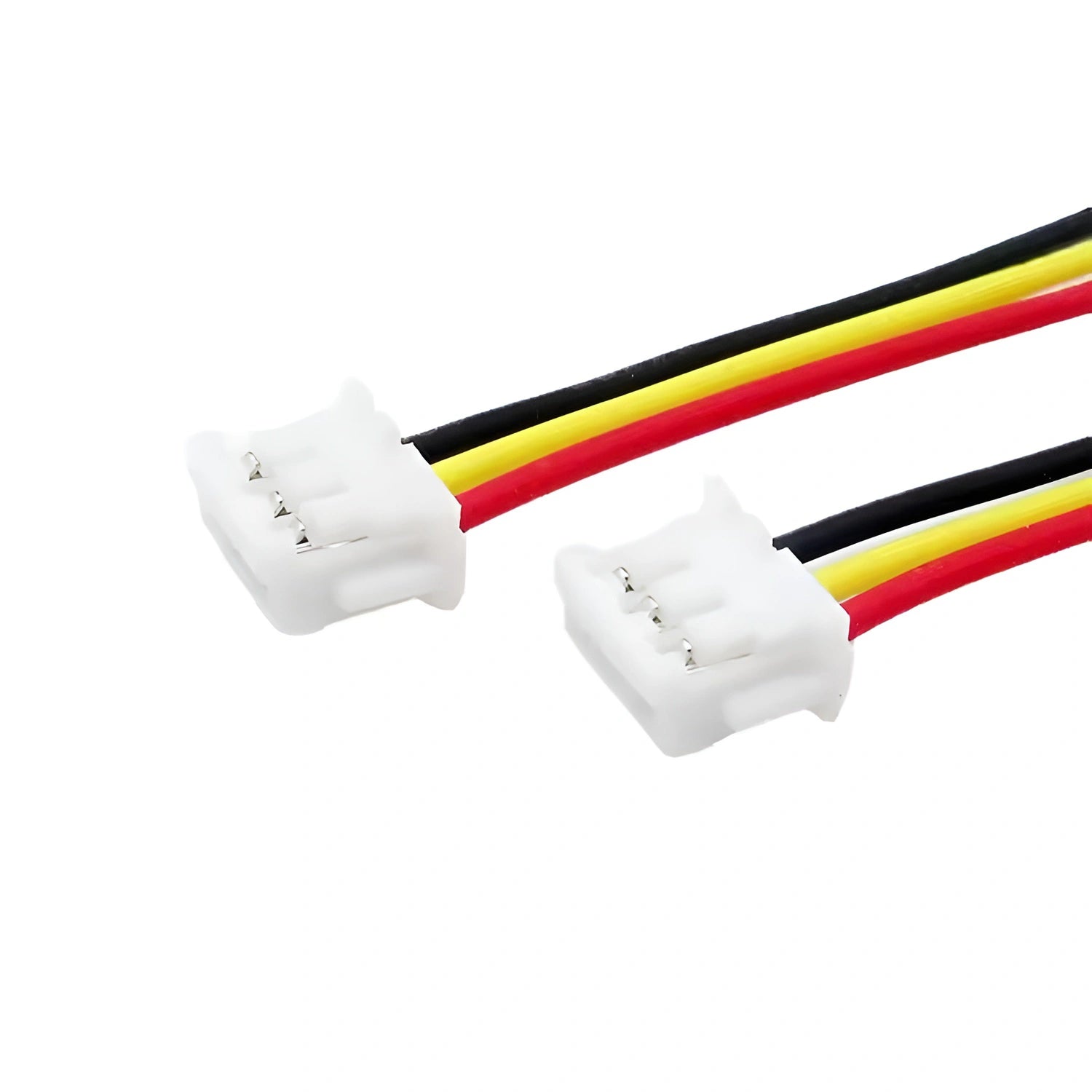

• 2 pairs of JST ZH series ZHR-3 1.5mm pitch 3-pin plastic receptacle with wires

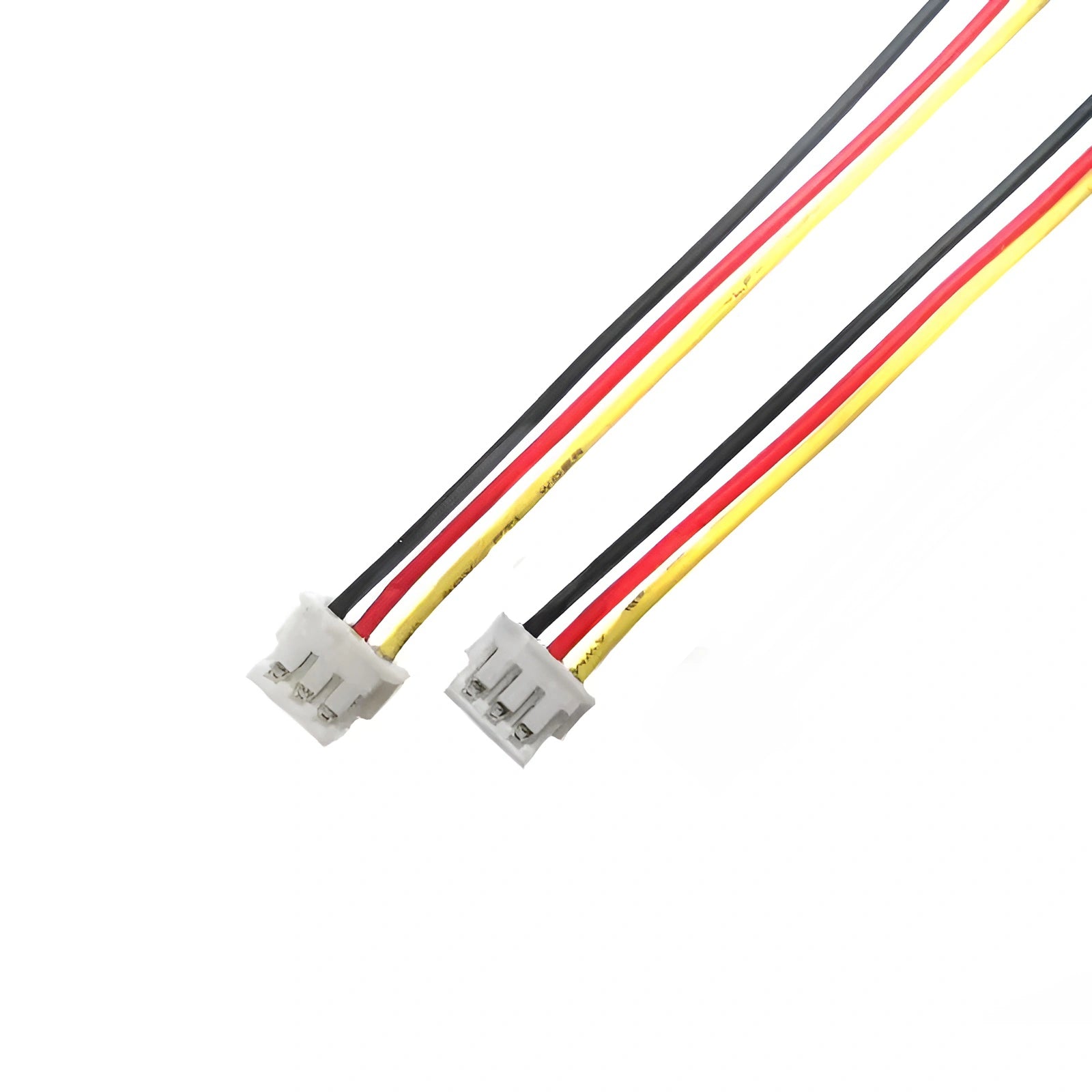

  • JST ZH series ZHR-3 1.5mm pitch 3-pin Wire Harness
1 2

JST ZH ZHR-3 1.5mm Pitch 3-Pin - Custom Wire Harness

  • Integrates a JST ZH series ZHR-3 1.5mm pitch receptacle, engineered for reliable, high-density wire-to-board signal routing in space-constrained industrial equipment.
  • Features a precise 3-pin configuration utilizing a secure friction lock mechanism, while the broader JST ZH connector series supports scalable configurations ranging from 2 to 13 pin position options.
  • Accommodates a standard discrete wire gauge range strictly specified for 26 AWG to 32 AWG, ensuring precise signal integrity and impedance control in compact electronic architectures.
  • Length: Customization available
  • Color: Customization available
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
