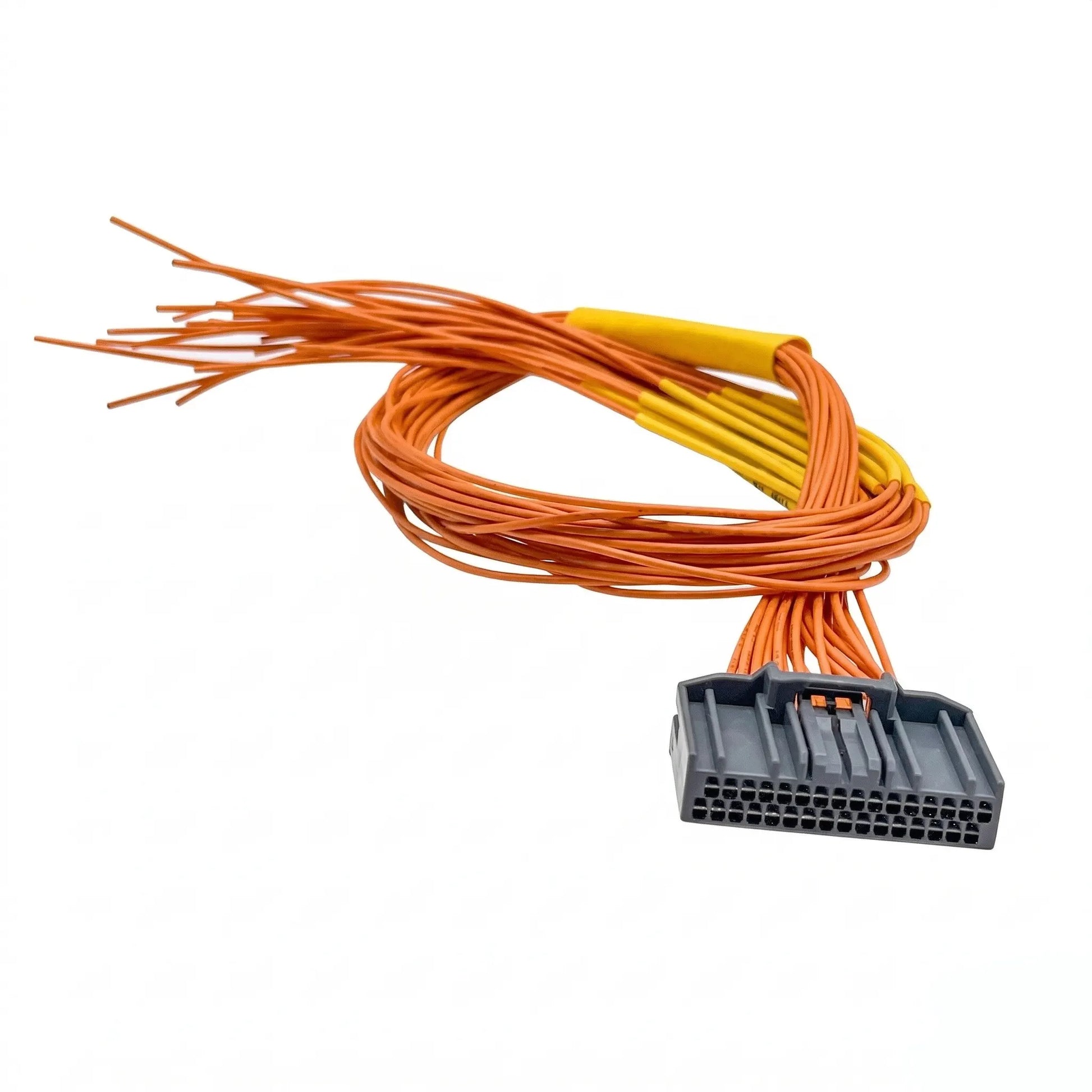

• JAE MX34 32-pin 2.2mm pitch automotive wire harness assembly

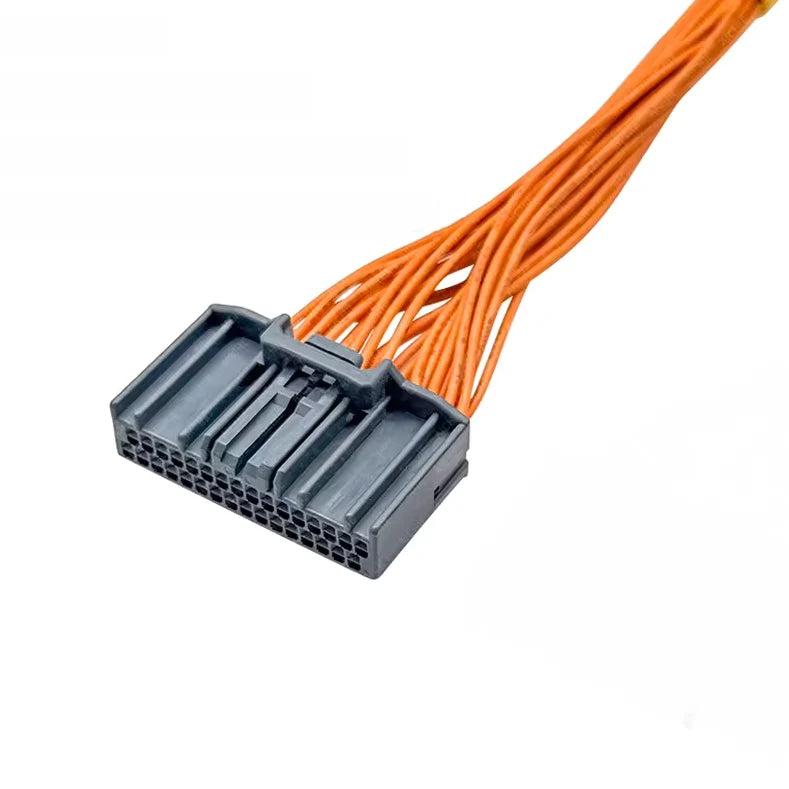

  • 32-position JAE MX34 series non-waterproof ECU interconnect with orange wire
1 2

JAE MX34 32-Pin 2.2mm Pitch - Custom Wire Harness

  • Engineered as a high-density automotive interconnect utilizing the JAE MX34 32-position receptacle (2.2mm pitch), optimized for body chassis electronics, switch clusters, and non-waterproof ECU routing.
  • Supports comprehensive architectural scalability across the JAE MX34 connector ecosystem, accommodating standard housing pin-count configurations including 8, 12, 16, 20, 24, 32, 36, and 40 positions.
  • Accommodates precision automotive-grade crimp contacts engineered for an operational discrete wire gauge range spanning AWG #22 to AWG #24, ensuring reliable current delivery and mechanical stability under thermal stress.
  • Constructed with pre-tinned contacts and an integrated mechanical locking mechanism inherent to the MX34 series design, providing a high retention force to prevent accidental unmating in high-vibration vehicular environments.
  • Utilizes strictly controlled, high-flexibility discrete wiring architectures tailored to withstand aggressive routing bends within congested automotive dashboards and cabin control panels.
