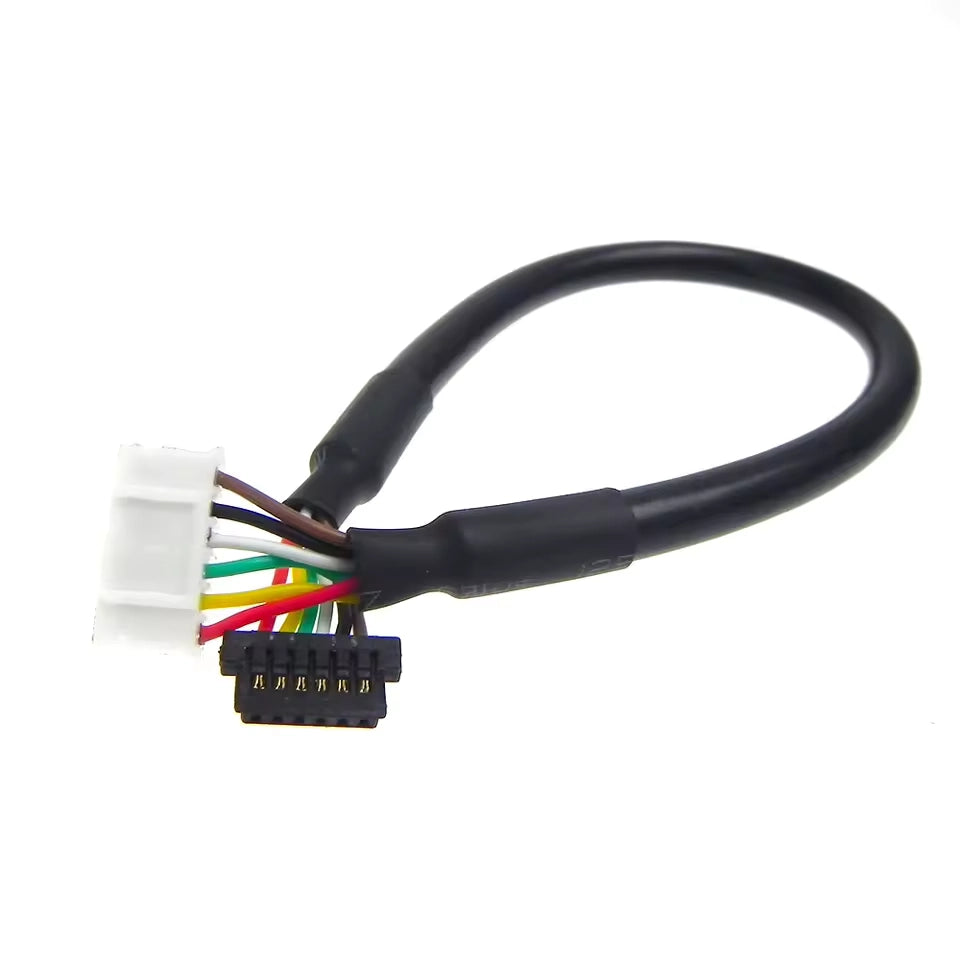

• Custom JAE FI-S to JST PH 2.0mm LVDS and backlight wire harness assembly

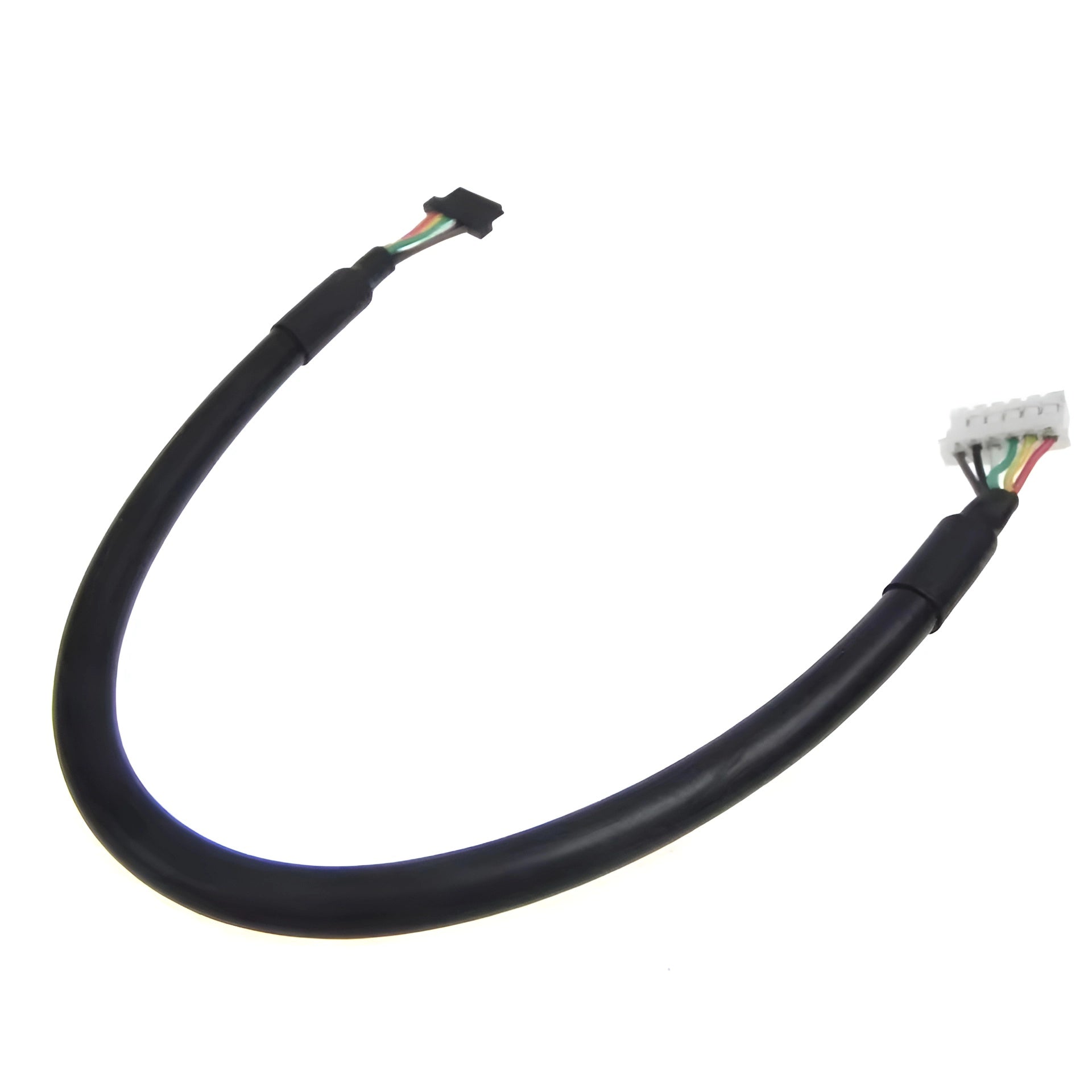

  • JAE FI-S20S 20-pin and FI-S6S 6-pin to JST PH 6-pin wire harness
1 2

JAE FI-S6S to JST PH 2.0mm 6-Pin - Custom Wire Harness

  • Engineered as a complex multi-branch logic and power interconnect, bridging a 6-position JAE FI-S6S (1.25mm pitch) with a 6-position JST PH series receptacle (2.0mm pitch).
  • The JAE FI-S series ecosystem provides highly scalable housing pin-count options encompassing 2, 6, 8, 10, 15, 20, 21, and 30 positions, accommodating precision crimp architectures with an operational discrete wire gauge range spanning AWG #28 to AWG #32.
  • The JST PH series 2.0mm pitch ecosystem, optimized for robust backlight inverter power delivery, supports a highly scalable single-row configuration spanning 2 to 16 positions, utilizing crimp contacts rated for an operational discrete wire gauge range of AWG #24 to AWG #32.
  • Optimized for hybrid Low-Voltage Differential Signaling (LVDS) data and backlight power distribution, utilizing tightly controlled 100-ohm twisted-pair wiring for signal integrity alongside dedicated discrete lines for stable current delivery.
  • Features the robust friction-lock retention mechanisms intrinsic to both the JAE FI-S and JST PH housing designs, engineered to guarantee secure terminal retention and prevent accidental back-out in high-vibration ruggedized industrial displays.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
