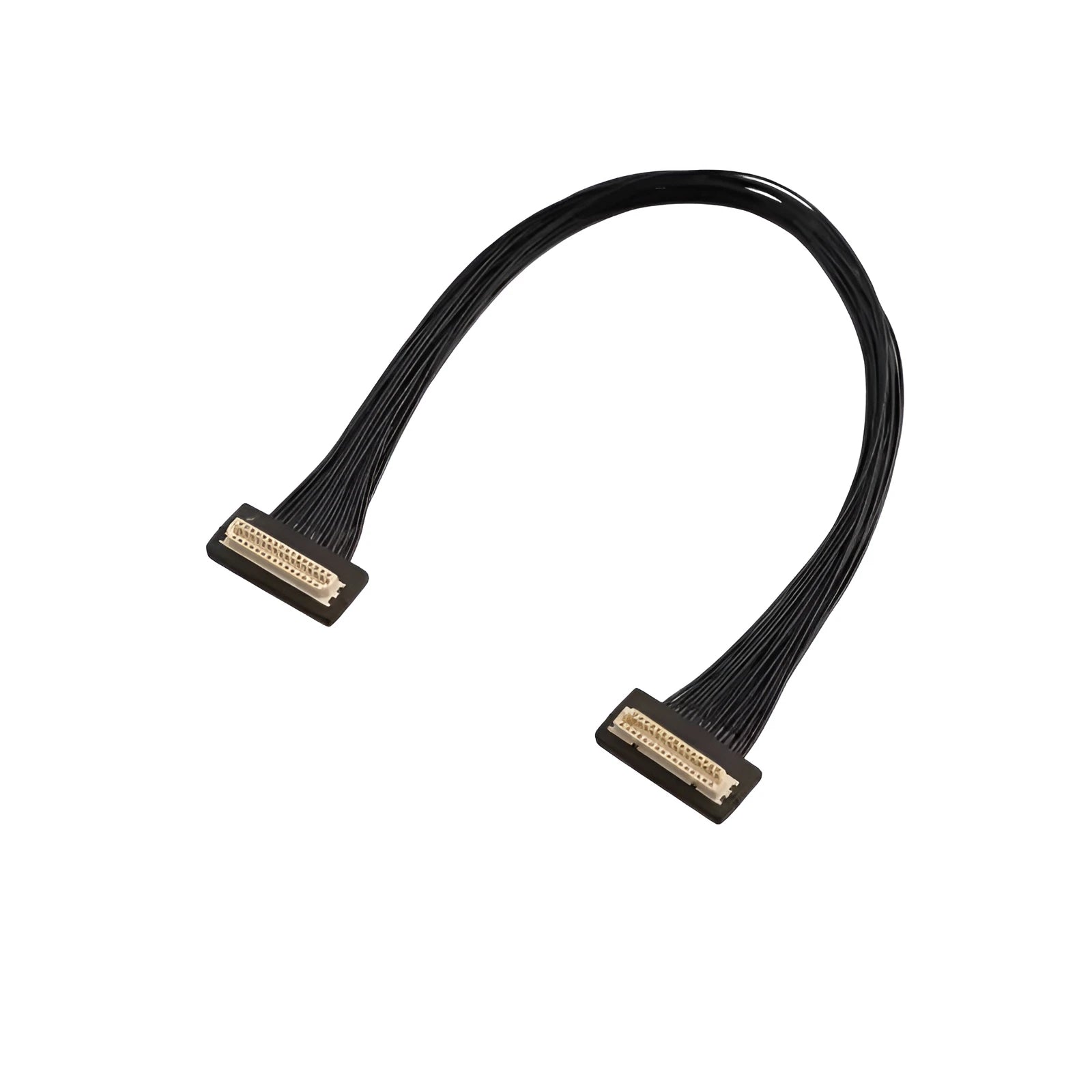

• Dual end Hirose DF9-41S-1V 41-pin female wire harness assembly

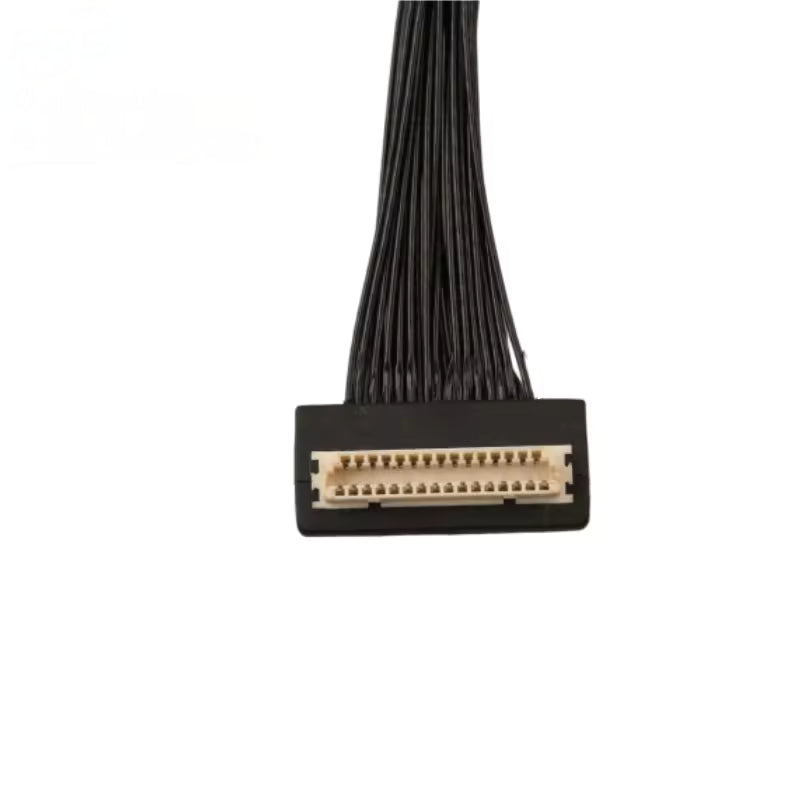

  • 41-position 1.0mm pitch Hirose DF9 VESA standard display interconnect
1 2

Hirose DF9-41S-1V 41-Pin Female Dual End - LVDS Wire Harness

  • Engineered with dual Hirose DF9-41S-1V 41-position female interfaces featuring a low-profile 1.0mm mating pitch on both terminations, optimized for VESA-standard, high-density board-to-display LVDS routing.
  • Constructed utilizing precision-routed, 100-ohm impedance-controlled twisted pair wiring to strictly maintain signal integrity and actively mitigate electromagnetic interference (EMI) across the wide 41-pin high-speed data pathway.
  • Supports extensive architectural scalability across the VESA-compliant Hirose DF9 interconnect ecosystem, with standard pin-count configurations available in 9, 11, 13, 15, 17, 19, 21, 23, 25, 31, 41, and 51 positions to meet diverse LCD panel requirements.
  • Accommodates precision discrete wire termination architectures with an operational wire gauge range spanning AWG #28 to AWG #32, supporting reliable current delivery and tight bending radii within space-constrained industrial enclosures.
  • Features the specialized trapezoidal mating interface intrinsic to the Hirose DF9 series, engineered to inherently prevent misinsertion and guarantee structural mating integrity under mechanical stress and vibration.
