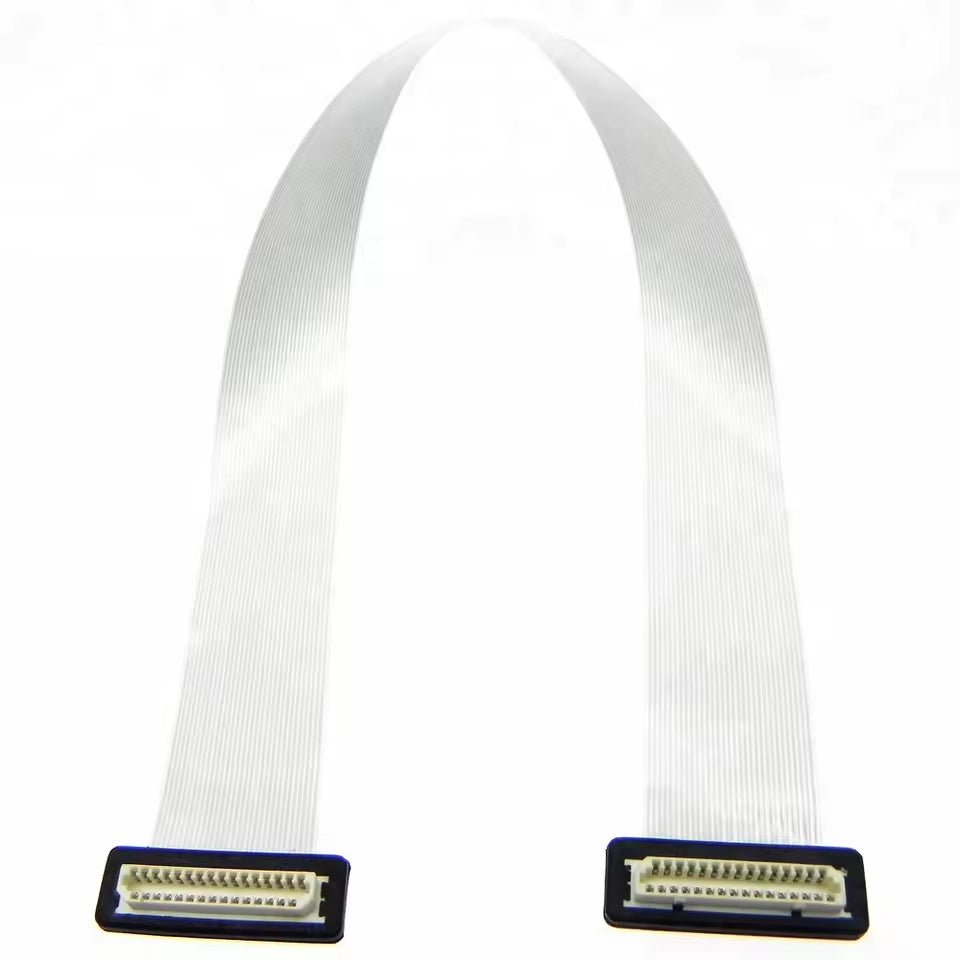

• Dual end Hirose DF9-31P female 31-pin flat ribbon cable assembly

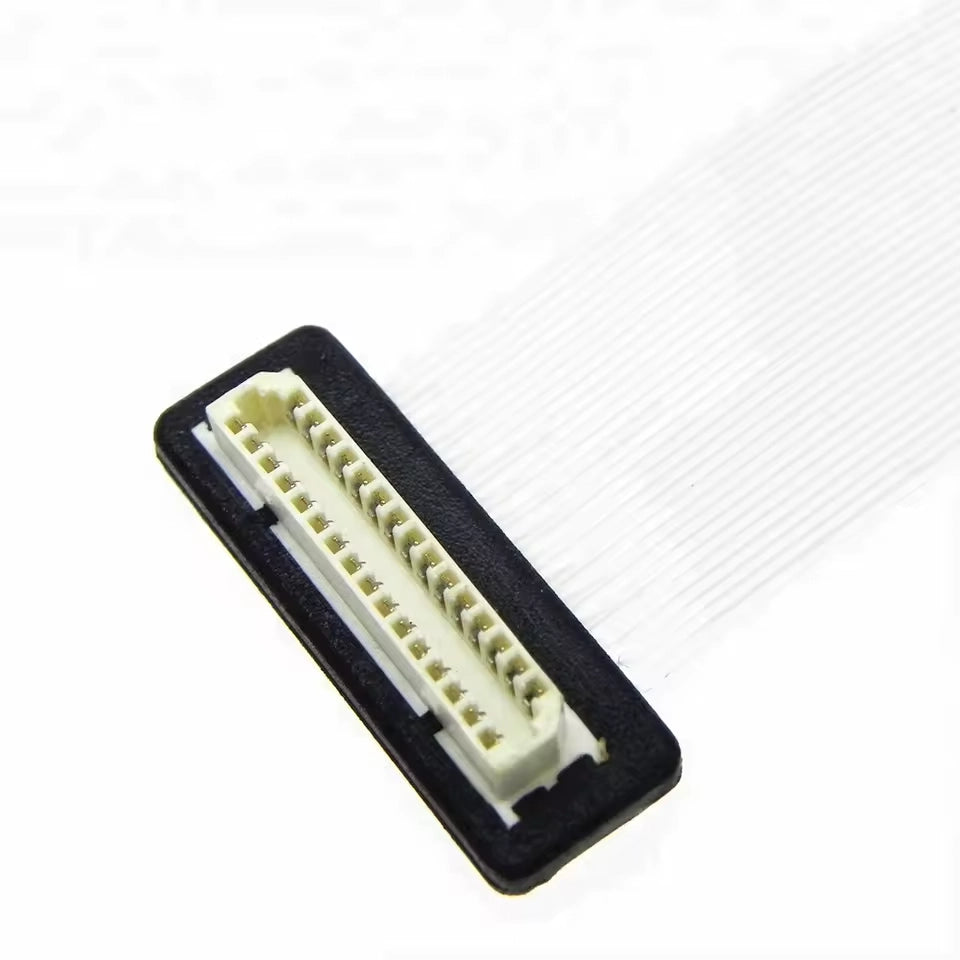

  • 31-position 1.0mm pitch Hirose DF9 VESA standard display interconnect
1 2

Hirose DF9-31P 31-Pin Female Dual End - Flat Ribbon Cable Assembly

  • Engineered with dual Hirose DF9 31-position female receptacles integrated onto a continuous flat ribbon architecture, delivering a low-profile 1.0mm mating pitch optimized for VESA-standard LCD board-to-display interconnects.
  • Constructed utilizing a uniform, parallel-conductor flat ribbon topology to maintain consistent signal impedance and ensure the simultaneous routing of all 31 pathways without the risk of wire cross-overs or mechanical chafing.
  • Supports extensive architectural scalability across the VESA-compliant Hirose DF9 ecosystem, with available standard pin-count configurations encompassing 9, 11, 13, 15, 17, 19, 21, 23, 25, 31, 41, and 51 positions.
  • Accommodates precision flat ribbon termination architectures with an operational discrete wire equivalent gauge range spanning AWG #28 to AWG #32, supporting tight bending radii within space-constrained industrial enclosures.
  • Features the specialized trapezoidal mating interface intrinsic to the Hirose DF9 series, engineered to inherently prevent misinsertion and guarantee structural mating integrity under mechanical stress.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
