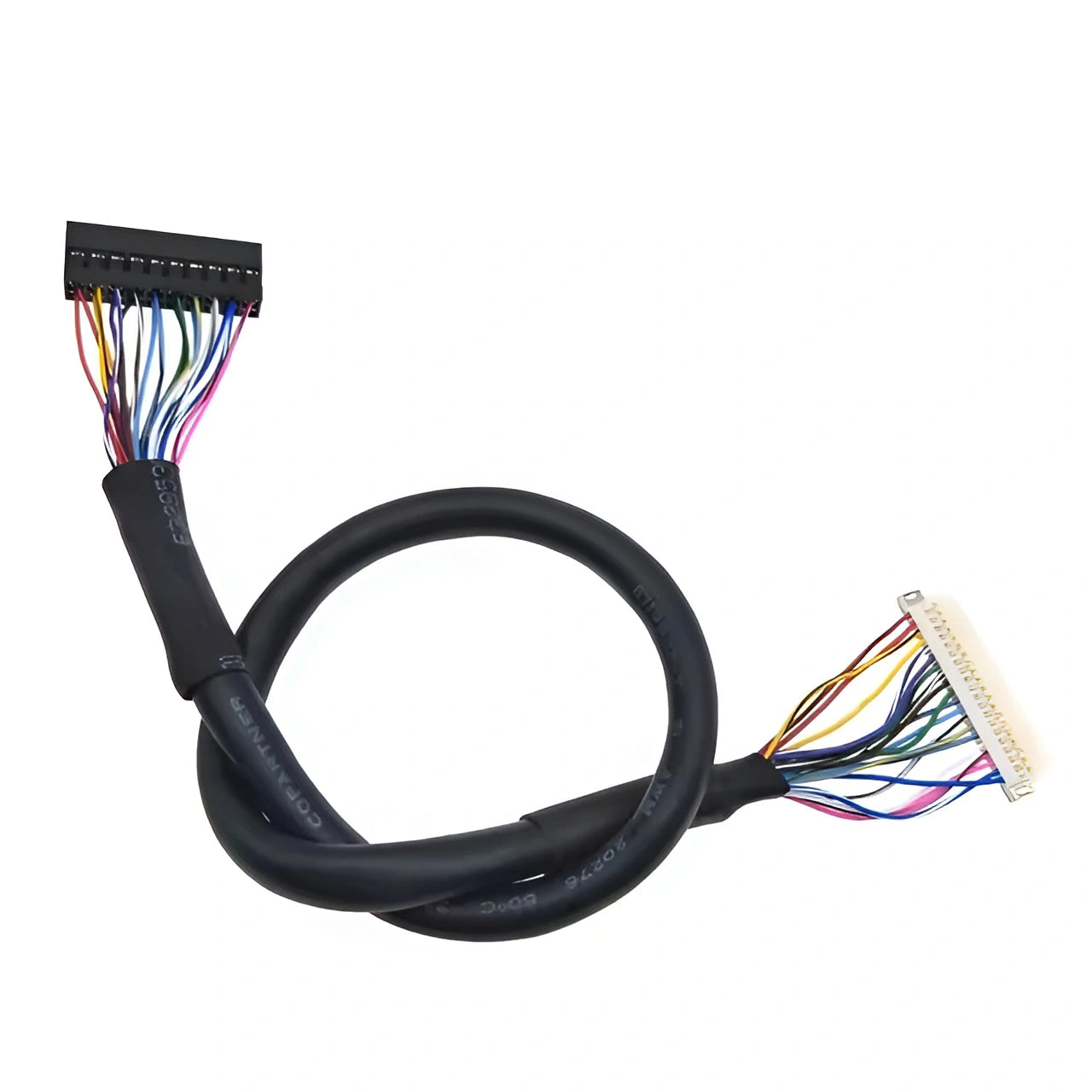

Hirose DF19G-20S-1C to DuPont 2.0mm Pitch 20-Pin - LVDS Wire Harness

  • Engineered as an asymmetrical logic-to-display bridge, securely terminating a 20-position Hirose DF19G-20S-1C enhanced-grounding receptacle (1.0mm pitch) to a 20-position DuPont-style BLD2 series dual-row housing (2.0mm pitch).
  • The Hirose DF19G interconnect ecosystem features an integrated shielding ground connection to actively suppress EMI, supporting standard housing pin-count configurations encompassing 8, 14, 20, and 30 positions with crimp contacts rated for AWG #28 to AWG #32.
  • The standard 2.0mm pitch DuPont-style (BLD2) interconnect ecosystem supports broad architectural scalability with dual-row housing configurations available from 4 up to 80 positions, accommodating high-retention crimp terminals rated for an operational discrete wire gauge range of AWG #26 to AWG #30.
  • Optimized for high-speed Low-Voltage Differential Signaling (LVDS), utilizing tightly controlled twisted-pair discrete wiring mapped for strict 100-ohm differential impedance to effectively mitigate cross-talk within industrial enclosures.
  • Combines the ultra-low-profile, high-vibration friction-lock design of the Hirose DF19G interface with the rugged, modular mainboard integration capabilities of standard 2.0mm pitch industrial pin headers.
