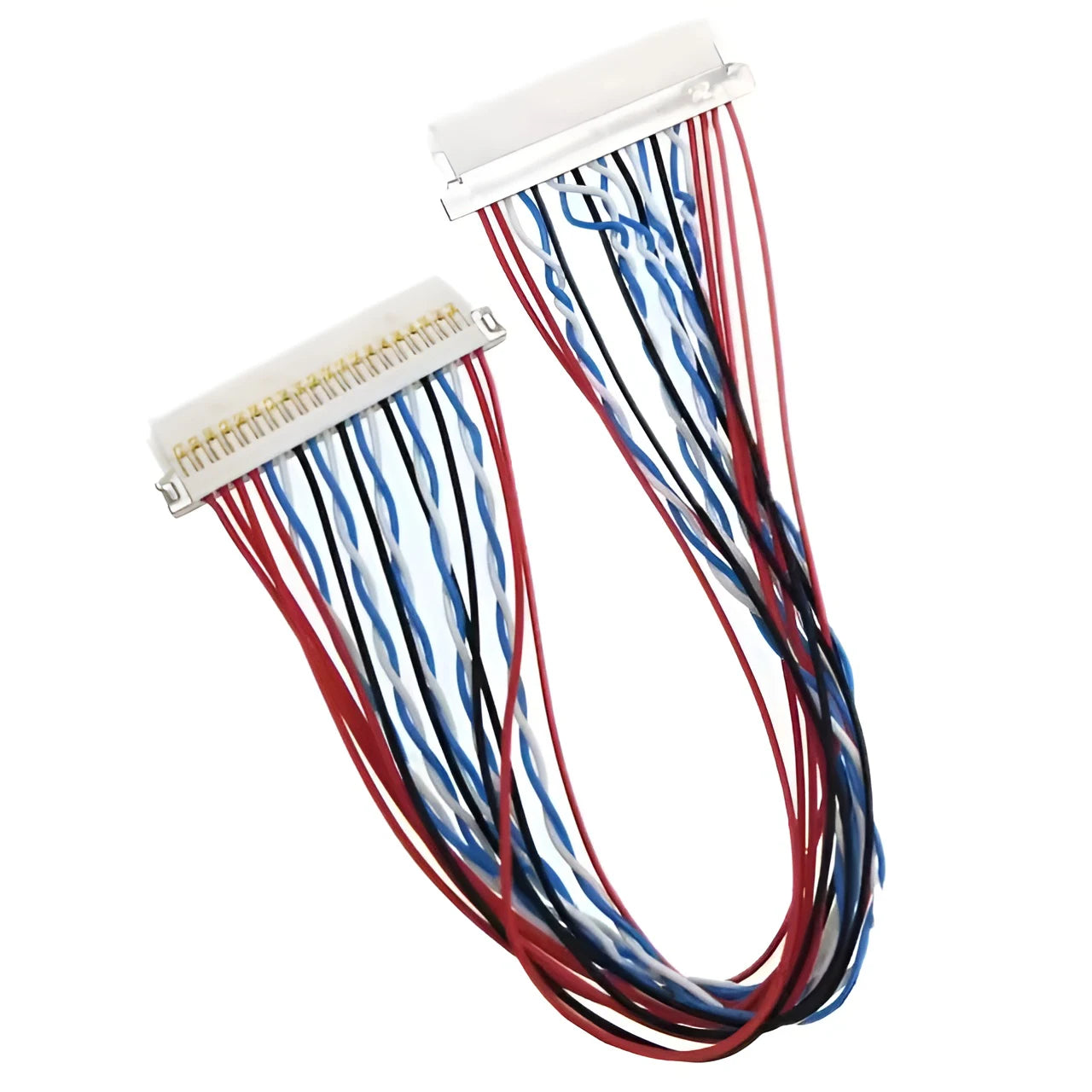

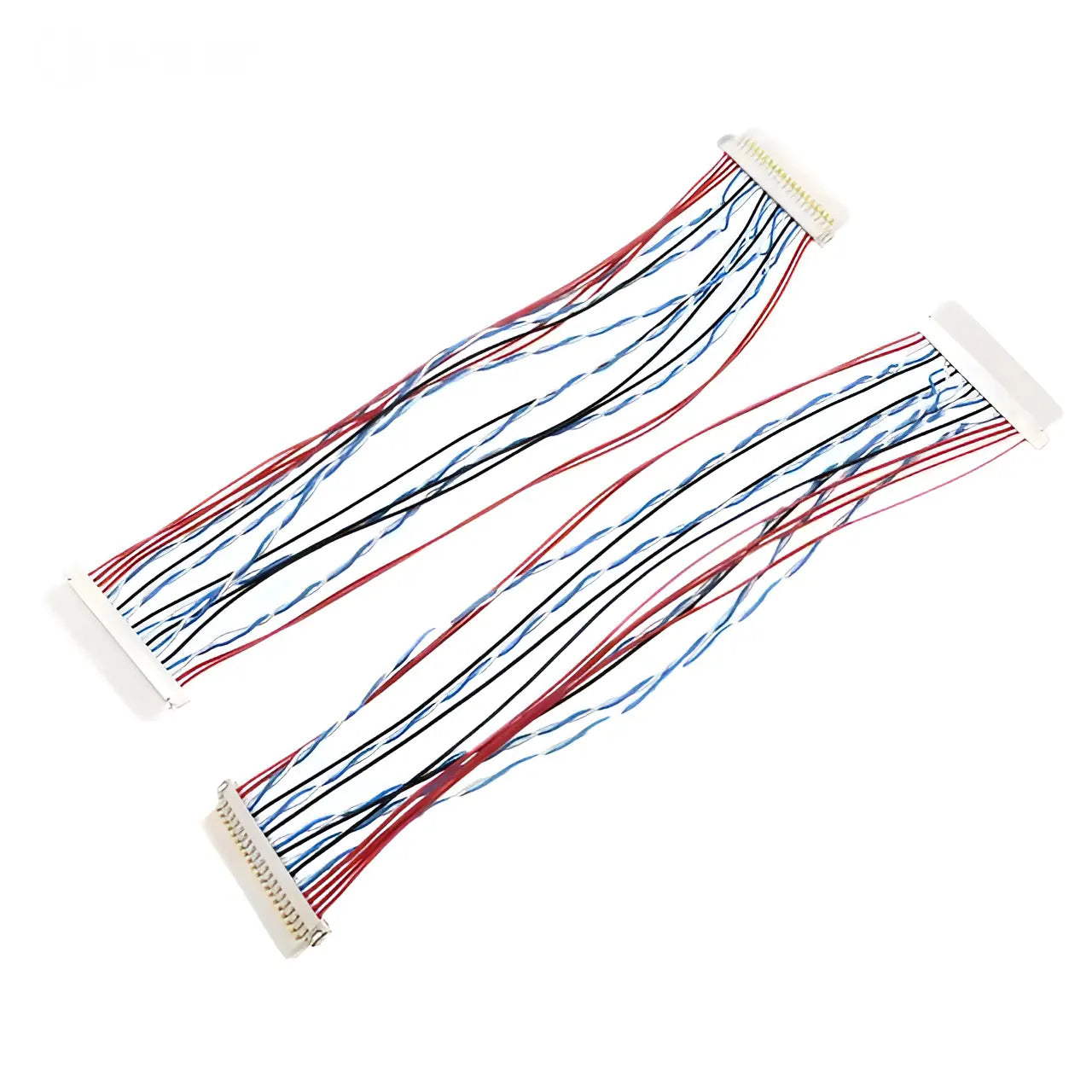

Hirose DF19-20S-1C 20-Pin Dual End - LVDS Wire Harness
- Engineered with dual Hirose DF19-20S-1C 20-position crimp sockets featuring a low-profile 1.0mm mating pitch on both terminations, optimized for high-speed board-to-display LVDS routing in thin-panel enclosures.
- Constructed utilizing precision-routed, tightly controlled 100-ohm differential impedance twisted pairs to actively suppress electromagnetic interference (EMI) and cross-talk across the dual-termination pathway.
- Supports structural scalability across the low-profile Hirose DF19 interconnect ecosystem, with available standard housing pin-count configurations encompassing 8, 14, 20, and 30 positions to meet diverse LCD panel integration requirements.
- Accommodates highly reliable phosphor-bronze miniaturized crimp contacts rated for an operational discrete wire gauge range spanning AWG #28, #30, and #32, ensuring optimal mechanical stability and consistent signal delivery.
- Features the unified mechanical friction-lock system intrinsic to the DF19 series architecture, engineered to prevent accidental unmating and back-out under shock and vibration in ruggedized OEM displays.
Can't find what you need?
We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.
Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?
To provide an accurate quote and lead time, please provide:
- Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
- Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
- Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?
Yes. We offer variety of alternative components.
We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.
How do you ensure quality control for custom cable assemblies?
Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:
- 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
- Pull Force Testing: Verifying crimp strength.
- Visual Inspection: Checking for cosmetic defects and label accuracy.
- Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
