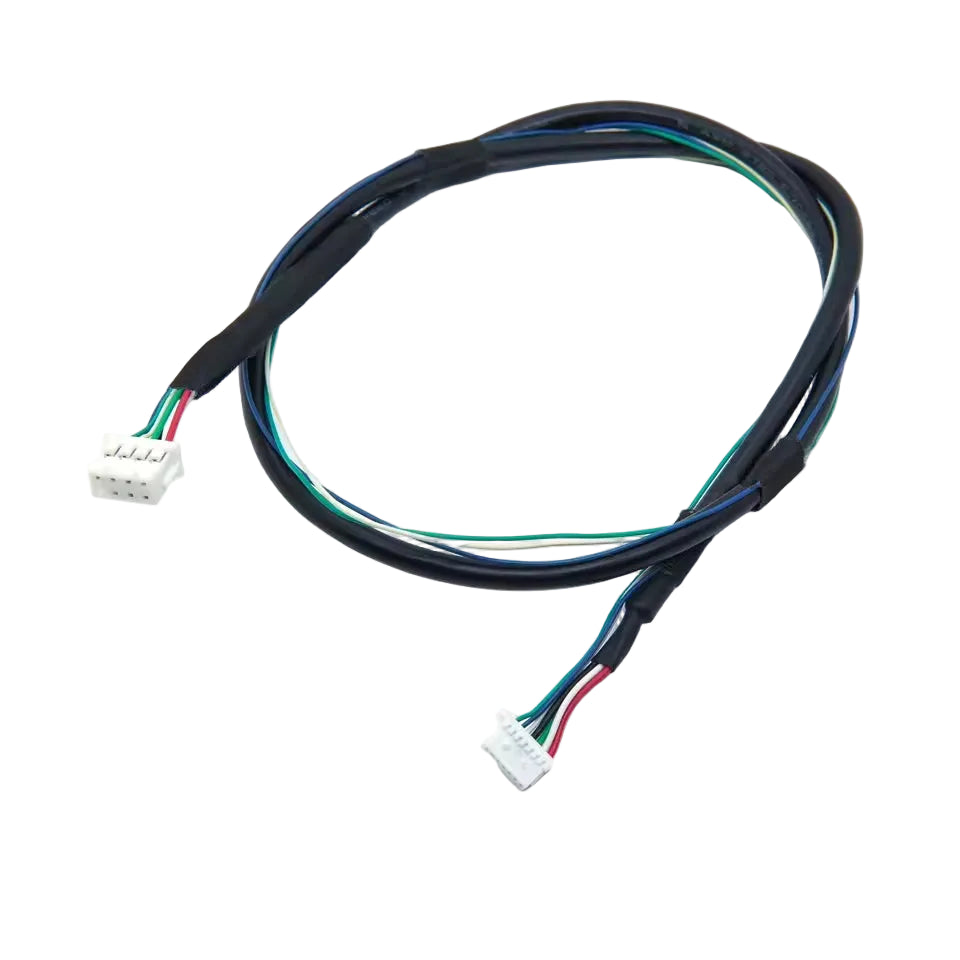

• Hybrid wire harness assembly featuring Hirose DF11-8DS-2C and JST 1.0mm pitch receptacles

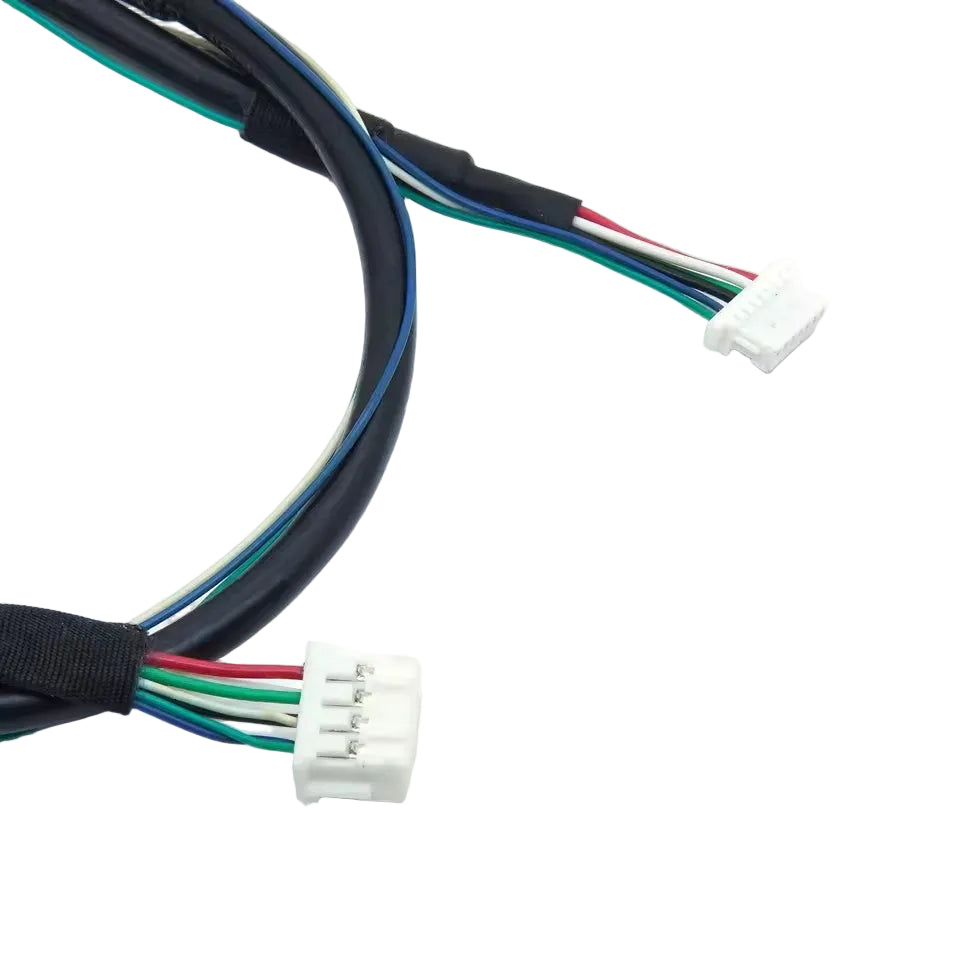

  • Cross-series signal routing harness with 8-circuit DF11 and 7-circuit JST interconnects
1 2

Hirose DF11 8-Pin to JST 1.0mm Pitch 7-Pin - Custom Wire Harness

  • Integrates a dual-row Hirose DF11-8DS-2C 2.00mm pitch 8-pin receptacle and a single-row JST 1.0mm pitch (SH series equivalent) 7-pin receptacle, engineered for high-density, cross-series signal routing between distinct PCB modules.
  • Features a custom 8-to-7 pin hybrid routing configuration, while the broader Hirose DF11 series supports 4 to 32 dual-row positions and the JST 1.0mm connector family provides scalable single-row options ranging from 2 to 20 pin positions.
  • Accommodates a standard overlapping discrete wire gauge range strictly specified for 28 AWG to 30 AWG, ensuring precise electrical continuity and secure crimp retention across disparate microelectronic interfaces.
  • Length: Customization available
  • Color: Customization available
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
