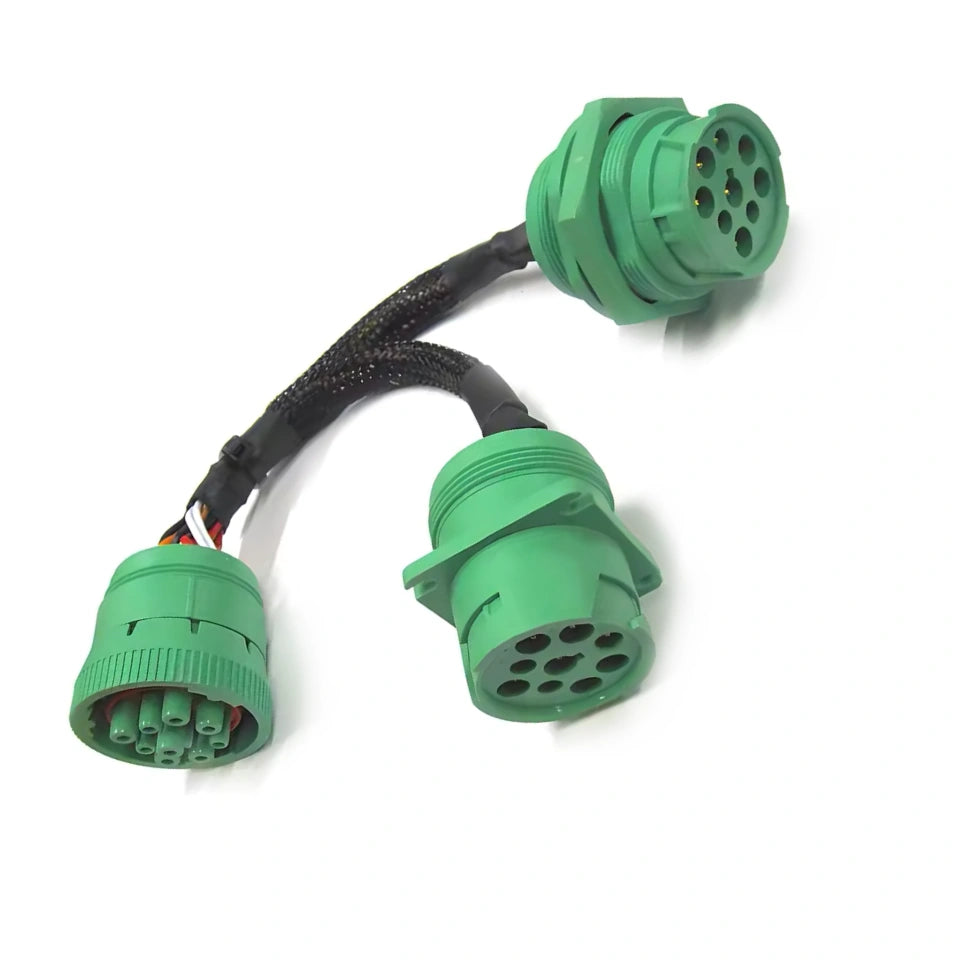

Deutsch Type 2 9-Pin J1939 1 Male to 2 Female - Custom Wire Harness

  • One-to-two Y-harness terminating one Deutsch HD10-9-1939P Type 2 male connector to two Deutsch HD10-9-1939S Type 2 female receptacles, conforming to the SAE J1939-13 off-board diagnostic connector standard.
  • Built on shielded twisted-pair CAN cable for the CAN_H/CAN_L lines and discrete 14–18 AWG stranded power and ignition wires for battery, ground, and key-on circuits, with a Deutsch HD-series operating temperature range of -40 °C to +125 °C.
  • Wired to the full SAE J1939-13 Type 2 pinout — A: Battery (-), B: Battery (+), C: CAN_H, D: CAN_L, E: CAN shield, F: J1708 (-), G: J1708 (+), H: ignition signal, J: OEM/proprietary — supporting 500 kbit/s and 250 kbit/s CAN data rates as well as legacy J1708/J1587 traffic. The Type 2 (green) housing keying physically prevents accidental mating with Type 1 (black) 250-kbit/s-only connectors. The Deutsch HD10 housing is sealed to IP67 (IEC 60529), uses a positive bayonet-lock coupling rated for high-vibration heavy-duty service, and meets UL 94 V-0 housing flammability.
  • Custom branch lengths, overall length, wire gauge, insulation style (TXL, GXL, GPT per SAE J1128, or UL 1015 / UL 1028), shield grounding scheme (single-end vs. dual-end drain), inline fusing, and overlay protection (expandable braid, convoluted loom, DR-25) available on request — submit a quote request for non-stock configurations or for builds that require an inline 120 Ω termination resistor.
