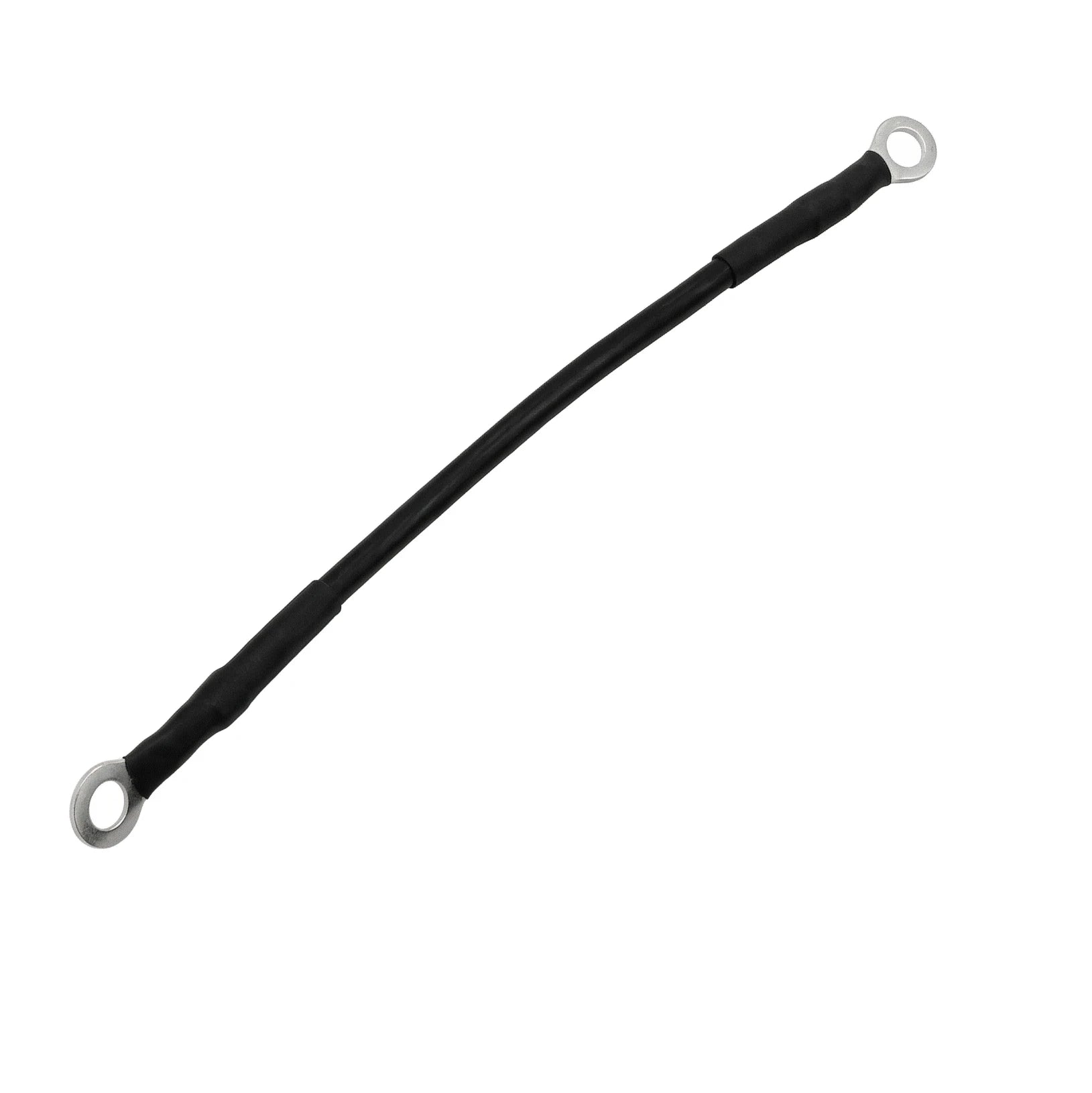

• 95mm dual-ended M3 ring terminal wire harness

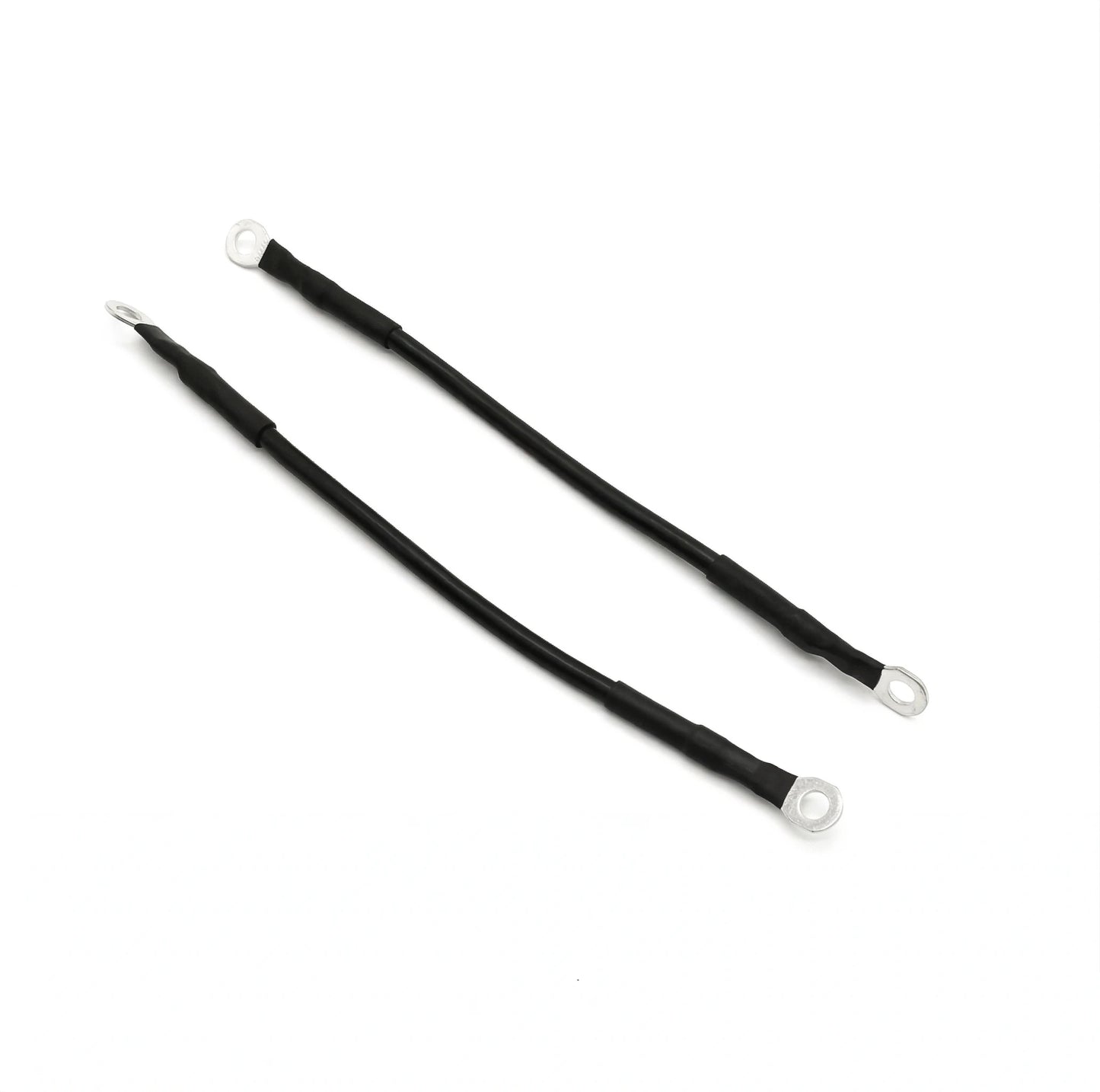

  • Double-ended discrete wire jumper with M3 circle terminals
1 2

95mm Dual-Ended M3 Ring Terminal - Custom Wire Harness

  • Terminal Specification: Engineered with a double-ended (dual-head) configuration featuring M3 inside-diameter ring terminals, precision-stamped for secure mechanical mounting to standard M3 threaded studs or grounding posts.
  • Conductor Accommodation (AWG): Architecture supports the integration of standard stranded copper conductors ranging from 22 AWG up to 16 AWG, scaled specifically for low-to-medium current internal chassis bridging.
  • Dimensional Profile: Features a precise 95mm overall assembly length, optimized for short-run, point-to-point bridging in compact enclosures and restricted PCB-to-chassis grounding applications.
  • Termination Methodology: Utilizes high-pressure, gas-tight mechanical crimping at both terminal barrels, mitigating oxidation and ensuring optimal low-resistance power transfer across high-vibration operational cycles.
  • Routing Architecture: Configured as a discrete wire jumper harness designed for rapid deployment in industrial control panels, electromechanical relays, and telecommunications equipment.
View full details
Get Free Quote for customization

Can't find what you need?

We specialize in custom sourcing and manufacturing. Upload your spec sheet or drawing, and our engineering team will provide a quote within 24 hours.

Manufacturing of unlisted custom assemblies
Support for complex cable & wire harness assemblies
Rapid prototyping for new designs
Equivalent alternatives for obsolete parts
Same-day engineering review
Request Custom Quote
What information do you need to provide a quote for a custom wire harness?

To provide an accurate quote and lead time, please provide:

  1. Technical Drawing or Diagram: Showing pinouts, lengths, and tolerances.
  2. Bill of Materials (BOM): Listing specific connectors (MPN) and wire gauges (AWG).
  3. Estimated Annual Usage (EAU): Helping us optimize pricing for your volume. Note: If you do not have a formal drawing, our engineering team can help create one based on your physical sample.
Can you suggest cost-saving alternatives for expensive connectors (e.g., TE, Molex, JST)?

Yes. We offer variety of alternative components.

We have extensive supply chain relationships in Taiwan and can suggest"Functionally Equivalent"alternatives that are fully compatible with major brands like TE, Molex, or JST but at a significantly lower cost. We will provide datasheets and samples of the alternative components for your approval before production.

How do you ensure quality control for custom cable assemblies?

Every single cable assembly undergoes rigorous testing before leaving our Taiwan facility. Our standard QC process includes:

  • 100% Continuity Testing: Ensuring no opens, shorts, or miswires.
  • Pull Force Testing: Verifying crimp strength.
  • Visual Inspection: Checking for cosmetic defects and label accuracy.
  • Hi-Pot Testing: Available upon request for high-voltage applications to ensure insulation integrity.
