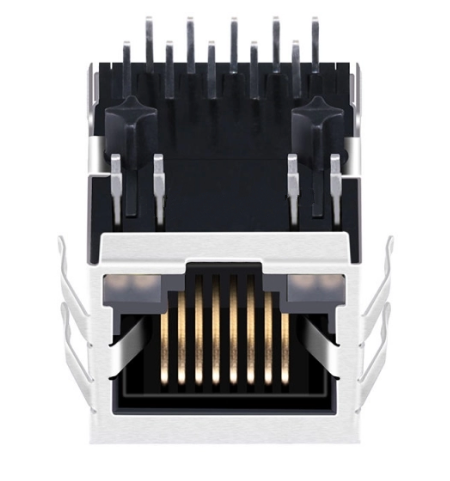

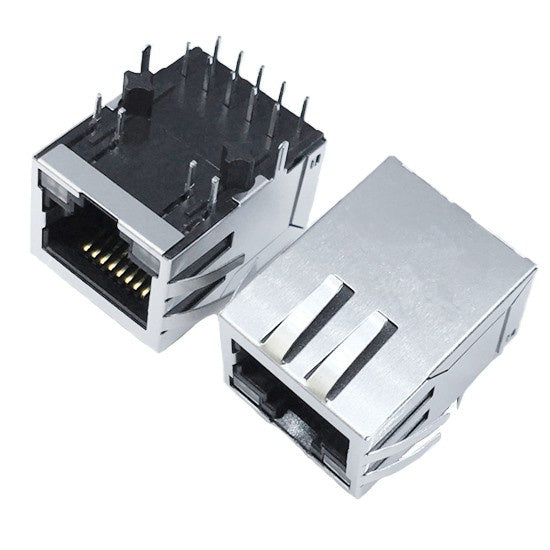

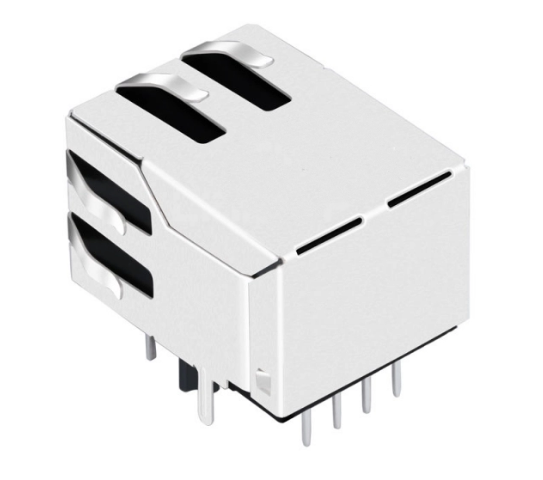

TW5123G5NL, 10/100 Base Ethernet RJ45 con transformador Pestaña Hacia Abajo Verde y Amarillo/ Verde y Amarillo Led

  • Compatible con
    XFMRS:XFATM9-CLUX1-4MS
  • El dispositivo de alto rendimiento admite velocidades de 10/100 Base-T
  • Cumple con múltiples estándares de la industria, lo que garantiza un uso confiable y eficiente
  • Los precios oscilan entre $0.50 y $3.00 USD, dependiendo de la cantidad de pedidos y las especificaciones, y hay descuentos por volumen disponibles para pedidos de gran volumen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver todos los detalles

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
LED Green&Yellow/ Green&Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 0.626/ 15.90
Product Height (Inches/mm) 0.528/ 13.40
Temperature 0℃ ~ 70℃
Compatible Brands XFMRS

Related jacks

Same family, different latch, LED or plating option.

Alternativas Rentables a las Principales Marcas de Jacks RJ45

¿Se enfrenta a largos plazos de entrega o altos costos de las principales marcas de conectores? Ofrecemos reemplazos de alta calidad y directos para jacks modulares estándar de TE, Molex, Amphenol y Wurth. Nuestros conectores coinciden con las huellas estándar de la industria y las especificaciones de rendimiento a un precio más competitivo.

Desde Flash, 3µ", 6µ", 15µ", 30µ", hasta 50µ" de baño de oro
Comparta el dibujo para obtener una coincidencia equivalente
Cortos plazos de entrega y fabricación constante en Taiwán
100% probado para resistencia de contacto e integridad de aislamiento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the XFMRS XFATM9-CLUX1-4MS?
The TW5123G5NL from TeleWire Technology cross-references to the XFMRS XFATM9-CLUX1-4MS and to LINK-PP LPJ4012G4NL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW5123G5NL replace?
The TW5123G5NL cross-references to XFMRS XFATM9-CLUX1-4MS; XFMRS XFATM9-CLxu1-4MS, and to LINK-PP LPJ4012G4NL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW5123G5NL as a second source?
Request a sample of the TW5123G5NL and the mechanical drawing from TeleWire Technology, then check the footprint against the XFMRS XFATM9-CLUX1-4MS on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
