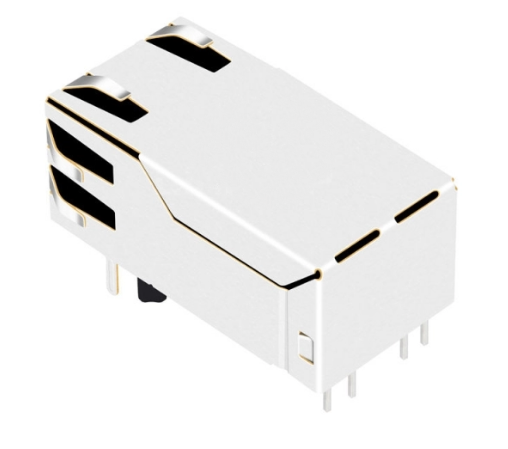

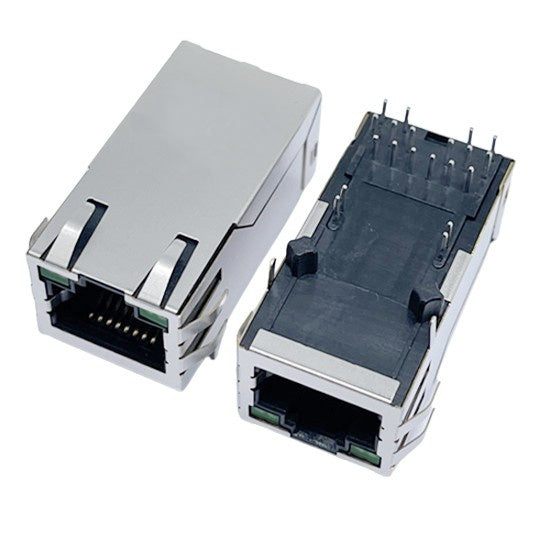

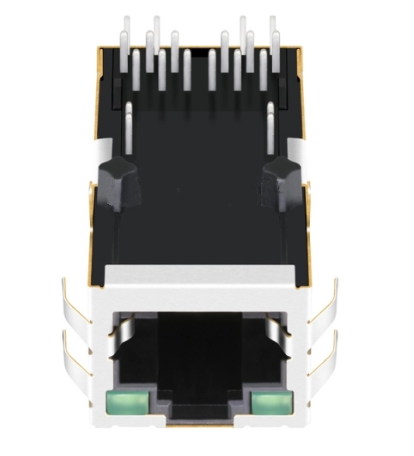

TW7175AWNL, 1000 Base Gigabit RJ45 med magnetik med PoE+ Tab Up med grön/grön LED

  • Kompatibel med
    BelFuse: 0826-1G1T-GH-F
  • Högpresterande enhet som stöder hastigheter på 10/100/1000 Base-T
  • Uppfyller flera branschstandarder, vilket säkerställer tillförlitlig och effektiv användning
  • Perfekt för Smart Home, Fieldbus-system och spelkontroll
  • Priser varierar från 0,50 USD till 3,00 USD beroende på orderkvantitet och specifikationer, och volymrabatter finns tillgängliga för stora ordervolymer

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Visa alla uppgifter

Product Specifications

RJ Type 12P8C(RJ45)
Ports 1x1
Speed 10/100/1000 Base-T
Latch Type Up
LED Green/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE+
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.319/ 33.50
Product Width (Inches/mm) 0.650/ 16.50
Product Height (Inches/mm) 0.531/ 13.50
Temperature -40℃ ~ 85℃
Compatible Brands Belfuse

Related jacks

Same family, different latch, LED or plating option.

Kostnadseffektiva alternativ för stora märken av RJ45-uttag

Står du inför långa ledtider eller höga kostnader från stora kontakttillverkare? Vi erbjuder högkvalitativa, direkt utbytbara ersättningar för standard modulära uttag från TE, Molex, Amphenol och Wurth. Våra kontakter matchar industristandard fotavtryck och prestandaspecifikationer till ett mer konkurrenskraftigt pris.

Från Flash, 3µ", 6µ", 15µ", 30µ", till 50µ" guldplätering
Dela ritningen för att få en motsvarande matchning
Korta ledtider och konsekvent tillverkning i Taiwan
100% testade för kontaktresistans och isoleringsintegritet
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse 0826-1G1T-GH-F?
The TW7175AWNL from TeleWire Technology cross-references to the Bel Fuse 0826-1G1T-GH-F and to LINK-PP LPJK6064AWNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW7175AWNL be built to a different configuration?
Yes. The standard TW7175AWNL ships with Green/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Bel Fuse 0826-1G1T-GH-F.
How do I qualify the TW7175AWNL as a second source?
Request a sample of the TW7175AWNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse 0826-1G1T-GH-F on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
