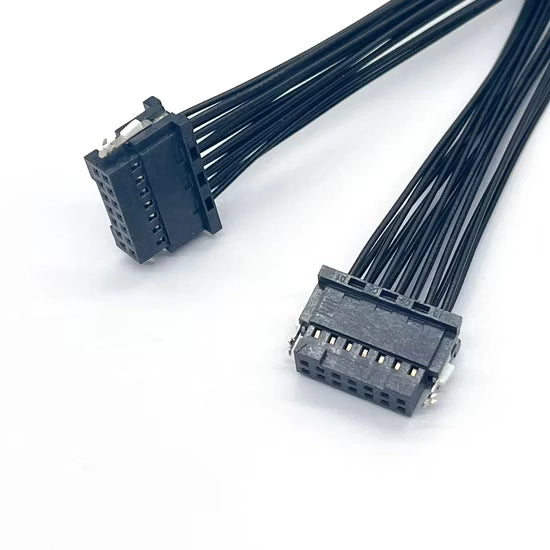

• Samtec ISD2-07-D-M 2.00mm pitch 14-pin wire harness assembly

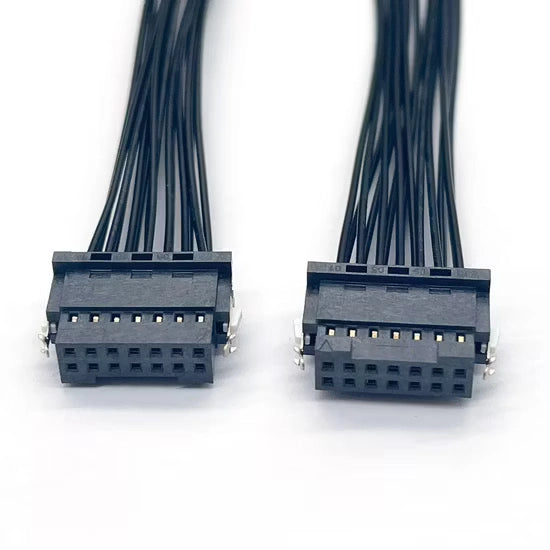

  • Samtec ISD2 14-pin discrete wire harness with metal retention latch
1 2

Samtec ISD2-07-D-M 2.00mm Pitch 14-Pin Tiger Eye™ - Custom Wire Harness

  • Engineered with the Samtec ISD2-07-D-M 14-position (2x7) double-row socket housing featuring a 2.00mm (0.0787") mating pitch, optimized for high-reliability, micro-rugged wire-to-board applications.
  • Utilizes the exceptionally robust Samtec Tiger Eye™ multi-finger beryllium copper (BeCu) contact architecture, ensuring continuous signal integrity and preventing micro-fretting under severe industrial shock and vibration.
  • Supports broad architectural scalability across the Samtec ISD2 2.00mm double-row ecosystem, with available housing configurations scaling from 4 up to 100 total positions (2 to 50 positions per row).
  • Accommodates precision CC09 series discrete wire crimp contacts featuring an operational wire gauge range spanning AWG #22 to AWG #30, ensuring superior mechanical stability and reliable power delivery in compact routing environments.
  • The "-M" configuration designates an integrated metal retention latch mechanism, providing a high mating retention force to inherently prevent accidental unmating and contact deformation in ruggedized OEM deployments.
